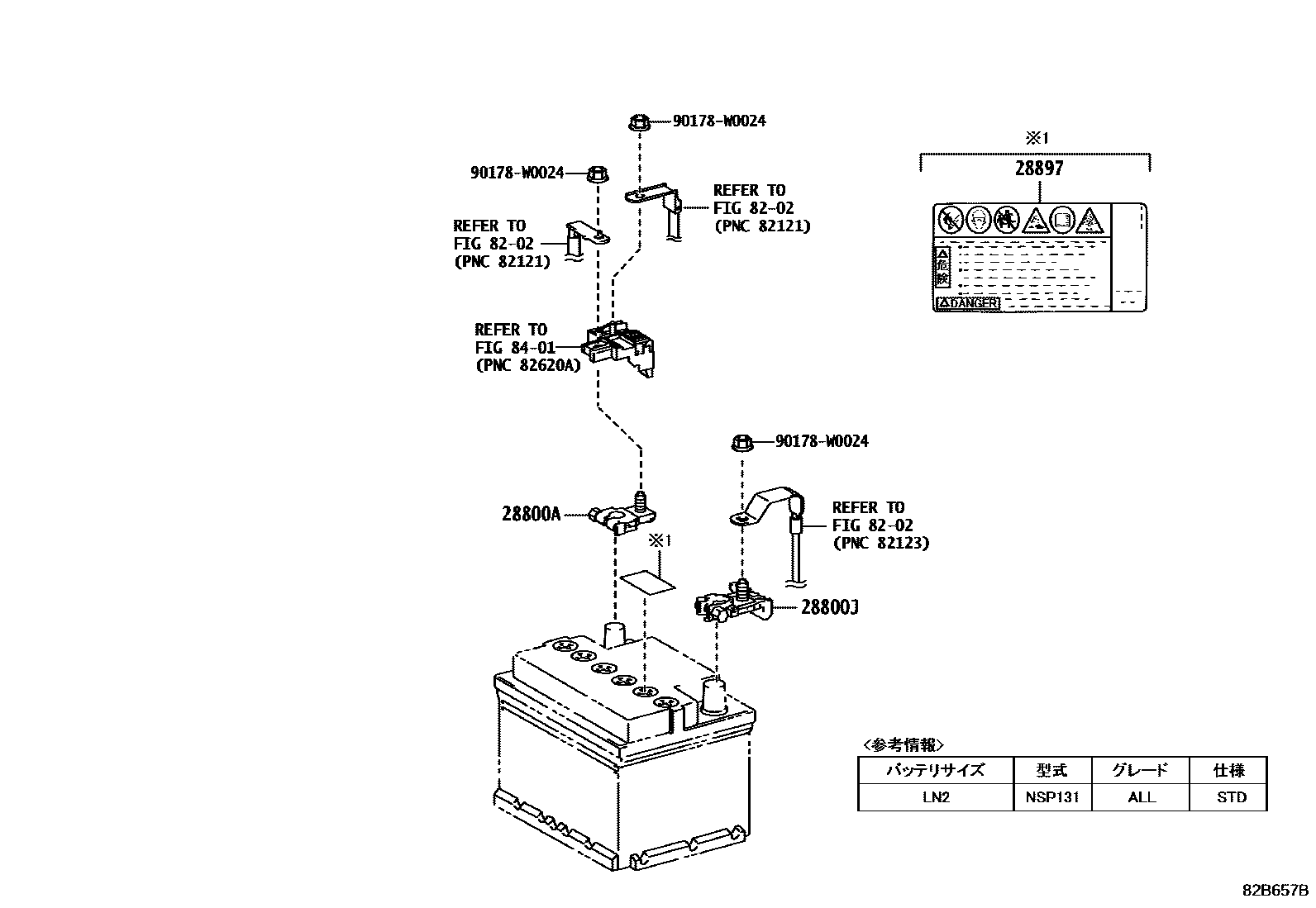

BATTERY & BATTERY CABLE

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2ZRFE..NSP131201711

28800JTERMINAL, BATTERY NEGATIVE

main82675-52090i2ZRFE..NSP131201711

28897PLATE, BATTERY CAUTION

main28897-50020i2ZRFE..NSP131201711

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90178W0024

main90178-W0024

6 parts on this diagram · 1 diagram in section
