SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

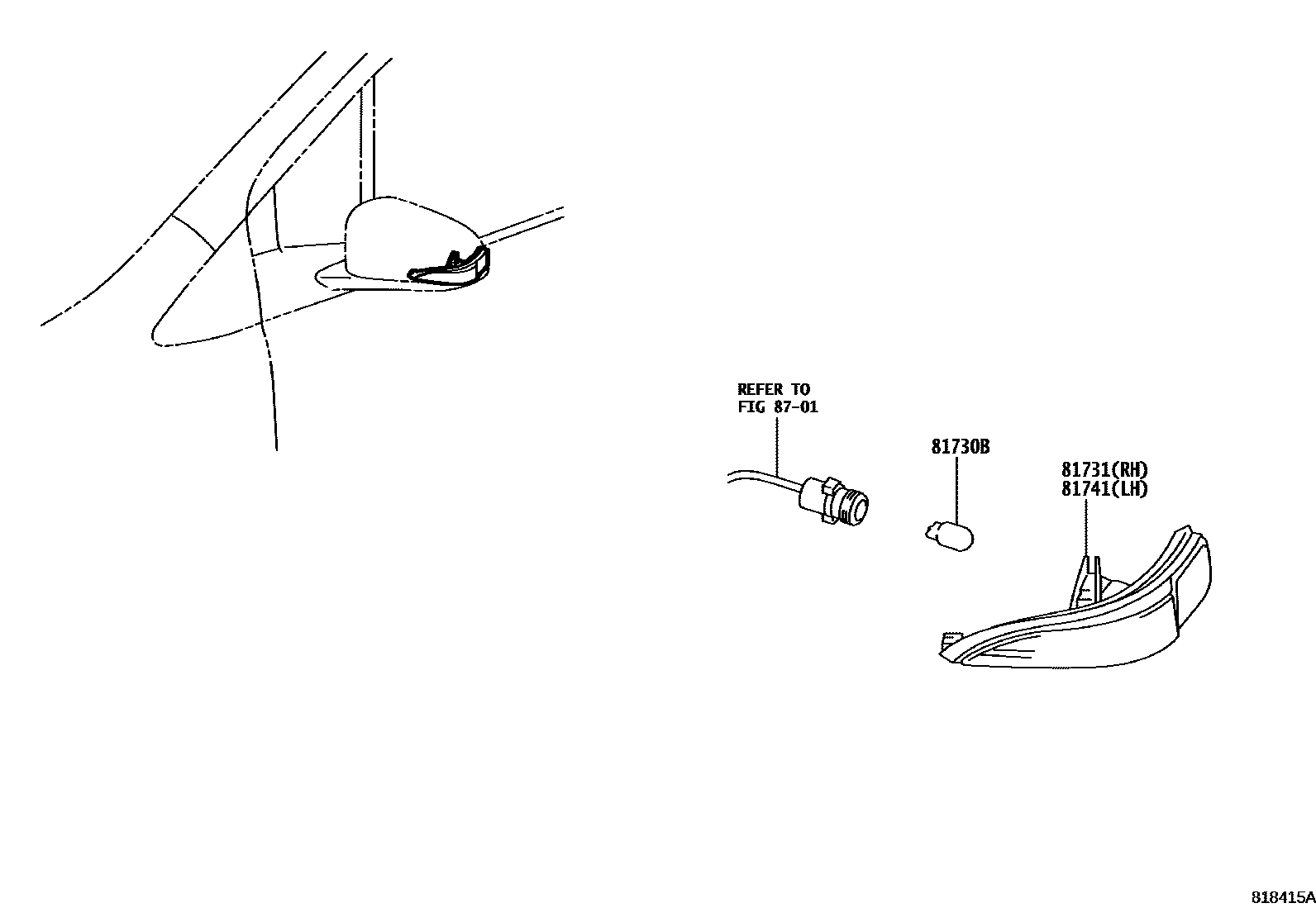

Parts diagram

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main90981-WF010×2i201711

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-0D080i201711

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81741-0D020i201711

8701MIRROR

→ Go to FIG 87-01

4 parts on this diagram · 1 diagram in section
