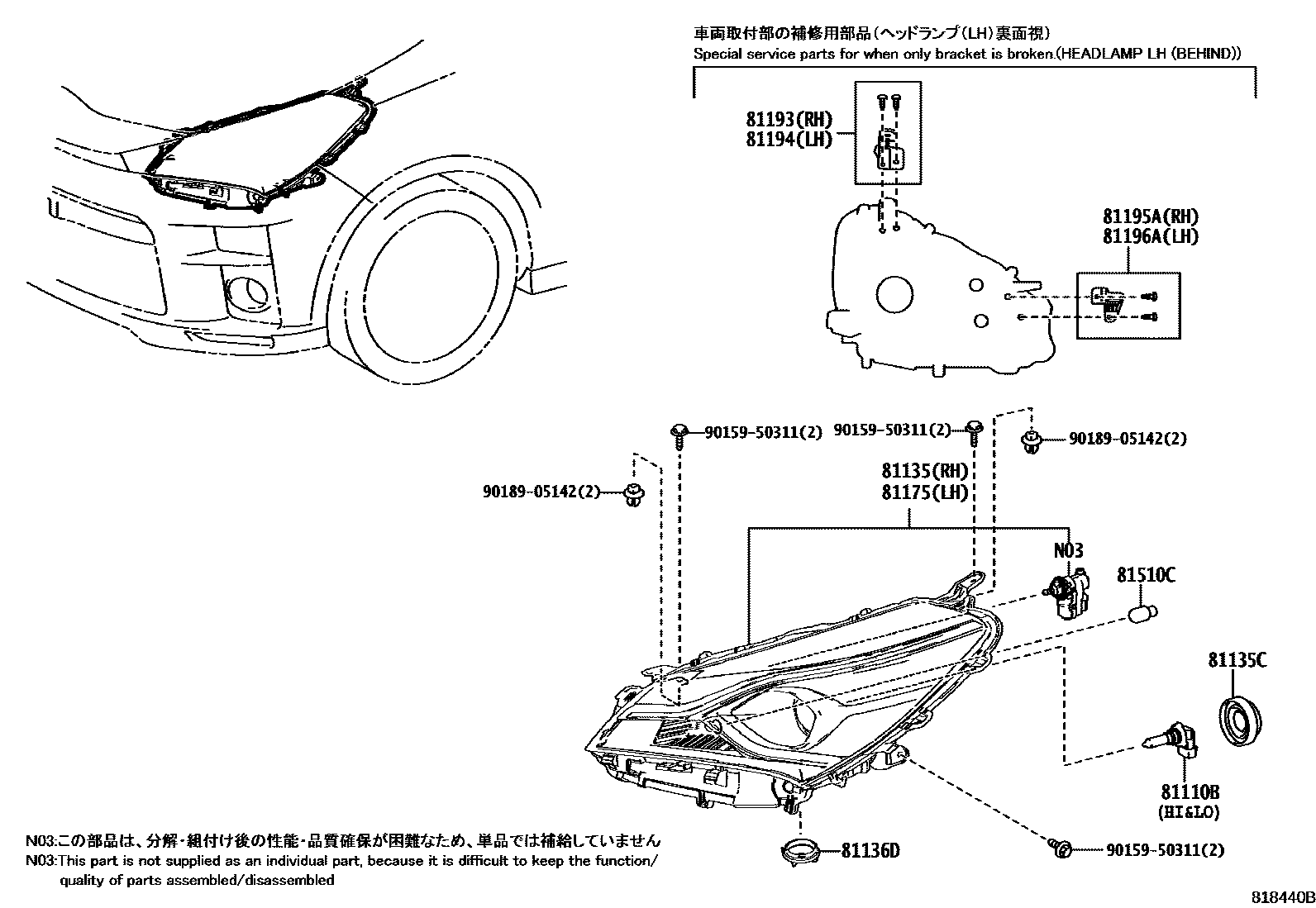

HEADLAMP

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iNSP131201711

81135UNIT ASSY, HEADLAMP, RH

main81130-0DL60iNSP131201711

81135CCOVER, HEADLAMP BACK, NO.1

main90075-65006×2iNSP131201711

81136DCOVER, HEADLAMP

main90075-66017×2iNSP131201711

81175UNIT ASSY, HEADLAMP, LH

main81170-0DL60iNSP131201711

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-0D100iNSP131201711

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-0D100iNSP131201711

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-0D090iNSP131201711

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-0D090iNSP131201711

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iNSP131201711

9015950311

main90159-50311

9018905142

main90189-05142

12 parts on this diagram · 1 diagram in section
