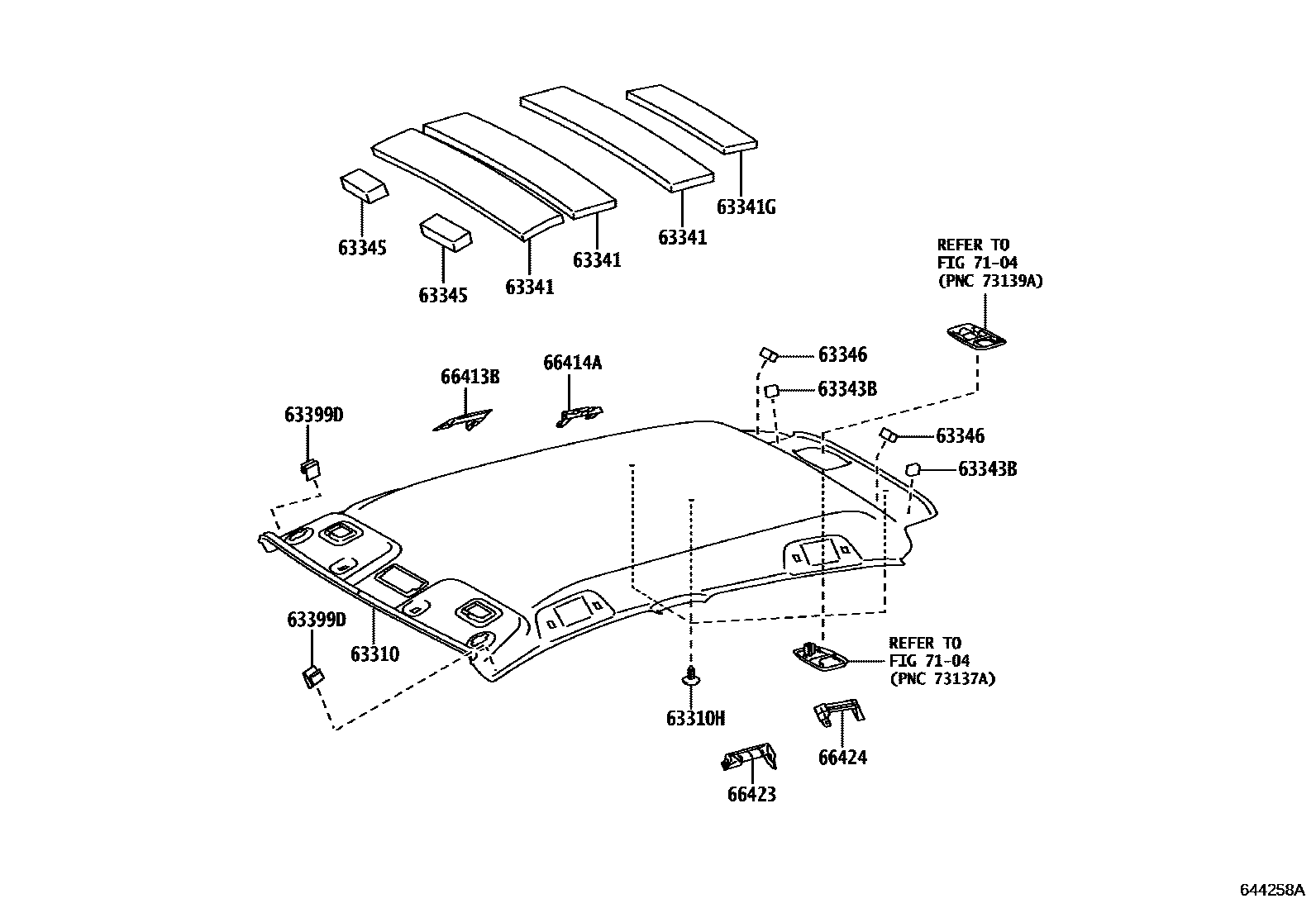

ROOF HEADLINING & SILENCER PAD

63310HEADLINING ASSY, ROOF

main63310-0D760-C0iNSP131201711

BLACK,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-05164-C7×3iNSP131201711

BLACK,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-0D140×3iNSP131201711

63341GPAD, ROOF SILENCER

main63343-0D090iNSP131201711

63343BPAD, ROOF SILENCER, REAR

main63344-0D020×2iNSP131201711

63345PAD, ROOF SILENCER, NO.5

main63345-0D040×2iNSP131201711

63346PAD, ROOF SILENCER, NO.6

main63346-0D020×2iNSP131201711

63399DCLIP, ROOF HEADLINING

main63399-52020×2iNSP131201711

66413BSPACER, SIDE RAIL, FRONT RH

main66414-0D200iNSP131201711

66414ASPACER, SIDE RAIL, REAR RH

main66415-0D010iNSP131201711

66423SPACER, SIDE RAIL, FRONT LH

main66424-0D200iNSP131201711

66424SPACER, SIDE RAIL, REAR LH

main66425-0D010iNSP131201711

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

13 parts on this diagram · 1 diagram in section
