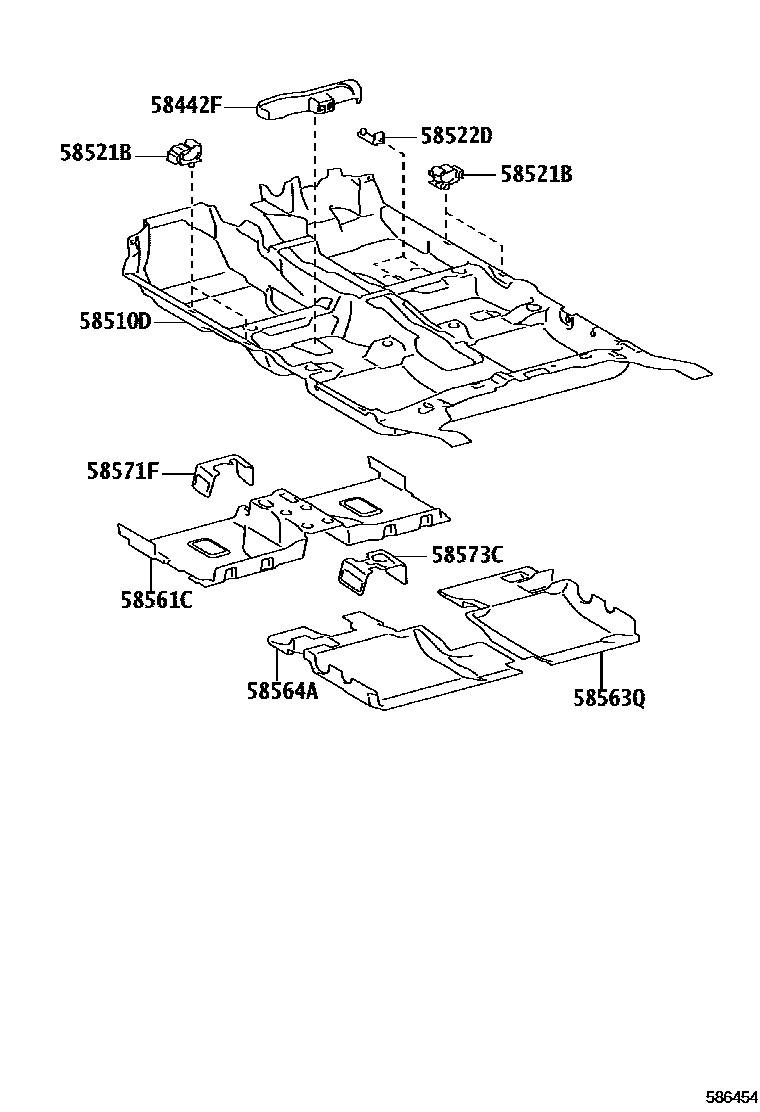

MAT & CARPET

58442FCOVER, JACK

main58442-0D090iNSP131201711

58510DCARPET ASSY, FLOOR, FRONT

main58510-0DC40iNSP131201711

58521BHOOK, FLOOR CARPET

main58521-52050×4iNSP131201711

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iNSP131201711

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D170iNSP131201711

58563QSILENCER, FRONT FLOOR, NO.3

main58563-0D170iNSP131201711

58564ASILENCER, FRONT FLOOR, NO.4

main58564-0D140iNSP131201711

58571FPAD, FRONT FLOOR, FRONT

main58571-0D090iNSP131201711

58573CPAD, FRONT FLOOR CENTER

main58573-0D020iNSP131201711

9 parts on this diagram · 1 diagram in section
