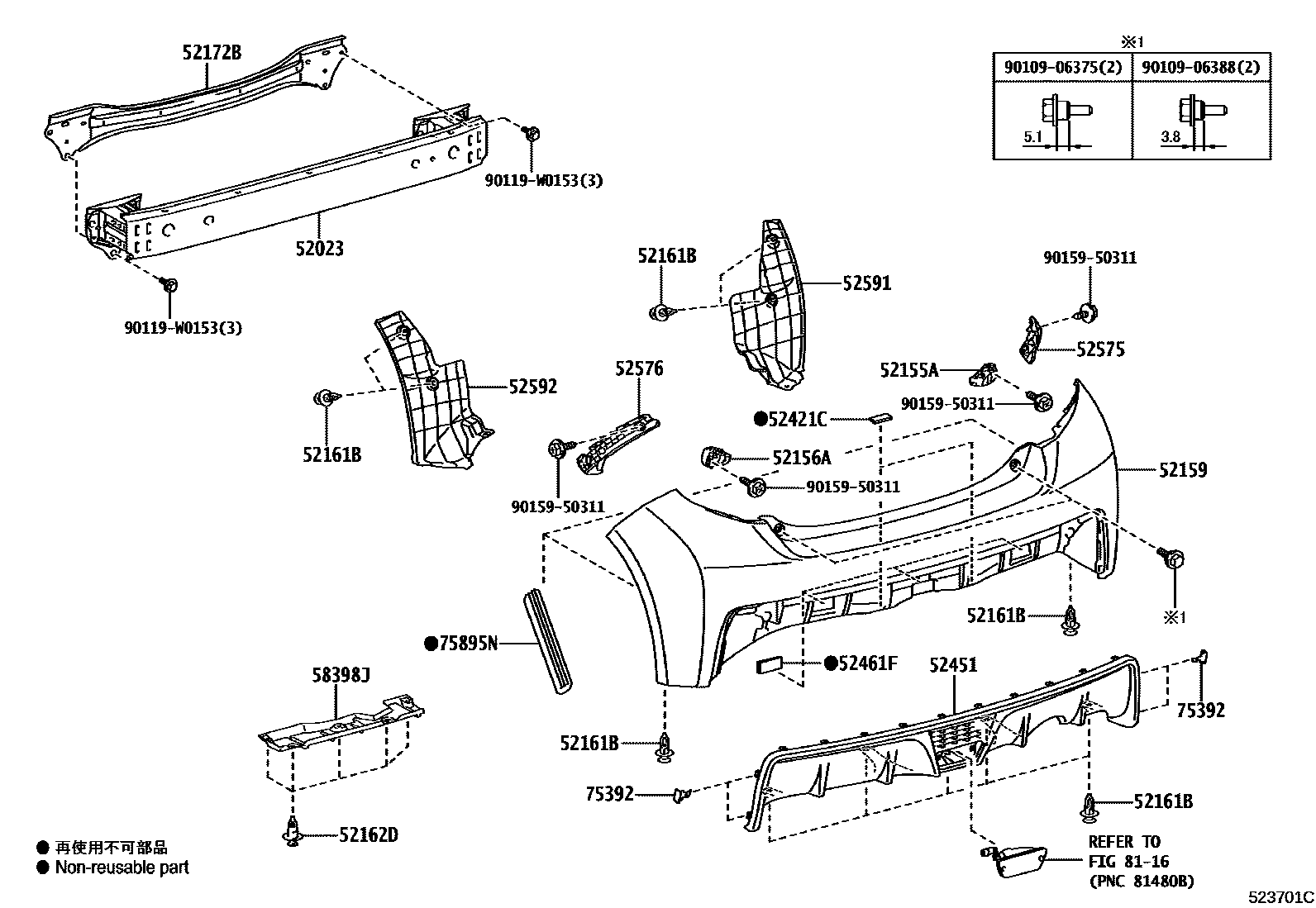

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D080iNSP131201711-201804

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52120iNSP131201711

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52120iNSP131201711

52159COVER, REAR BUMPER

main52159-52969iNSP131201711

52161BPIECE, REAR BUMPER

main52161-16010×11iNSP131201711

52162DPIECE, REAR BUMPER

main52161-02030×5iNSP131201711

52172BREINFORCEMENT, REAR BUMPER, NO.2

main52172-0D020iNSP131201711

52421CPAD, REAR BUMPER

main52421-52060×2iNSP131201711

52451GUARD, REAR BUMPER

main52453-52020iNSP131201711

52461FPAD, REAR BUMPER

main52462-52040×3iNSP131201711

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52171iNSP131201711

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52151iNSP131201711

52591SEAL, REAR BUMPER SIDE, RH

main52591-52350iNSP131201711

52592SEAL, REAR BUMPER SIDE, LH

main52592-52340iNSP131201711

58398JCOVER, FLOOR UNDER, NO.1

main58398-0D020iNSP131201711

75392RETAINER, OUTSIDE MOULDING

main75392-35200×4iNSP131201711

75895NTAPE, MOULDING, NO.1

main75895-30050×2iNSP131201711-201804

8116REAR FOG LAMP

→ Go to FIG 81-16

9010906375

main90109-06375

9010906388

main90109-06388

90119W0153

main90119-W0153

9015950311

main90159-50311

22 parts on this diagram · 1 diagram in section
