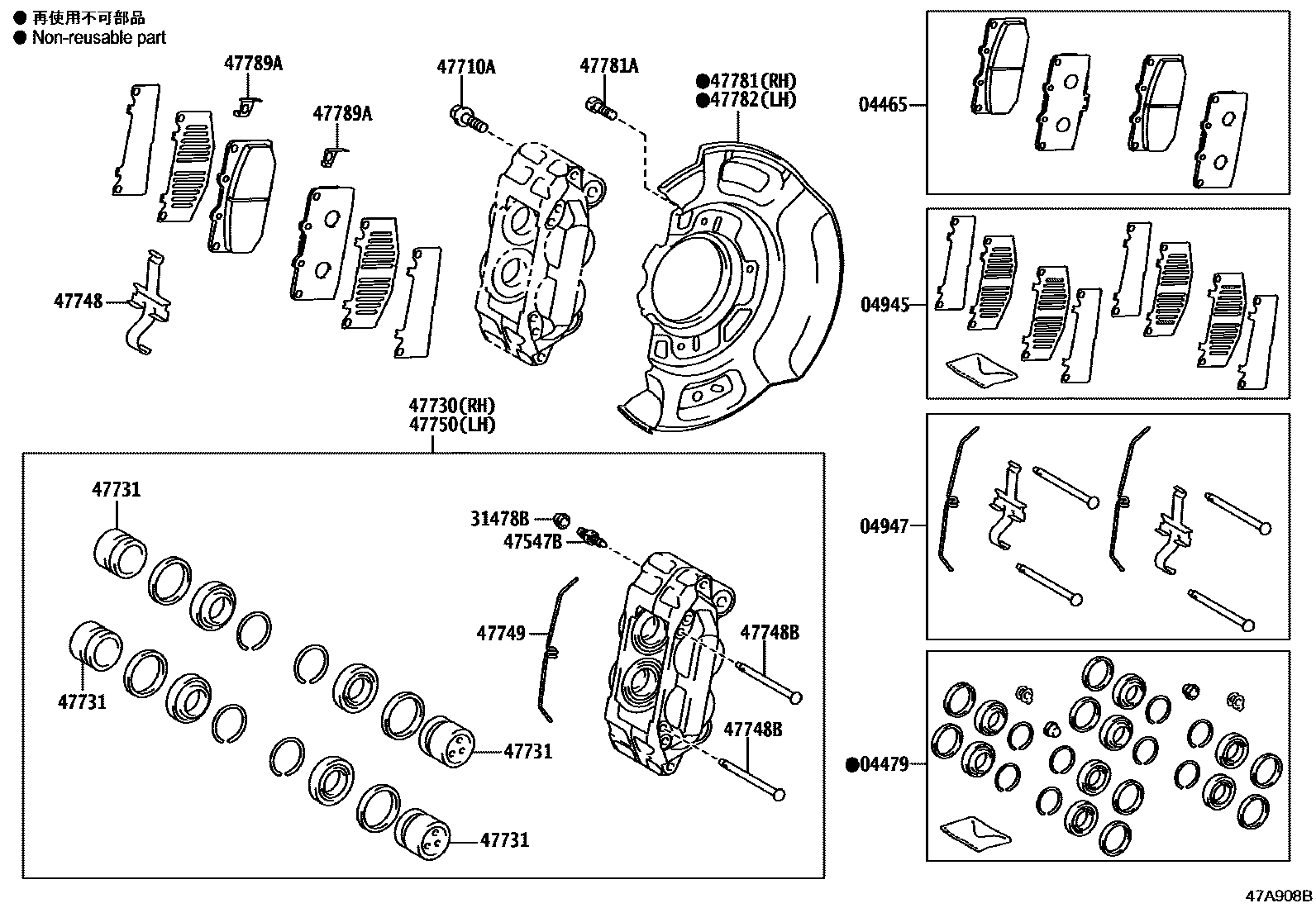

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-52360iNSP131201711

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-52220iNSP131201711

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-52200iNSP131201711

04947FITTING KIT, DISC BRAKE, FRONT

main04947-52070iNSP131201711

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNSP131201711

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12040×2iNSP131201711

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121×4iNSP131201711

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52340iNSP131201711

47731PISTON, FRONT DISC BRAKE

main47731-52310×8iNSP131201711

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60030×2iNSP131201711

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-52310×4iNSP131201711

47749CLIP, PIN HOLD

main90468-12015×2iNSP131201711

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52390iNSP131201711

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D170iNSP131201711

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525×6iNSP131201711

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D100iNSP131201711

47789ASPACER, FRONT DISC BRAKE PAD, NO.1

main47789-52020×2iNSP131201711

main47789-52030×2iNSP131201711

17 parts on this diagram · 1 diagram in section
