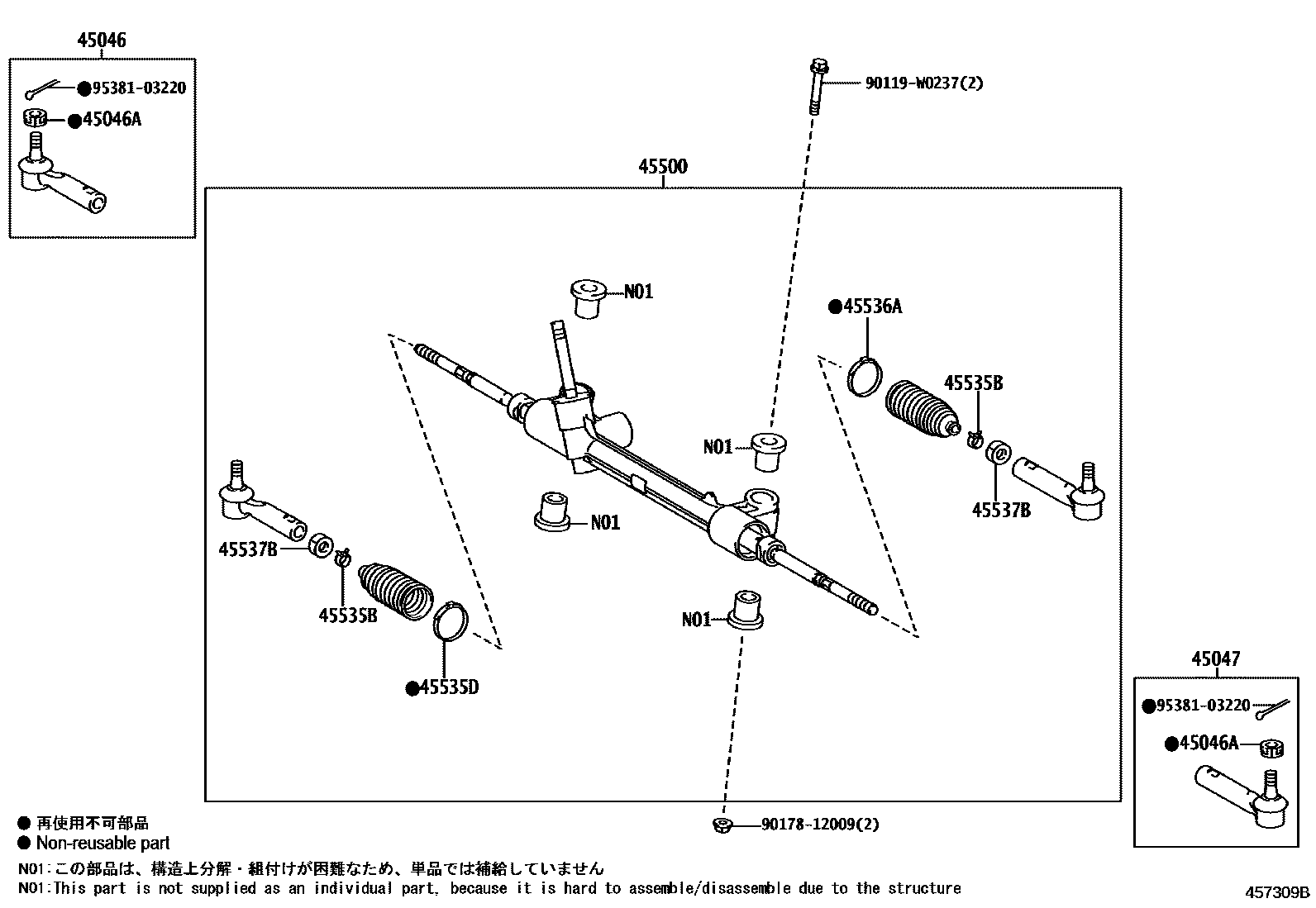

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

main45046-09860iNSP131201711

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028×2iNSP131201711

45047END SUB-ASSY, TIE ROD, LH

main45046-09860iNSP131201711

45500LINK ASSY, STEERING

main45500-0D310iNSP131201711

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D050×2iNSP131201711

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-0D040iNSP131201711

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D040iNSP131201711

45537BNUT, RACK END LOCK

main90178-15003×2iNSP131201711

90119W0237

main90119-W0237

9017812009

main90178-12009

9538103220

main95381-03220

11 parts on this diagram · 1 diagram in section
