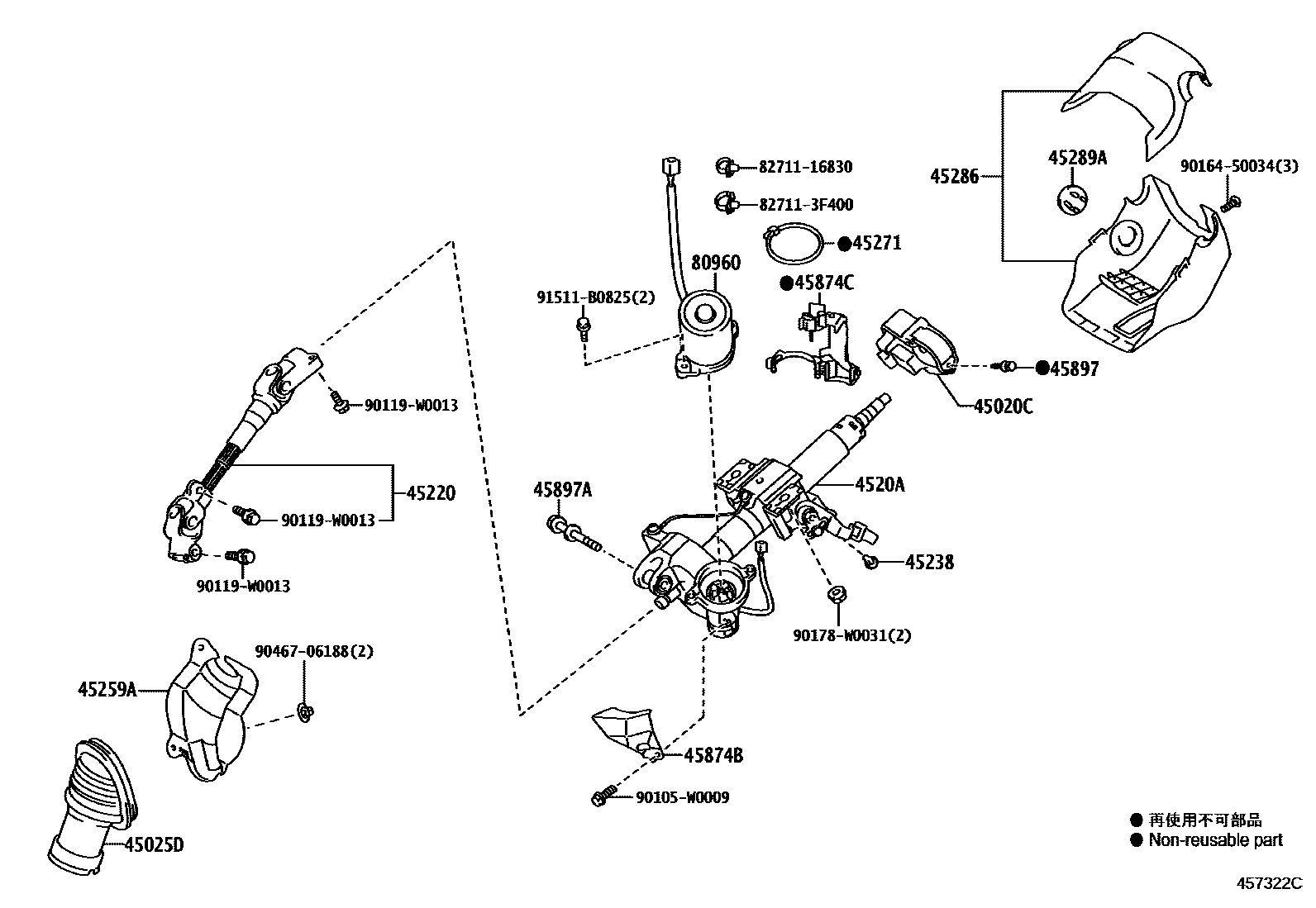

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0D120iNSP131201711-201804

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D062iNSP131201711

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D081iNSP131201711

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0D020iNSP131201711

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP131201711

45259ASHEET, COLUMN HOLE COVER SILENCER

main45255-0D120iNSP131201711

45271CLAMP, STEERING COLUMN, UPPER

main45271-52040iNSP131201711

45286COVER, STEERING COLUMN

main45286-0D915-C1iNSP131201711

EU BLACK

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D050-C1iNSP131201711

EU BLACK

45874BPROTECTOR, STEERING COLUMN, NO.1

main45874-52030iNSP131201711

45874CPROTECTOR, STEERING COLUMN, NO.1

main45874-0D040iNSP131201711

45897BOLT, STEERING LOCK SET

main45897-12020iNSP131201711

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iNSP131201711

80960MOTOR ASSY, POWER STEERING

main80960-0D180iNSP131201711

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

827113F400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3F400

90105W0009

main90105-W0009

90119W0013

main90119-W0013

9016450034

main90164-50034

90178W0031

main90178-W0031

9046706188

main90467-06188

91511B0825

main91511-B0825

22 parts on this diagram · 1 diagram in section
