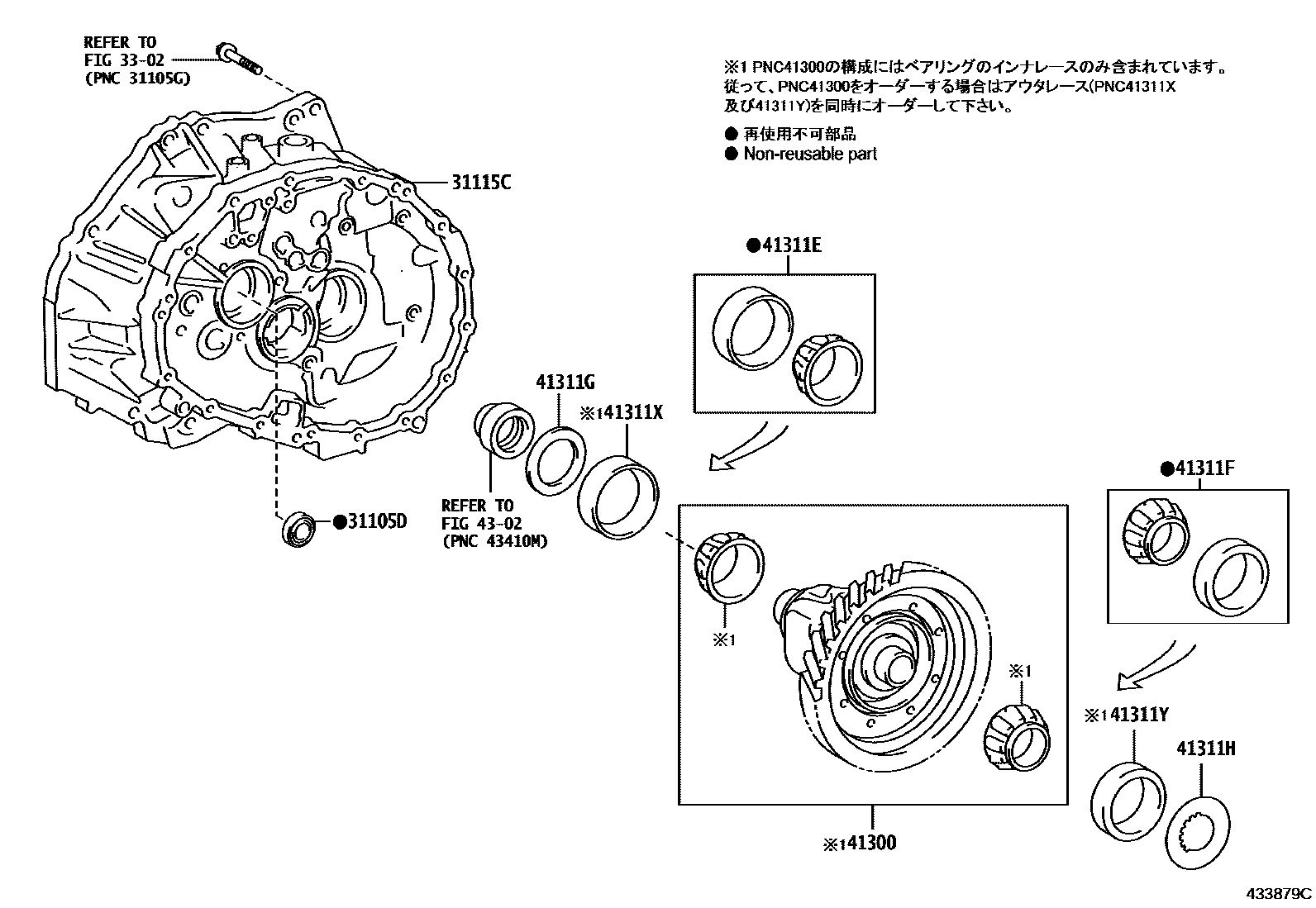

FRONT AXLE HOUSING & DIFFERENTIAL

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-25030iNSP131201711

31115CCASE, FRONT TRANSAXLE(MTM)

main31115-12201iNSP131201711

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

41300CASE ASSY, FRONT DIFFERENTIAL, W/RING GEAR

main41300-52230iNSP131201711

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40129iNSP131201711

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-42009iNSP131201711

41311GWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT)

main90560-41003iNSP131201711

41311HWASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-44039iNSP131201711

main90564-44040iNSP131201711

main90564-44041iNSP131201711

main90564-44042iNSP131201711

main90564-44043iNSP131201711

main90564-44044iNSP131201711

main90564-44045iNSP131201711

main90564-44046iNSP131201711

main90564-44047iNSP131201711

main90564-44048iNSP131201711

main90564-44049iNSP131201711

main90564-44050iNSP131201711

main90564-44051iNSP131201711

main90564-44052iNSP131201711

main90564-44053iNSP131201711

main90564-44054iNSP131201711

main90564-44055iNSP131201711

main90564-44056iNSP131201711

main90564-44057iNSP131201711

main90564-44058iNSP131201711

main90564-44059iNSP131201711

main90564-44060iNSP131201711

main90564-44061iNSP131201711

main90564-44062iNSP131201711

main90564-44063iNSP131201711

main90564-44064iNSP131201711

main90564-44065iNSP131201711

main90564-44066iNSP131201711

main90564-44067iNSP131201711

main90564-44068iNSP131201711

main90564-44069iNSP131201711

41311XOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRONT)

main90366-40130iNSP131201711

41311YOUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR)

main90366-42010iNSP131201711

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

11 parts on this diagram · 1 diagram in section
