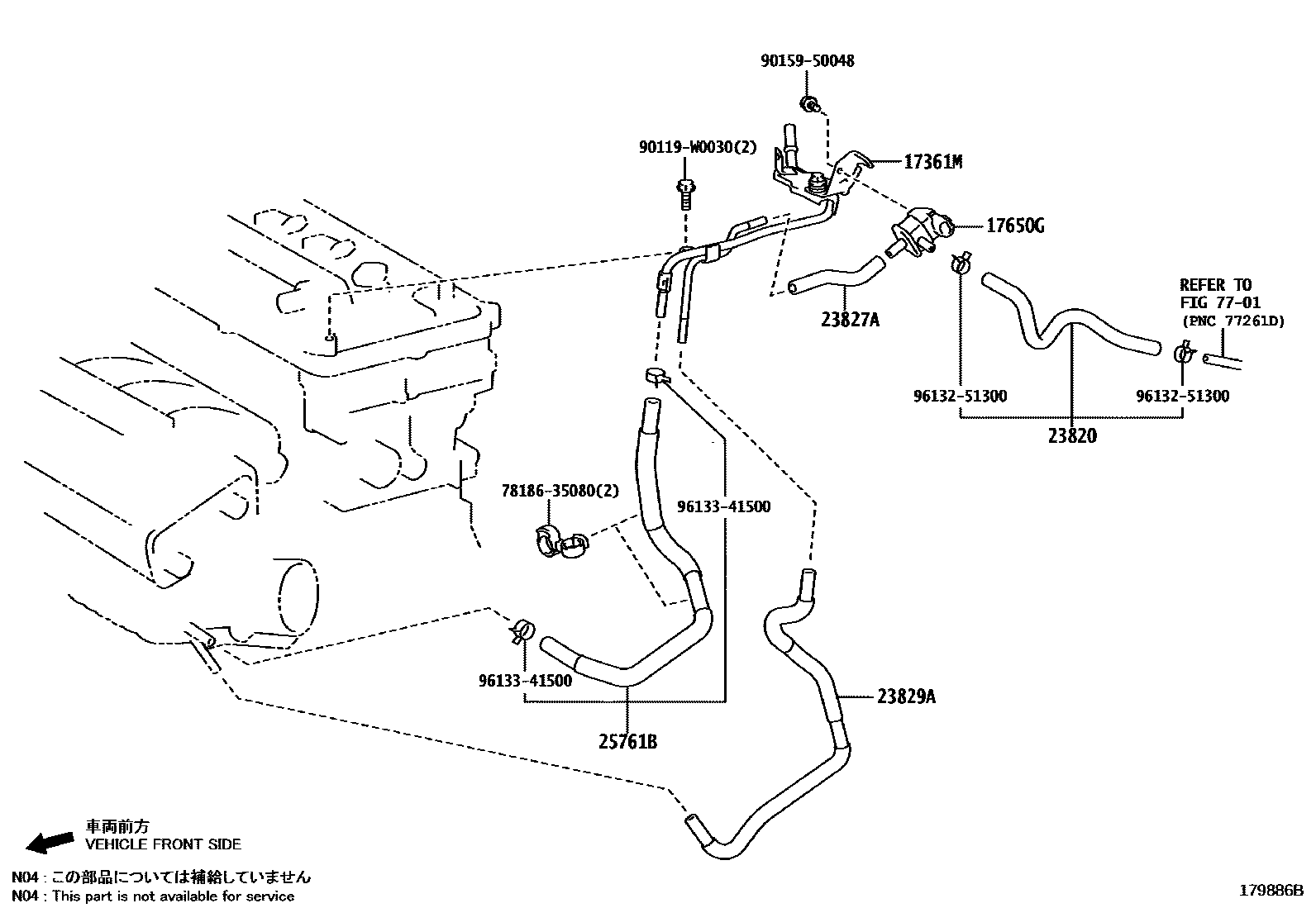

VACUUM PIPING

17361MTUBE, AIR

main17361-37011i2ZRFE..NSP131201711

17650GVALVE, DUTY VACUUM SWITCHING

main90910-TC001i2ZRFE..NSP131201711

23820HOSE ASSY, FUEL VAPOR FEED

main23820-37120i2ZRFE..NSP131201711

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37020i2ZRFE..NSP131201711

23829AHOSE, FUEL VAPOR FEED

main23829-37010i2ZRFE..NSP131201711

25761BHOSE, VACCUM TRANSMITTING, NO.1

main25761-37090i2ZRFE..NSP131201711-201804

7701FUEL TANK & TUBE

→ Go to FIG 77-01

7818635080SUPPORT, ACCELERATOR CONTROL CABLE, NO.1

main78186-35080

90119W0030

main90119-W0030

9015950048

main90159-50048

9613251300

main96132-51300

9613341500

main96133-41500

12 parts on this diagram · 1 diagram in section
