Toyota VITZ GRMN 11C — AIR CLEANER

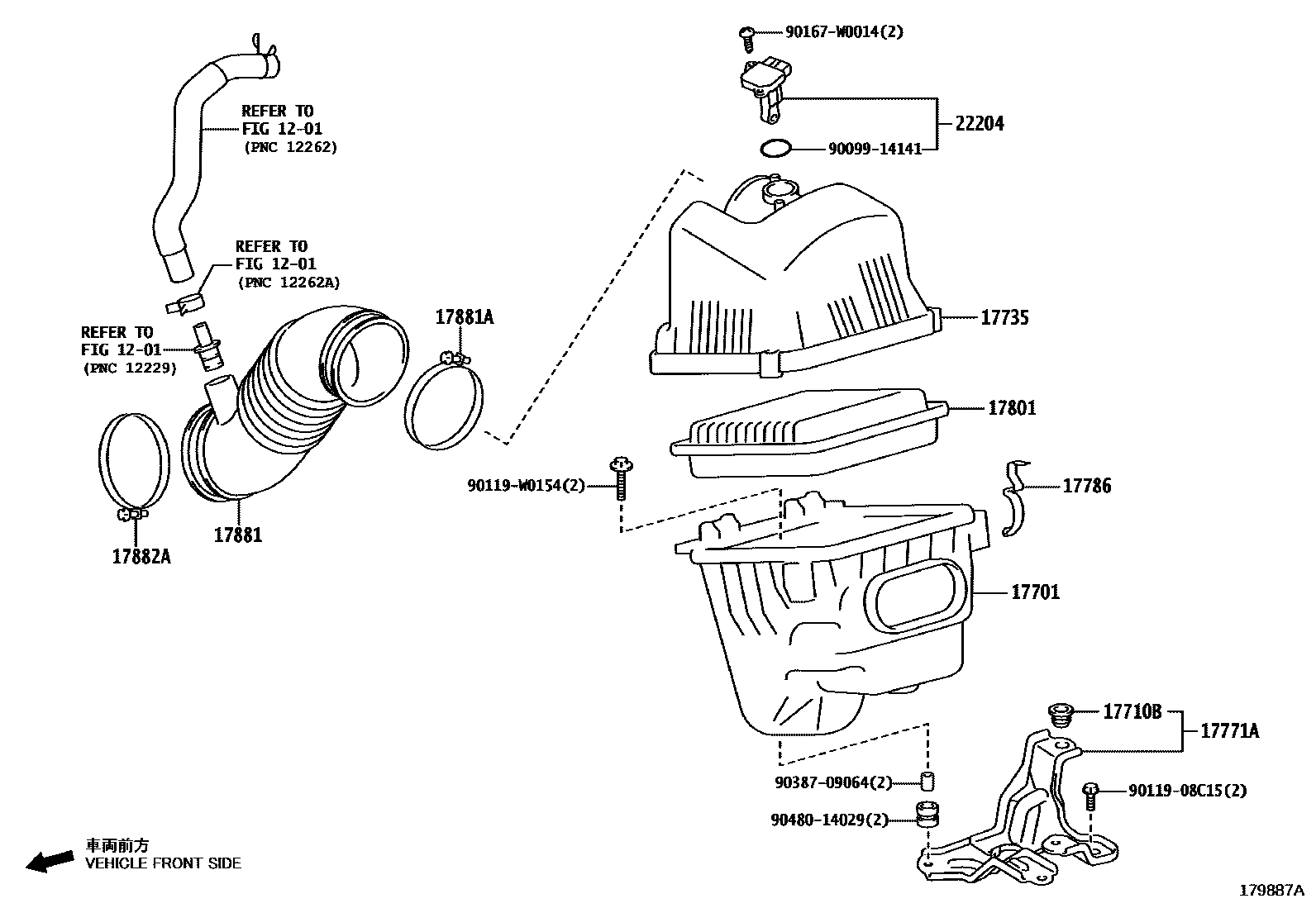

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

17701CASE SUB-ASSY, AIR CLEANER

17710BGROMMET

17735CAP, AIR CLEANER

17771ABRACKET, AIR CLEANER

17786CLAMP, AIR CLEANER

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

17881HOSE, AIR CLEANER, NO.1

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

22204METER SUB-ASSY, INTAKE AIR FLOW

9009914141

9011908C15

90119W0154

90167W0014

9038709064

9048014029

17 parts on this diagram · 1 diagram in section

AIR CLEANER for Toyota VITZ GRMN 11C

This section contains 17 genuine Toyota parts for the AIR CLEANER system of the Toyota VITZ GRMN 11C. Key components include: VENTILATION HOSE, CASE SUB-ASSY, AIR CLEANER, GROMMET, CAP, AIR CLEANER, BRACKET, AIR CLEANER.
