Toyota VITZ GRMN 11C — VENTILATION HOSE

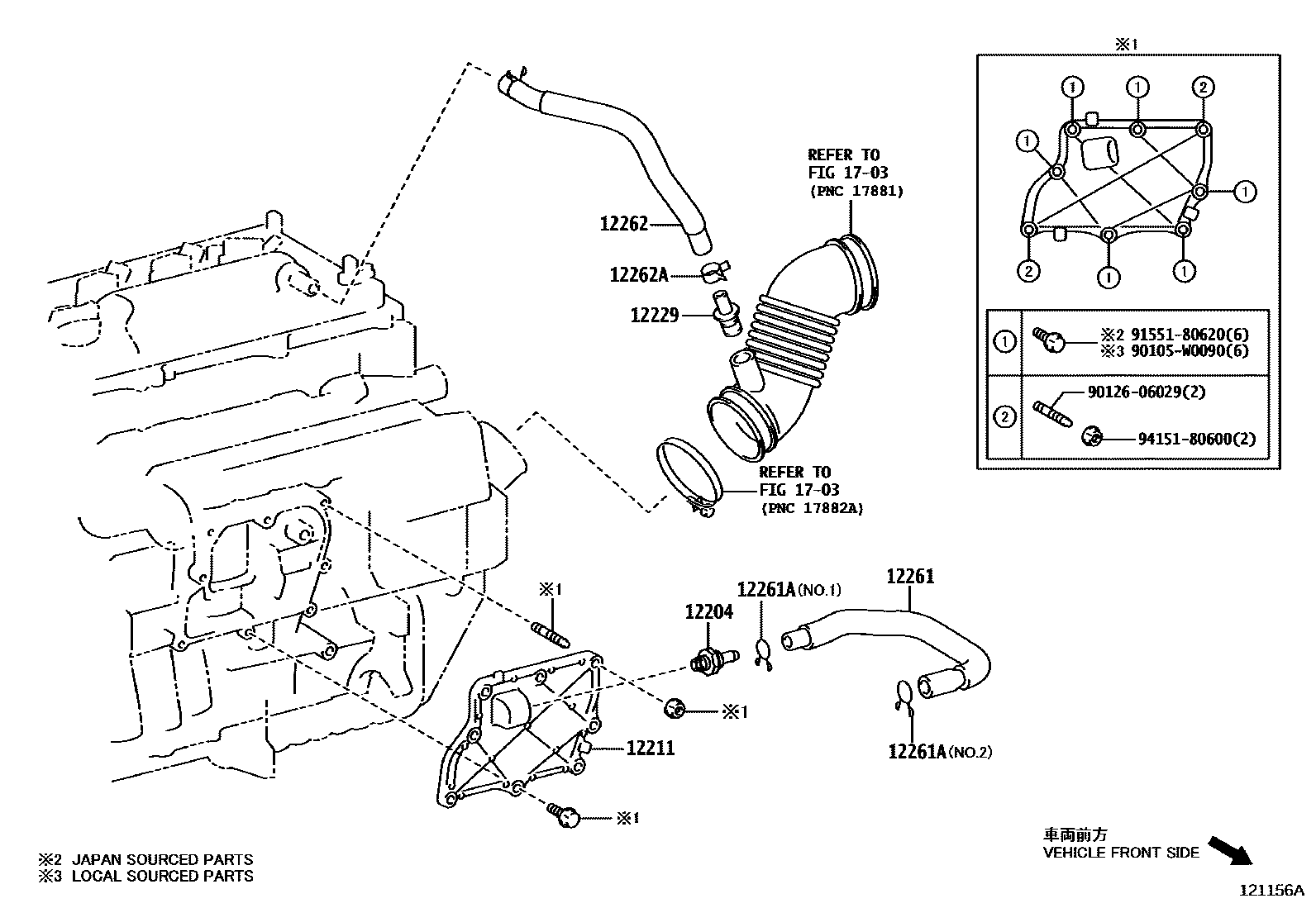

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12211CASE, VENTILATION, NO.1

12229PIPE, VENTILATION

12261HOSE, VENTILATION

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

12262HOSE, VENTILATION, NO.2

12262ACLIP(FOR VENTILATION HOSE NO.2)

1703AIR CLEANER

→ Go to FIG 17-03

90105W0090

9012606029

9155180620

9415180600

12 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota VITZ GRMN 11C

This section contains 12 genuine Toyota parts for the VENTILATION HOSE system of the Toyota VITZ GRMN 11C. Key components include: VALVE SUB-ASSY, VENTILATION, CASE, VENTILATION, NO.1, PIPE, VENTILATION, HOSE, VENTILATION, CLIP OR CLAMP(FOR VENTILATION HOSE).
