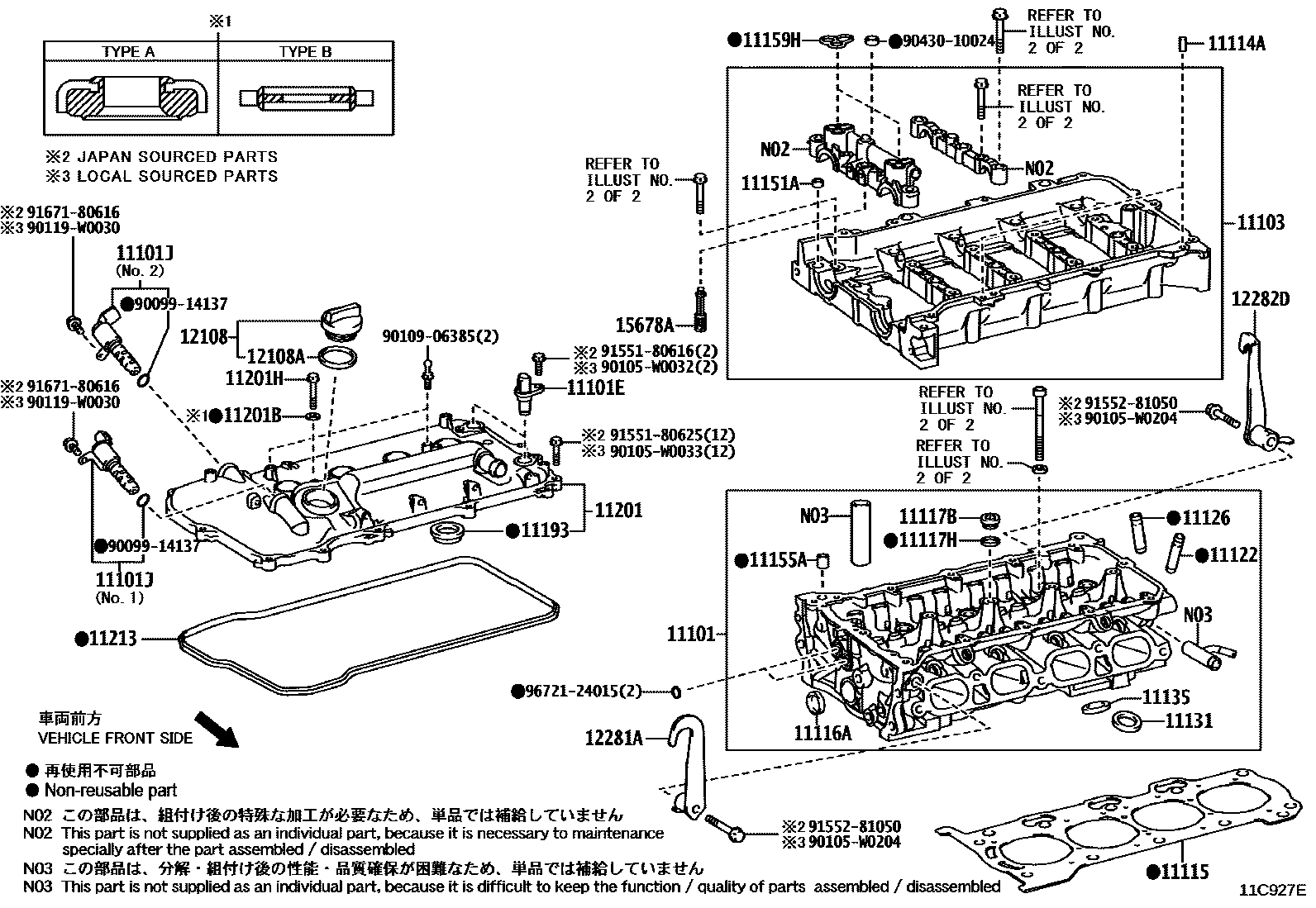

CYLINDER HEAD
11101ESENSOR, CAM POSITION
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11103HOUSING SUB-ASSY, CAMSHAFT
11114APIN, STRAIGHT
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11122BUSH, INTAKE VALVE GUIDE
11126BUSH, EXHAUST VALVE GUIDE
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
11155APIN, RING W/HEAD
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
11193GASKET, SPARK PLUG TUBE
11201COVER SUB-ASSY, CYLINDER HEAD
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11201HBOLT(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
15678AFILTER, OIL CONTROL VALVE
9009914137
main90099-14137
90105W0032
main90105-W0032
90105W0033
main90105-W0033
90105W0204
main90105-W0204
9010906385
main90109-06385
90119W0030
main90119-W0030
9043010024
main90430-10024
9155180616
main91551-80616
9155180625
main91551-80625
9155281050
main91552-81050
9167180616
main91671-80616
9672124015
main96721-24015
38 parts on this diagram · 2 diagrams in section
