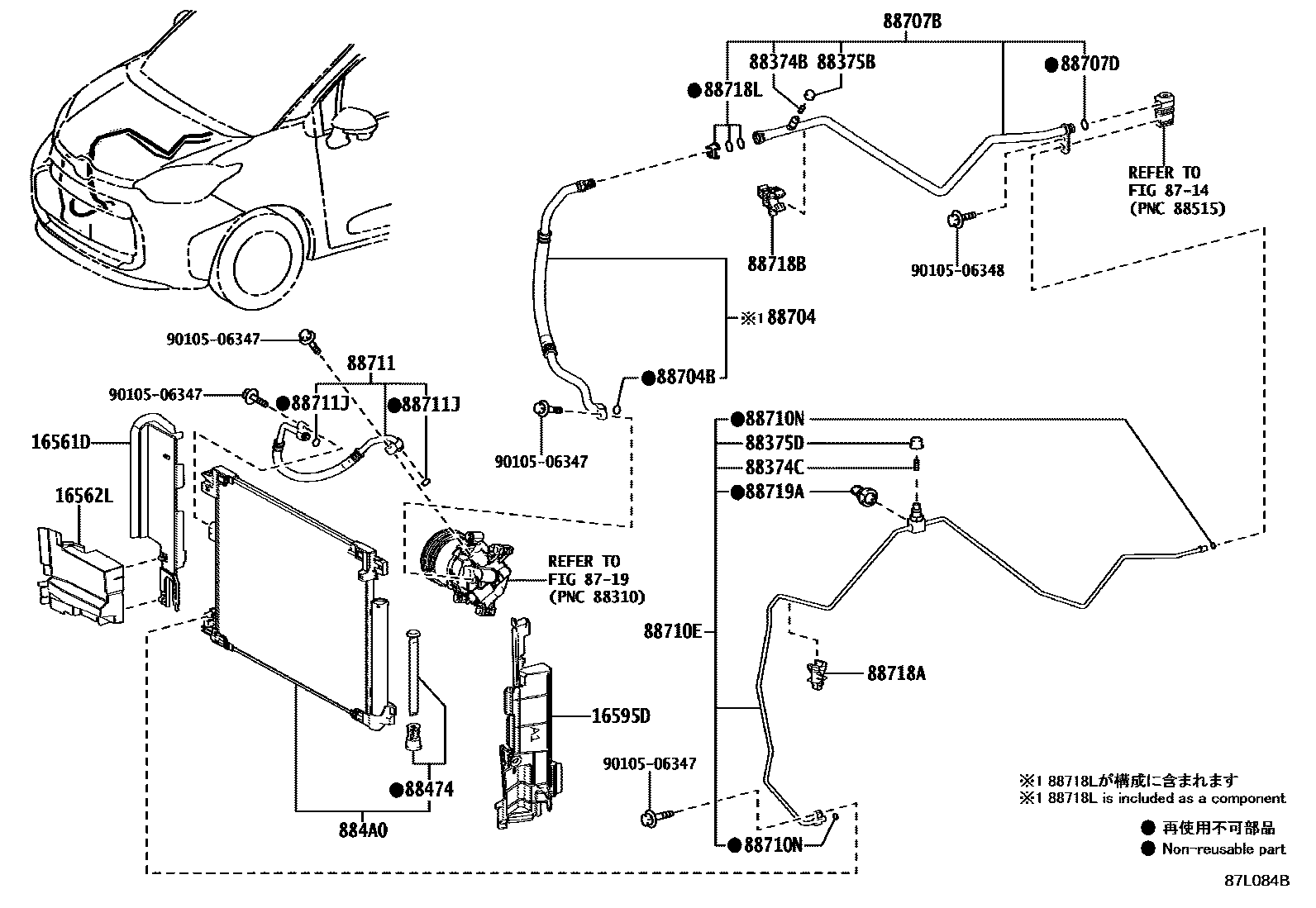

HEATING & AIR CONDITIONING - COOLER PIPING
16561DSEAL, RADIATOR TO SUPPORT, NO.1
16562LSEAL, RADIATOR TO SUPPORT, NO.2
16595DGUIDE, RADIATOR AIR, NO.1 LH
8714HEATING & AIR CONDITIONING - COOLER UNIT
8719HEATING & AIR CONDITIONING - COMPRESSOR
88374BVALVE, SERVICE, NO.1
88374CVALVE, SERVICE, NO.2
88375BCAP, SERVICE VALVE, NO.1
88375DCAP, SERVICE VALVE, NO.2
88704BRING, O(FOR SUCTION HOSE)
88707BTUBE SUB-ASSY, SUCTION, B
88707DRING, O(FOR SUCTION TUBE)
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711JRING, O, NO.1(FOR DISCHARGE HOSE)
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718BCLAMP, NO.2(FOR COOLER REFRIGERANT PIPE)
88718LCLAMP, PIPING
88719ASENSOR, AIR CONDITIONER PRESSURE
9010506347
main90105-06347
9010506348
main90105-06348
25 parts on this diagram · 2 diagrams in section
