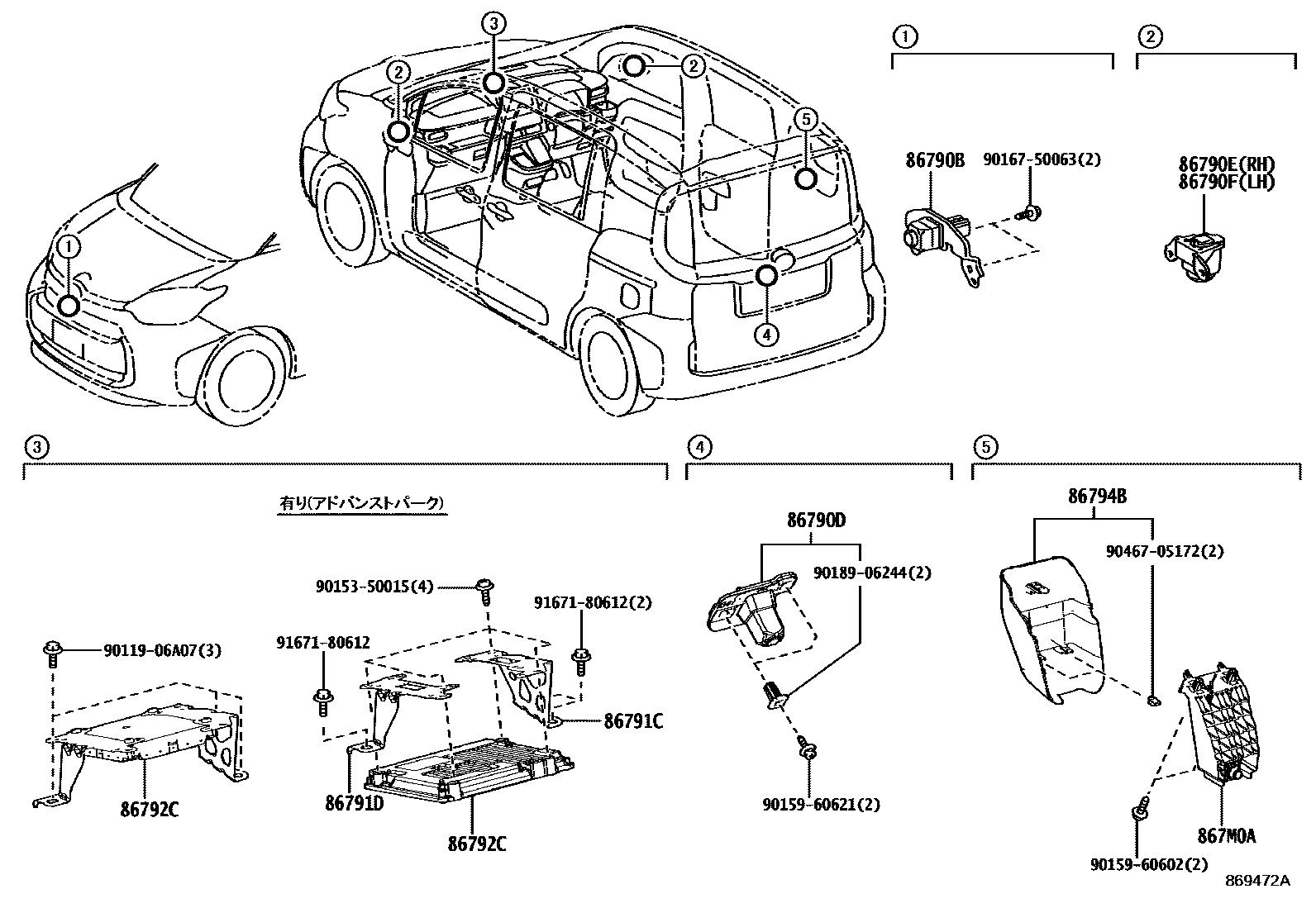

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-52560iMXPC1#,MXPL1#..G,Z202405

main86790-52570iMXPL1#..Z202207-202405

86790DCAMERA ASSY, TELEVISION, RR

main86790-52500supersedes 867B0-52050iMXPC1#,MXPL1#..G,Z202207-202405

main86790-52510iMXPL1#..Z202207-202405

main867B0-52050iMXPC1#,MXPL1#..G,Z; MXPC1#,MXPL1#..X202207-202404

main867B0-52150iMXPC1#,MXPL1#..X202405

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-52530iMXPC1#,MXPL1#..G,Z202405

main86790-52550iMXPL1#..Z202207-202405

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-52520iMXPC1#,MXPL1#..G,Z202405

main86790-52540iMXPL1#..Z202207-202405

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-52150iMXPL1#..Z202207-202405

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-52160iMXPL1#..Z202405

86792CCOMPUTER, PARKING ASSIST

main86792-52200iMXPC1#,MXPL1#..G,Z; MXPC1#,MXPL1#..X202207-202404

main86792-52240iMXPL1#..Z202207-202404

main86792-52470iMXPC1#,MXPL1#..X202405-202508

main86792-52480iMXPL1#..Z202405-202507

86794BCOVER, TELEVISION CAMERA

main86794-52050-C0iMXPC1#,MXPL1#..G,Z; MXPC1#,MXPL1#..X202207-202508

867M0ACAMERA ASSY, DRIVE RECORDER, REAR

main867M0-52010iMXPC1#,MXPL1#202207-202508

main867M0-52020iMXPC1#,MXPL1#..G,Z202207-202508

9011906A07

main90119-06A07

9015350015

main90153-50015

9015960602

main90159-60602

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9046705172

main90467-05172

9167180612

main91671-80612

17 parts on this diagram · 1 diagram in section
