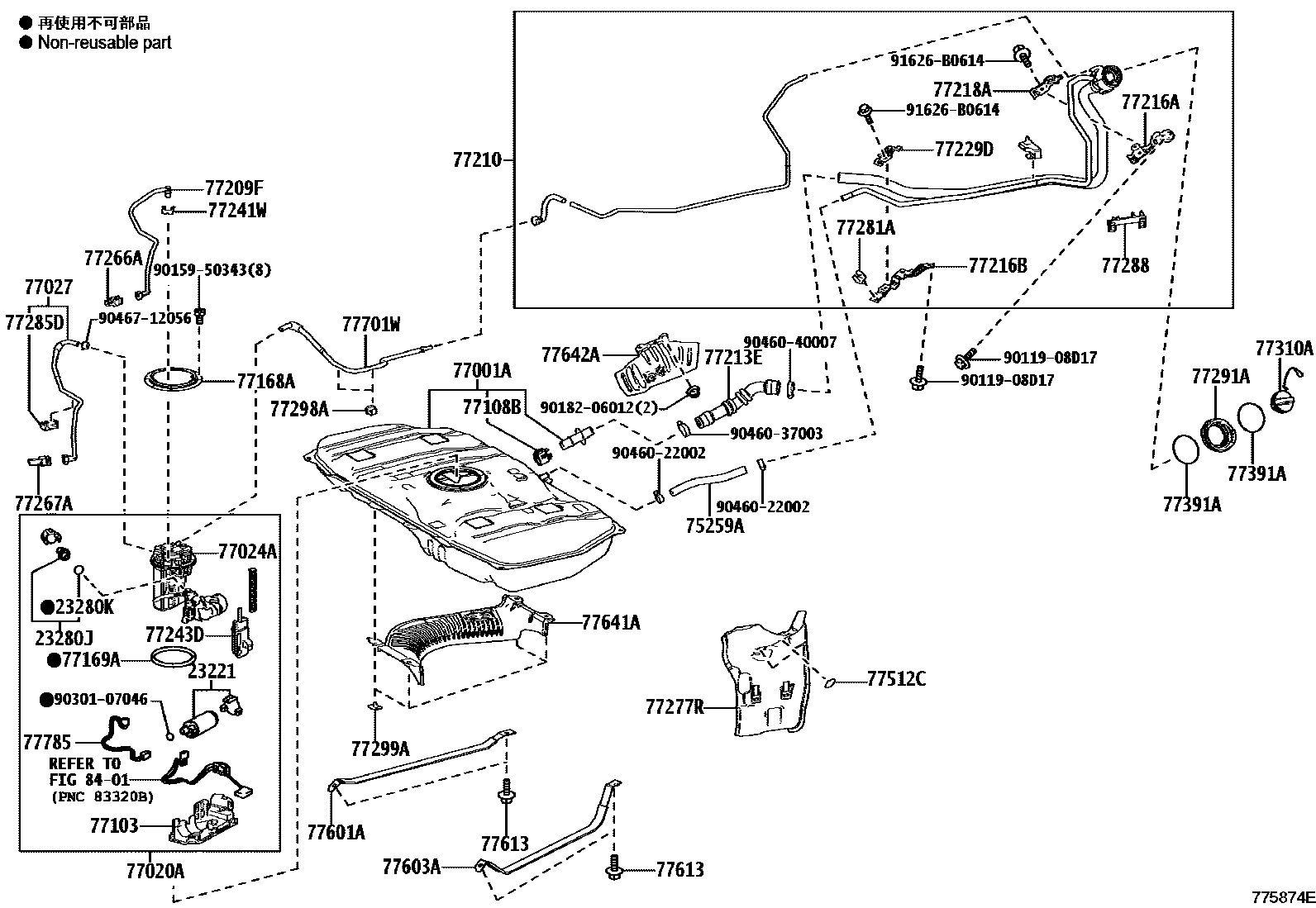

FUEL TANK & TUBE
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77027TUBE SUB-ASSY, FUEL EVAPORATION, NO.2
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77168APLATE, FUEL TANK VENT TUBE SET
77169AGASKET, FUEL SUCTION TUBE SET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77213EHOSE, FUEL TANK TO FILLER PIPE
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77216BSUPPORT, FUEL TANK FILLER PIPE, NO.2
77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3
77229DSUPPORT, FUEL TANK FILLER PIPE, NO.4
77241WCLIP, TUBE JOINT
77243DJOINT, FUEL TUBE, NO.1
77266APROTECTOR, FUEL TUBE, NO.1
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77285DCLAMP, FUEL TUBE, NO.1
77288CLAMP, BREATHER HOSE
77291ASHIELD, FUEL TANK FILLER PIPE
77298ACLAMP, FUEL TUBE, NO.4
77299ACLAMP, FUEL TUBE, NO.5
77310ACAP ASSY, FUEL TANK
77391ARING, FUEL INLET BOX
77512CBRACKET, FUEL TANK
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77613BOLT, FUEL TANK BAND SET
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1
8401SWITCH & RELAY & COMPUTER
9011908D17
main90119-08D17
9015950343
main90159-50343
9018206012
main90182-06012
9030107046
main90301-07046
9046022002
main90460-22002
9046037003
main90460-37003
9046040007
main90460-40007
9046712056
main90467-12056
91626B0614
main91626-B0614
50 parts on this diagram · 7 diagrams in section
