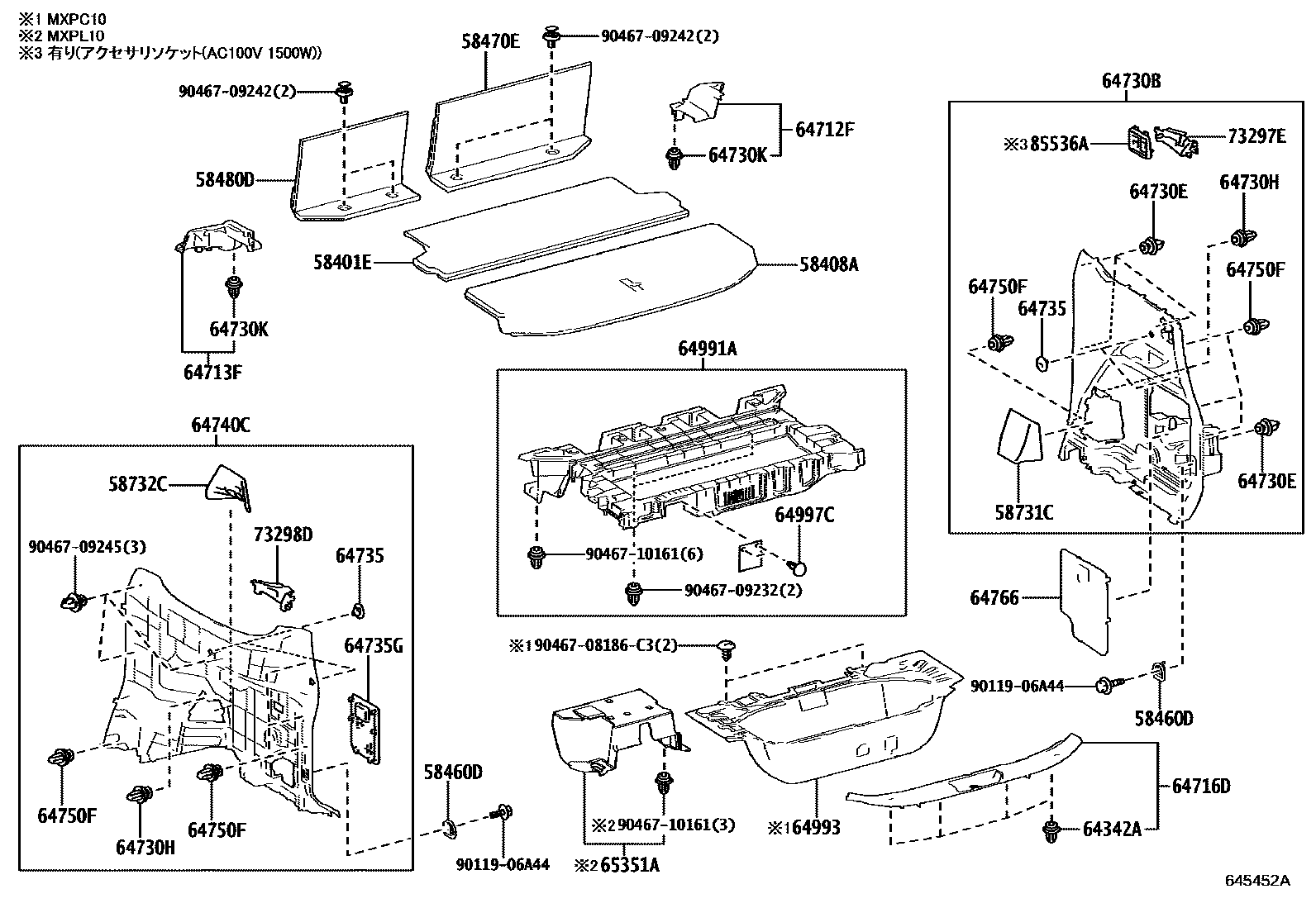

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58401EBOARD SUB-ASSY, DECK

main58401-52090-B0iMXPC10,MXPL10,15..07S..X202207

DARK GRAY,TRIM2#

main58401-52090-B0iMXPC10,MXPL10,15..07S..X202207

DARK GRAY,TRIM2#,4#

main58401-52100-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#

main58401-52100-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#,4#

main58401-52100-B0iMXPC10,MXPL10,15..05S..X202207

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-52070-B0iMXPC10,MXPL10,15..07S..X202207

DARK GRAY,TRIM2#

main58408-52070-B0iMXPC10,MXPL10,15..07S..X202207

DARK GRAY,TRIM2#,4#

main58408-52120-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#

main58408-52120-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#,4#

main58408-52120-B0iMXPC10,MXPL10,15..05S..X202207

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-33020iMXPC10,MXPL10,15202207

58470EBOARD ASSY, REAR FLOOR, NO.1

main58470-52070-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#

main58470-52070-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#,4#

main58470-52070-B0iMXPC10,MXPL10,15..05S..X202207

58480DBOARD ASSY, REAR FLOOR, NO.2

main58480-52030-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#

main58480-52030-B0iMXPC10,MXPL10,15..05S..X202207

DARK GRAY,TRIM2#,4#

main58480-52030-B0iMXPC10,MXPL10,15..05S..X202207

58731CCAP, REAR ABSORBER

main58731-52100-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#

main58731-52100-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#,4#

main58731-52120-C0iMXPC12,MXPL12..X202207

BLACK,TRIM2#

main58731-52120-C0iMXPC12,MXPL12..X202207

BLACK,TRIM2#,4#

58732CCAP, REAR ABSORBER

main58732-52080-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#

main58732-52080-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#,4#

64342ACLIP

main90467-10161iMXPC10,MXPL10,15202207

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-52060-C0iMXPC12,MXPL12..X;MXPC10,MXPL10,15..07S..X202207

BLACK,TRIM2#

main64712-52060-C0iMXPC12,MXPL12..X;MXPC10,MXPL10,15..07S..X202207

BLACK,TRIM2#,4#

main64712-52080-C0iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#

main64712-52080-C0iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#,4#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-52140-C0iMXPC12,MXPL12..X;MXPC10,MXPL10,15..07S..X202207

BLACK,TRIM2#

main64713-52140-C0iMXPC12,MXPL12..X;MXPC10,MXPL10,15..07S..X202207

BLACK,TRIM2#,4#

main64713-52160-C0iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#

main64713-52160-C0iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#,4#

64716DCOVER, DECK TRIM, REAR

main64716-52250-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#

main64716-52250-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#,4#

main64716-52250-C0iMXPC10,MXPL10,15..X202207

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-52680-C0iMXPC10,MXPL10,15..07S..(G,Z)202207

BLACK,TRIM2#,4#

main64730-52680-C0iMXPC10,MXPL10,15..07S..(G,Z)202207

BLACK,TRIM2#

main64730-52690-C0iMXPC10,MXPL10,15..05S..(G,Z)202207

BLACK,TRIM2#,4#

main64730-52690-C0iMXPC10,MXPL10,15..05S..(G,Z)202207

BLACK,TRIM2#

main64730-52790-C0iMXPC10..07S..X202207

BLACK,TRIM2#

main64730-52810-C1iMXPC10..05S..X202207

BLACK,TRIM2#

main64730-52A20-C1iMXPC12,MXPL12..X202207

BLACK,TRIM2#

main64730-52A20-C1iMXPC12,MXPL12..X202207

BLACK,TRIM2#,4#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-09245iMXPC1#,MXPL1#202207

64730HCLIP(FOR DECK TRIM SIDE PANEL)

main90467-09232iMXPC12,MXPL12202207

64730KCLIP(FOR DECK SIDE TRIM PANEL)

main90467-09206iMXPC1#,MXPL1#202207

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-52020-C1iMXPC1#,MXPL1#..X202207

BLACK,TRIM2#

sub64735-52020

main64735-52020-C1iMXPC1#,MXPL1#..X202207

BLACK,TRIM2#,4#

sub64735-52020

64735GCOVER, DECK TRIM SIDE SERVICE HOLE, LH

main64722-52040-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#

main64722-52040-C0iMXPC10,MXPL10,15..X202207

BLACK,TRIM2#,4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-52760-C0iMXPC10,MXPL10,15..07S..(G,Z)202207

BLACK,TRIM2#,4#

main64740-52760-C0iMXPC10,MXPL10,15..07S..(G,Z)202207

BLACK,TRIM2#

main64740-52770-C0iMXPC10,MXPL10,15..05S..(G,Z)202207

BLACK,TRIM2#,4#

main64740-52770-C0iMXPC10,MXPL10,15..05S..(G,Z)202207

BLACK,TRIM2#

main64740-52A10-C0iMXPC10..07S..X202207

BLACK,TRIM2#

main64740-52A30-C1iMXPC10..05S..X202207

BLACK,TRIM2#

main64740-52A50-C0iMXPC12,MXPL12..X202207

BLACK,TRIM2#

main64740-52A50-C0iMXPC12,MXPL12..X202207

BLACK,TRIM2#,4#

64750FCLIP(FOR DECK SIDE TRIM PANEL)

main90467-10161iMXPC1#,MXPL1#202207

64766COVER SUB-ASSY, QUARTER TRIM JACK

main64766-52070-C0iMXPC1#,MXPL1#..X202207

BLACK,TRIM2#

main64766-52070-C0iMXPC1#,MXPL1#..X202207

BLACK,TRIM2#,4#

64991ABOX, DECK FLOOR, FR

main64991-52060-C0iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#

main64991-52060-C0iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#,4#

main64991-52060-C0iMXPC10,MXPL10,15..05S..X202207

64993BOX, DECK FLOOR, REAR

main64993-52270iMXPC10202207

64997CCLIP(FOR DECK FLOOR BOX)

main90467-05162-C1iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#

sub90467-05162

main90467-05162-C1iMXPC10,MXPL10,15..05S..X202207

BLACK,TRIM2#,4#

sub90467-05162

main90467-05162-C1iMXPC10,MXPL10,15..05S..X202207

sub90467-05162

65351ACOVER, BATTERY HOLE

main65351-52020iMXPL10202207

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-52010-B0iMXPC1#,MXPL1#..05S..X202207

LT.GRAY,TRIM2#

main73297-52010-B0iMXPC1#,MXPL1#..05S..X202207

LT.GRAY,TRIM2#,4#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-52010-B0iMXPC10,MXPL10,15..05S..X202207

LT.GRAY,TRIM2#

main73298-52010-B0iMXPC10,MXPL10,15..05S..X202207

LT.GRAY,TRIM2#,4#

85536ABEZEL, POWER OUTLET SOCKET

9011906A44

main90119-06A44

9046708186C3

main90467-08186C3

9046709232

main90467-09232

9046709242

main90467-09242

9046709245

main90467-09245

9046710161

main90467-10161

33 parts on this diagram · 3 diagrams in section
