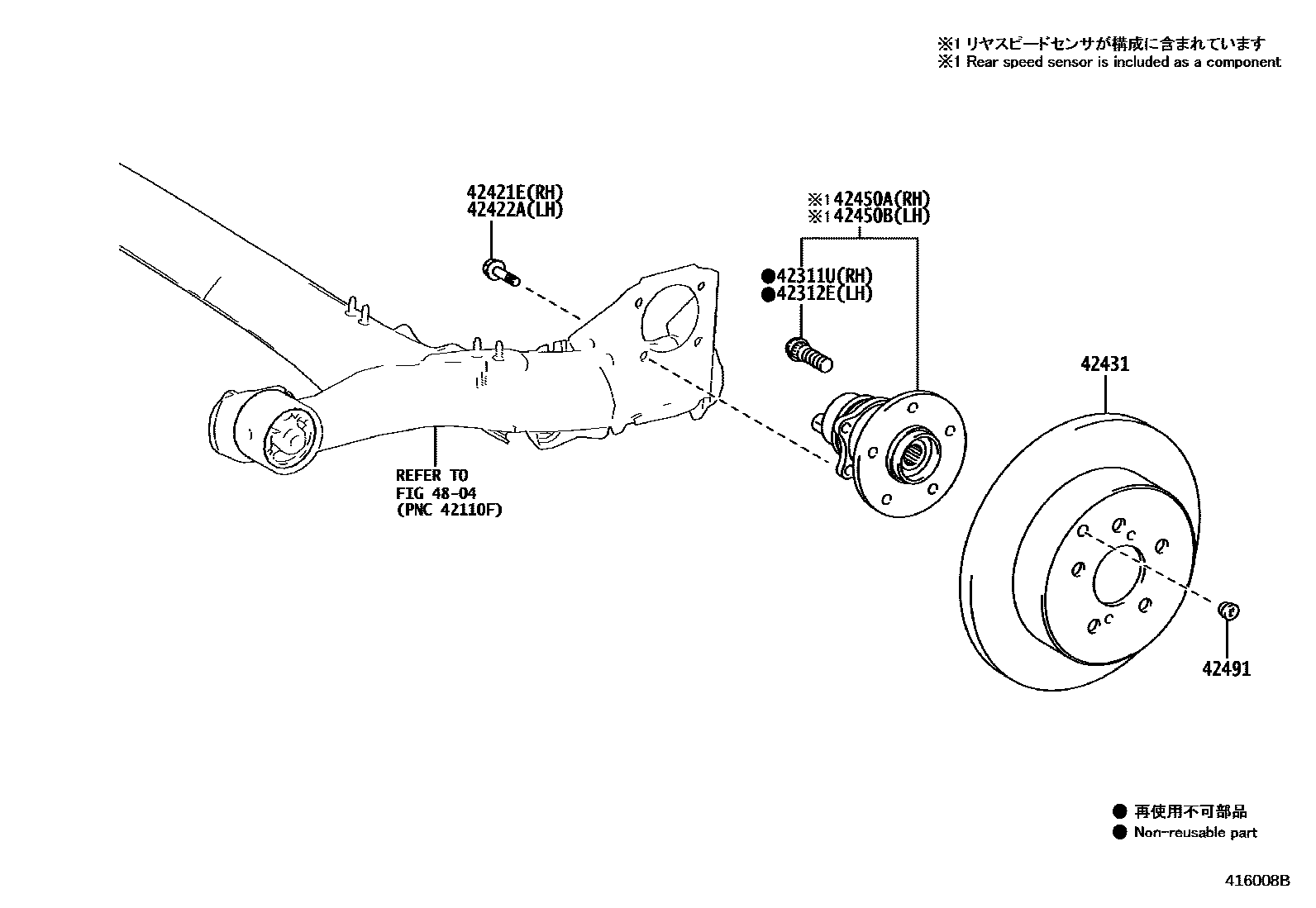

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02082×5iMXPC1#,MXPL1#202207

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02082×5iMXPC1#,MXPL1#202207

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10507×4iMXPC1#,MXPL10,12202207-202508

main90105-10619×4iMXPL15202207-202508

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10507×4iMXPC1#,MXPL10,12202207-202508

main90105-10619×4iMXPL15202207-202508

42431DISC, REAR

main42431-52130×2iMXPL1#202207-202508

main42431-52170×2iMXPC1#202207-202508

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52110iMXPL15202207-202508

main42450-52170iMXPC1#,MXPL10,12202207-202508

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52110iMXPL15202207-202508

main42450-52170iMXPC1#,MXPL10,12202207-202508

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020×2iMXPC1#,MXPL1#202207-202508

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

9 parts on this diagram · 3 diagrams in section
