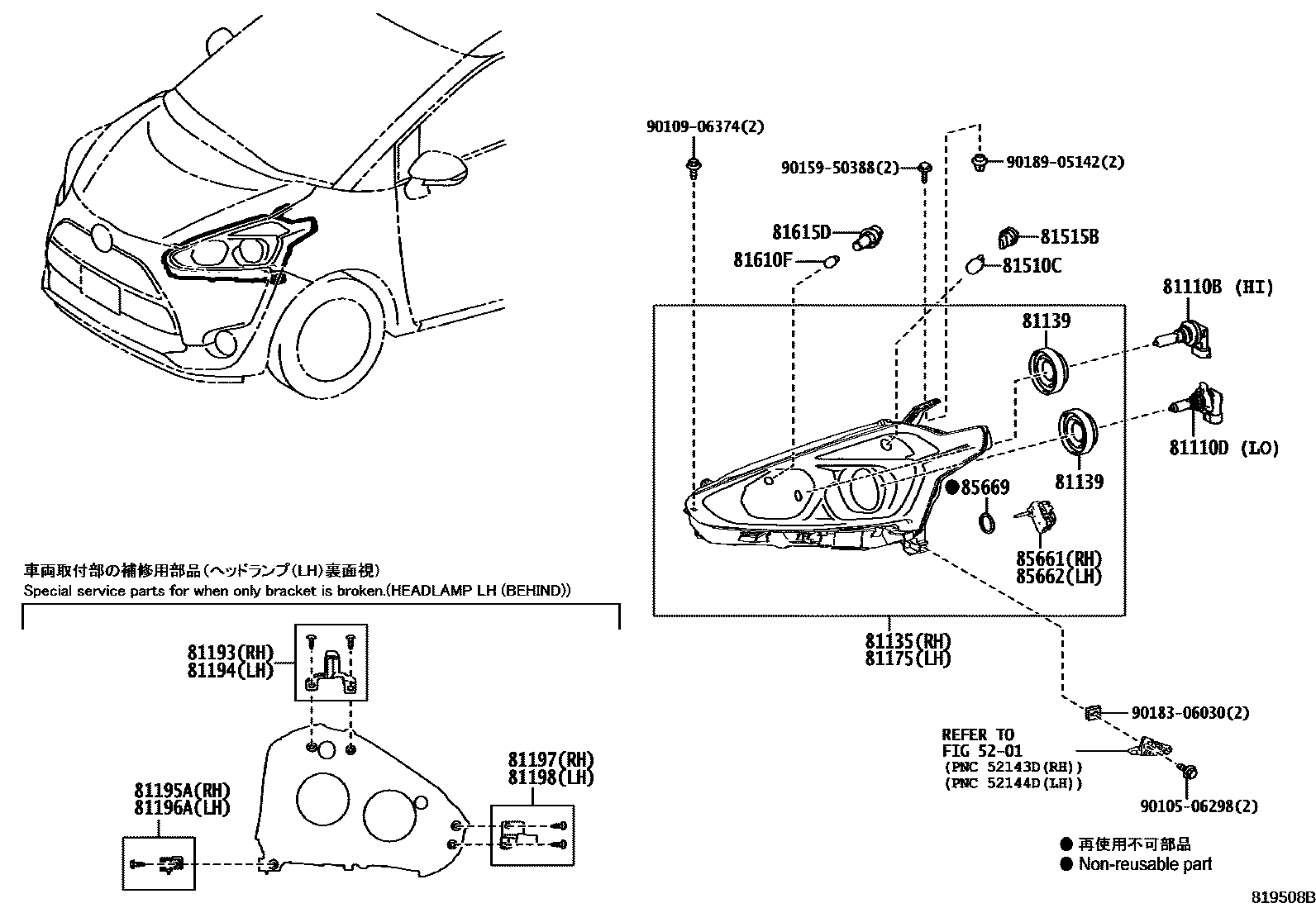

HEADLAMP

0001 1������������� 0002 1LED�������� 0003 1LED��������(����������=LED) 0004 1LED��������(����������=�����)

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iNCP175,NHP170,NSP17#201506-201809

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2iNCP175,NHP170,NSP17#..FNBSG,G,WKG201809-202006

81135UNIT ASSY, HEADLAMP, RH

main81130-52M90iNCP175,NHP170,NSP17#..FNBSG,G,WKG201809-202006

main81130-52N00supersedes 81130-52M90iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main81130-52K30supersedes 81130-52K20iNCP175,NHP170,NSP17#201506-201701

main81130-52K31supersedes 81130-52K20iNCP175,NHP170,NSP17#201701-201809

81139COVER, HEADLAMP SOCKET

main90075-65006×4iNCP175,NHP170,NSP17#201506-201809

81175UNIT ASSY, HEADLAMP, LH

main81070-52N90iNCP175,NHP170,NSP17#..FNBSG,G,WKG202006-202207

main81170-52M90iNCP175,NHP170,NSP17#..FNBSG,G,WKG201809-202006

main81170-52N00supersedes 81170-52M90iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main81170-52K30supersedes 81170-52K20iNCP175,NHP170,NSP17#201506-201701

main81170-52K31supersedes 81170-52K20iNCP175,NHP170,NSP17#201701-201809

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-52280supersedes 81193-52270iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-52270supersedes 81194-52260iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-52210supersedes 81195-52200iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-52190supersedes 81196-52180iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81197BRACKET, HEADLAMP, LOWER RH

main81197-52090supersedes 81197-52080iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81198BRACKET, HEADLAMP, LWR LH

main81198-52090supersedes 81198-52080iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15011×2supersedes 90981-15021iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81515BSOCKET, FRONT TURN SIGNAL LAMP

main81515-42050×2supersedes 90075-60028iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X; NCP175,NHP170,NSP17#..FNBSX,WKX,X; NCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP175,NHP170,NSP17#201506-201809

81615DSOCKET, CLEARANCE LAMP

main90075-60089×2iNCP175,NHP170,NSP17#201506-201809

85661MOTOR, HEADLAMP LEVELING, RH

main85661-12010iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X201809-202207

main85661-68011supersedes 85661-12010iNCP175,NHP170,NSP17#201506-201809

85662MOTOR, HEADLAMP LEVELING, LH

main85661-12010iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X201809-202207

main85661-68011supersedes 85661-12010iNCP175,NHP170,NSP17#201506-201809

85669PACKING, HEADLAMP LEVELING MOTOR BASE

main90075-99120×2iNCP175,NHP170,NSP17#..FNBSG,FNBSX,G,WKG,WKX,X201809-202207

9010506298

main90105-06298

9010906374

main90109-06374

9015950388

main90159-50388

9018306030

main90183-06030

9018905142

main90189-05142

24 parts on this diagram · 4 diagrams in section
