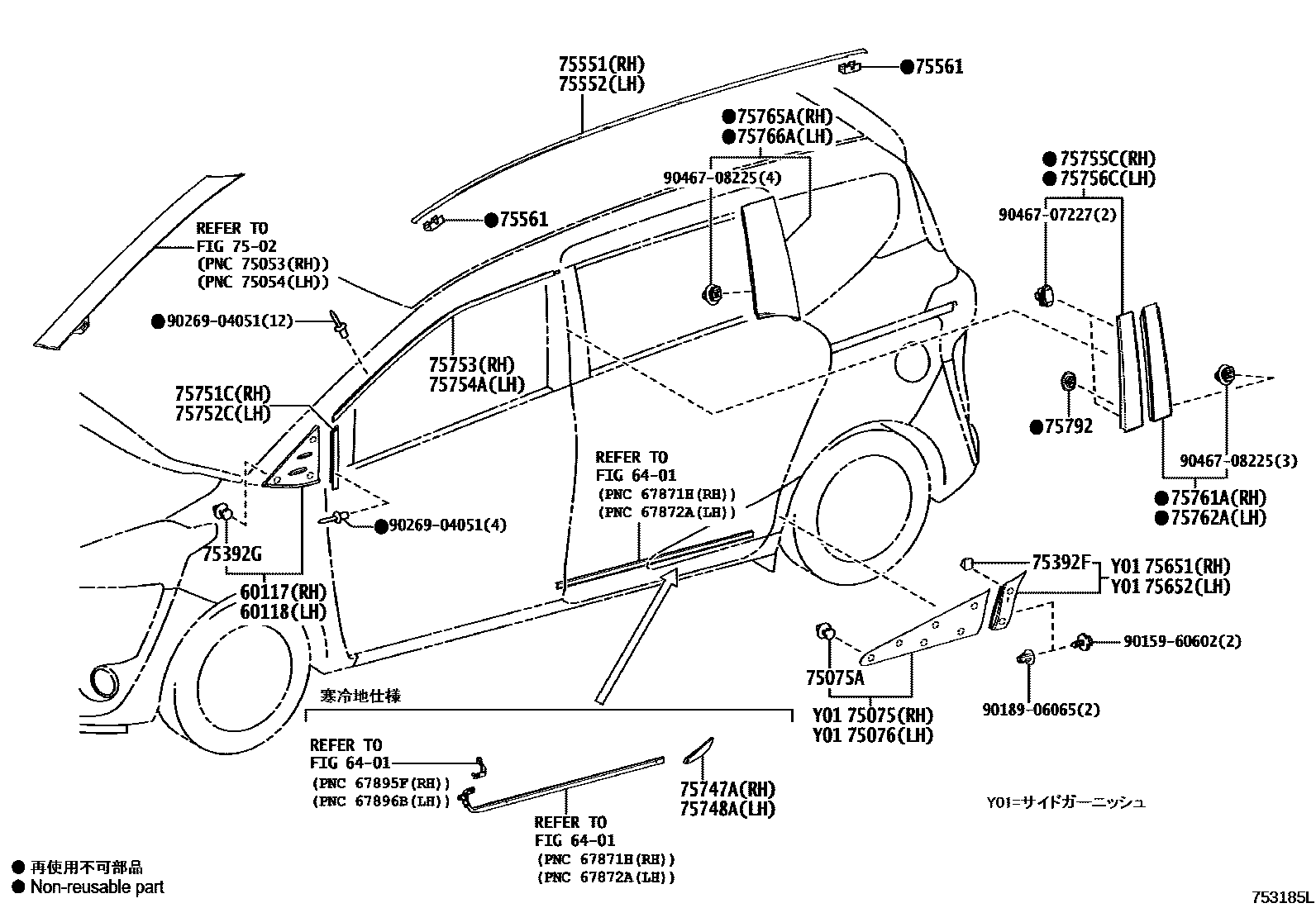

SIDE MOULDING

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-52110iNCP175,NHP170,NSP17#201506-202207

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-52100iNCP175,NHP170,NSP17#201506-202207

6401

7502

75075MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH

main75075-52050iNCP175,NHP170,NSP17#201506-202207

75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)

main90467-10162iNCP175,NHP170,NSP17#201506-202207

75076MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH

main75076-52050iNCP175,NHP170,NSP17#201506-202207

75392FRETAINER, OUTSIDE MOULDING

main76932-28030iNCP175,NHP170,NSP17#201506-202207

75392GRETAINER, OUTSIDE MOULDING, NO.1

main52562-58020iNCP175,NHP170,NSP17#201506-202207

75551MOULDING, ROOF DRIP SIDE FINISH, RH

main75551-52230iNCP175,NHP170,NSP17#201506-201809

main75551-52230iNCP175,NHP170,NSP17#201809-202207

75552MOULDING, ROOF DRIP SIDE FINISH, LH

main75552-52210iNCP175,NHP170,NSP17#201506-201809

main75552-52210iNCP175,NHP170,NSP17#201809-202207

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iNCP175,NHP170,NSP17#201506-202207

75651MOULDING, QUARTER, OUTSIDE RH

main75605-52030iNCP175,NHP170,NSP17#201506-202207

75652MOULDING, QUARTER, OUTSIDE LH

main75606-52030iNCP175,NHP170,NSP17#201506-202207

75747AMOULDING, REAR DOOR OUTSIDE, LOWER REAR RH

75748AMOULDING, REAR DOOR OUTSIDE, LOWER REAR LH

75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-52070iNCP175,NHP170,NSP17#201506-202207

75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-52060iNCP175,NHP170,NSP17#201506-202207

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-52030iNCP175,NHP170,NSP17#201506-202207

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-52020iNCP175,NHP170,NSP17#201506-202207

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-52070iNCP175,NHP170,NSP17#201506-201809

main75755-52070iNCP175,NHP170,NSP17#201809-202207

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-52050iNCP175,NHP170,NSP17#201506-201809

main75756-52050iNCP175,NHP170,NSP17#201809-202207

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-52040iNCP175,NHP170,NSP17#201506-201809

main75761-52040iNCP175,NHP170,NSP17#201809-202207

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-52050iNCP175,NHP170,NSP17#201506-201809

main75762-52050iNCP175,NHP170,NSP17#201809-202207

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-52050iNCP175,NHP170,NSP17#201506-202207

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-52060iNCP175,NHP170,NSP17#201506-202207

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iNCP175,NHP170,NSP17#201506-202207

9015960602

main90159-60602

9018906065

main90189-06065

9026904051

main90269-04051

9046707227

main90467-07227

9046708225

main90467-08225

32 parts on this diagram · 1 diagram in section
