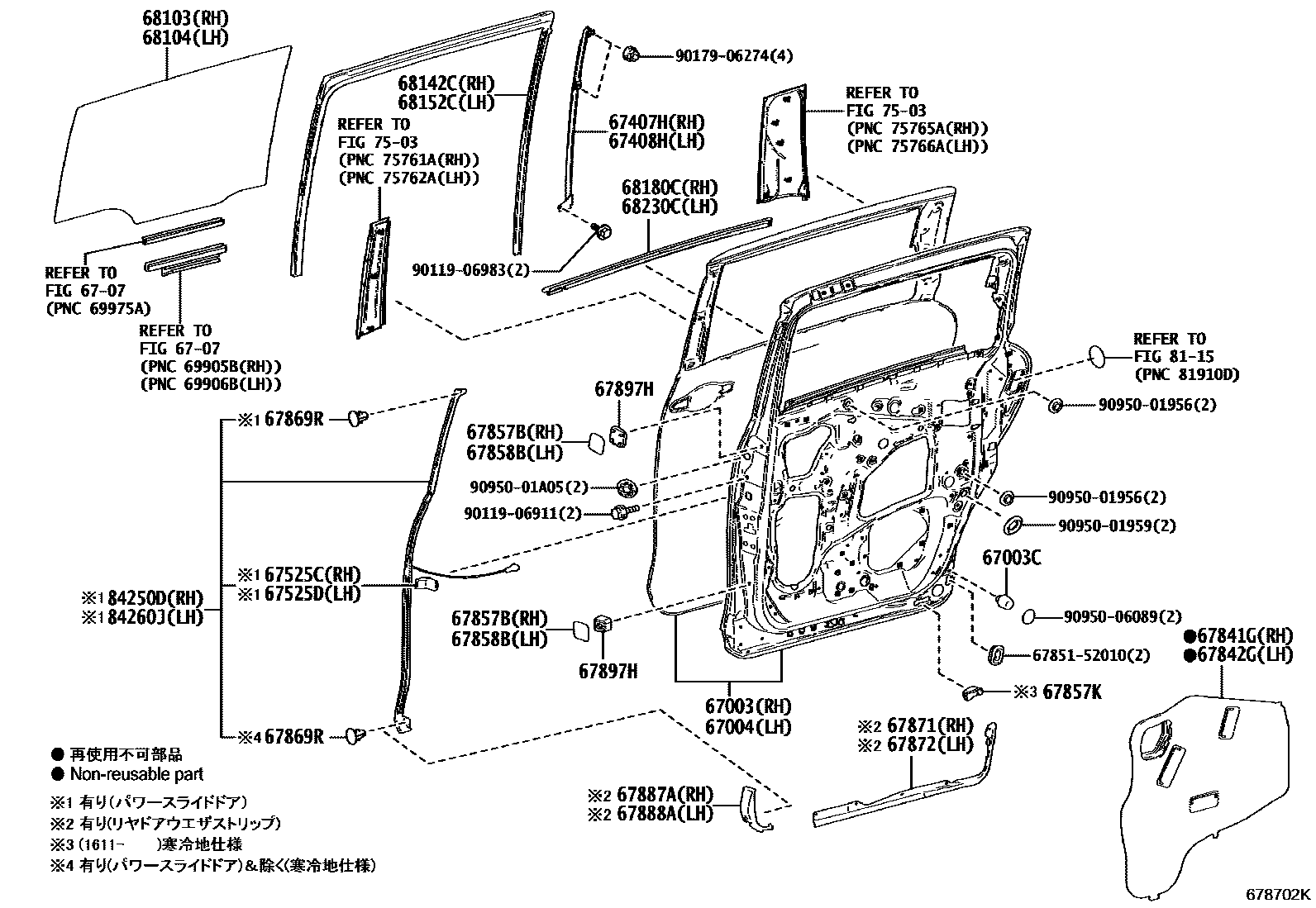

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-52590supersedes 67003-52570iNCP175,NHP170,NSP17#..G201611-201809

main67003-52600supersedes 67003-52580iNCP175,NHP170,NSP17#..FNBSX,WKX,X201809-202207

67003CCUSHION, REAR DOOR PANEL

main67897-52060×2iNCP175,NHP170,NSP17#201506-201809

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-52620iNCP175,NSP17#..X201506-201809

main67004-52630supersedes 67004-52610iNCP175,NHP170,NSP17#201611-201809

main67004-52640iNCP175,NSP17#..X201611-201809

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-52200iNCP175,NHP170,NSP17#201809-202207

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-52190iNCP175,NHP170,NSP17#201809-202207

67525CCOVER, SLIDE DOOR PANEL, LOWER RH

main67525-52010iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201809-202207

67525DCOVER, SLIDE DOOR PANEL, LOWER LH

main67526-52010iNCP175,NHP170,NSP17#201809-202207

67841GCOVER, SLIDE DOOR SERVICE HOLE, RH

main67841-52120iNCP175,NHP170,NSP17#201506-201809

main67841-52121iNCP175,NHP170,NSP17#202204-202207

67842GCOVER, SLIDE DOOR SERVICE HOLE, LH

main67842-52190iNCP175,NHP170,NSP17#201809-202203

main67842-52191iNCP175,NHP170,NSP17#202204-202207

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-52120iNCP175,NHP170,NSP17#201506-201809

main67857-52140iNCP175,NHP170,NSP17#201809-202207

67857KPROTECTOR, SLIDE DOOR PANEL

main67857-52150iNCP175,NHP170,NSP17#201611-201809

main67858-52130iNCP175,NHP170,NSP17#201611-201809

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-52110iNCP175,NHP170,NSP17#201506-201809

main67858-52120iNCP175,NHP170,NSP17#201809-202207

67869RCLIP(FOR POWER SLIDE DOOR SENSOR)

main67869-28020×2iNCP175,NHP170,NSP17#..G; NCP175,NHP170,NSP17#..X201702-201809

67871WEATHERSTRIP, REAR DOOR, RH

main67871-52250iNCP175,NHP170,NSP17#; NCP175,NSP17#..X201611-201708

main67871-52251iNCP175,NHP170,NSP17#; NCP175,NSP17#..X201708-201809

67872WEATHERSTRIP, REAR DOOR, LH

main67872-52250iNCP175,NHP170,NSP17#; NCP175,NSP17#..X201611-201708

main67872-52251iNCP175,NHP170,NSP17#; NCP175,NSP17#..X201708-201809

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-52040iNCP175,NHP170,NSP17#..X; NCP175,NSP17#..X201611-201708

main67887-52041iNCP175,NHP170,NSP17#..X; NCP175,NSP17#..X201708-201809

main67887-52050iNCP175,NHP170,NSP17#..G201611-201708

main67887-52051iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201809-202207

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-52060iNCP175,NSP17#..X201611-201708

main67888-52061iNCP175,NSP17#..X201708-201809

main67888-52070iNCP175,NHP170,NSP17#201611-201708

main67888-52071iNCP175,NHP170,NSP17#201809-202207

67897HCUSHION, REAR DOOR

main67897-52040×2iNCP175,NHP170,NSP17#201809-202207

main67897-52050×2iNCP175,NHP170,NSP17#201506-201809

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-52380iNCP175,NHP170,NSP17#201506-201809

main68113-52370iNCP175,NSP170..X201506-201809

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-52410iNCP175,NHP170,NSP17#201506-201809

main68114-52400iNCP175,NSP170..X201506-201809

68142CRUN, REAR DOOR GLASS, RH

main68142-52210iNCP175,NHP170,NSP17#201506-201809

68152CRUN, REAR DOOR GLASS, LH

main68152-52220iNCP175,NHP170,NSP17#201506-201809

68180CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH

main68180-52190iNCP175,NHP170,NSP17#201506-201809

main68180-52191iNCP175,NHP170,NSP17#201910-202207

68230CWEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH

main68230-52190iNCP175,NHP170,NSP17#201506-201809

main68230-52191iNCP175,NHP170,NSP17#201910-202207

7503SIDE MOULDING

→ Go to FIG 75-03

8115REFLEX REFLECTOR

→ Go to FIG 81-15

84250DSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-52160supersedes 84250-52280iNCP175,NHP170,NSP17#..FNBSG,FNGCR,G,GCERO,WKG201809-202207

84260JSENSOR ASSY, POWER SLIDE DOOR, LH

main84260-52040iNCP175,NHP170,NSP17#; NCP175,NSP17#..X; NSP172..X201506-201809

main84260-52050supersedes 84260-52040iNCP175,NHP170,NSP17#201809-202207

6785152010WEATHERSTRIP, CENTER DOOR, SIDE, FRONT

main67851-52010

9011906911

main90119-06911

9011906983

main90119-06983

9017906274

main90179-06274

9095001956

main90950-01956

9095001959

main90950-01959

9095001A05

main90950-01A05

9095006089

main90950-06089

37 parts on this diagram · 2 diagrams in section
