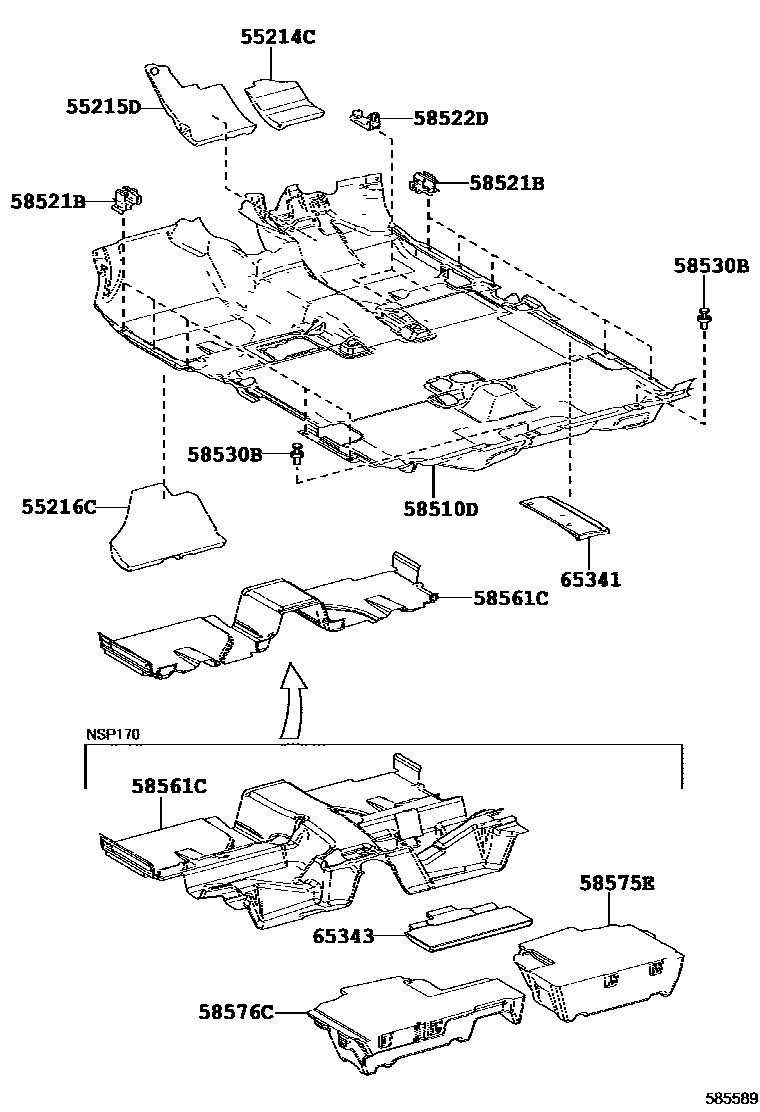

MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
55216CPAD, DASH PANEL INSULATOR, NO.4
58510DCARPET ASSY, FLOOR, FRONT
GRAY,TRIM0#,2#
GRAY,TRIM0#,2#
GRAY,TRIM0#,2#,4#
GRAY,TRIM2#
GRAY,TRIM2#
GRAY,TRIM0#,2#
GRAY,TRIM0#,2#,4#
GRAY,TRIM0#,2#
GRAY,TRIM0#,2#,4#
GRAY,TRIM2#
GRAY,TRIM2#,4#
GRAY,TRIM2#
GRAY,TRIM2#,4#
GRAY,TRIM2#
58521BHOOK, FLOOR CARPET
58522DHOOK, FLOOR CARPET, NO.2
58530BCLIP(FOR FRONT FLOOR CARPET)
58561CSILENCER, FRONT FLOOR, NO.1
58575EPAD, FRONT FLOOR, REAR NO.1
58576CPAD, FRONT FLOOR, REAR NO.2
65341BOARD, FLOOR, NO.1
BLACK
65343BOARD, FLOOR, NO.3
12 parts on this diagram · 3 diagrams in section
