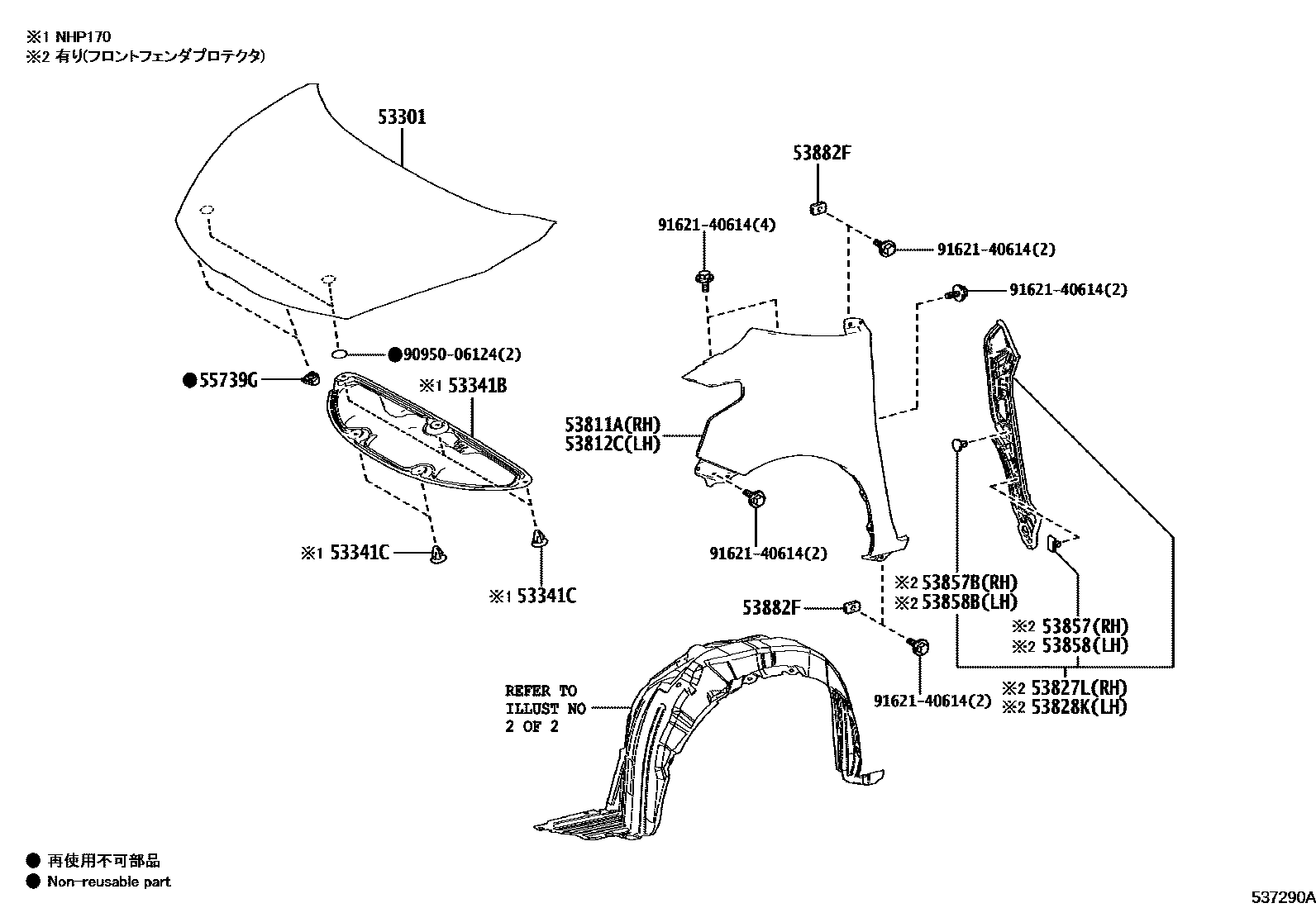

HOOD & FRONT FENDER

0001 1 0002 1��������

53301HOOD SUB-ASSY

main53301-52390iNCP175,NHP170,NSP17#201809-202207

53341BINSULATOR, HOOD

main53341-52230iNHP170201507-201809

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×5iNHP170201507-201809

53811APANEL, FRONT FENDER, RH

main53811-52480iNCP175,NHP170,NSP17#201506-201809

53812CPANEL, FRONT FENDER, LH

main53812-52480iNCP175,NHP170,NSP17#201809-202207

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-52170iNHP170201507-201809

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-52180iNHP170201507-201809

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iNHP170201507-201809

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNHP170201507-201809

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iNHP170201507-201809

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNHP170201507-201809

53882FSEAL, FRONT FENDER

main53882-16030×4iNCP175,NHP170,NSP17#201506-201809

55739GSTOPPER, HOOD

main55738-52050×2iNCP175,NHP170,NSP17#201506-201809

9095006124

main90950-06124

9162140614

main91621-40614

15 parts on this diagram · 2 diagrams in section
