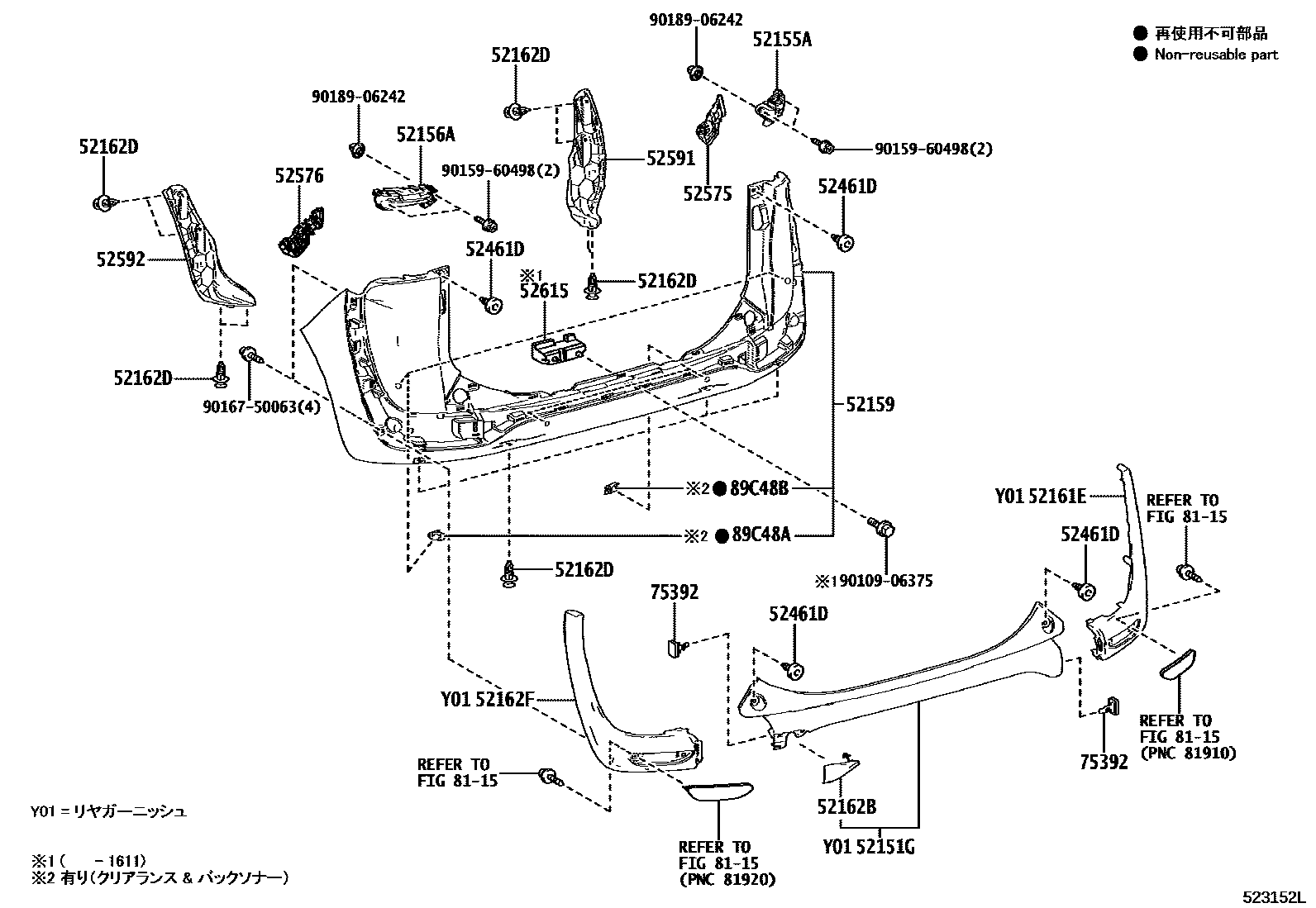

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52151GEXTENSION, REAR BUMPER

main52151-52010iNCP175,NHP170,NSP170201809-202207

main52151-52030-E1iNCP175,NHP170,NSP170201506-201809

main52151-52030-J1iNCP175,NHP170,NSP170201506-201809

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-52130iNCP175,NHP170,NSP17#201506-201605

main52155-52131iNCP175,NHP170,NSP17#201606-201809

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-52130iNCP175,NHP170,NSP17#201506-201809

52159COVER, REAR BUMPER

main52159-52770-A0iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

WHITE PEARL CS.,070 ,2SF

main52159-52770-B0iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

SILVER ME.,1F7

main52159-52770-C0iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

BLACK MC.,209

main52159-52770-D1iNCP175,NHP170,NSP170201506-201809

RED M.M.,3T8

main52159-52770-D2iNCP175..G;NHP170,NSP170..07S..G201708-201809

COOL BORDEAUX GF.,3T9

main52159-52770-D3iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

RED MC.,2PN ,3T3

main52159-52770-E1iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

VINTAGE BROWN PEARL CS.,2SJ ,4X4

main52159-52770-E2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

BEIGE,2SG ,4V6

main52159-52770-F1iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X201809-202207

AIR YELLOW,2SH ,5B6

main52159-52770-J0iNCP175,NHP170,NSP170201506-201809

BLUE ME.,8T7

main52159-52770-J1iNCP175,NHP170,NSP170..FNBSG,G201910-202106

GRAYISH BLUE,8W2

main52159-52987-A0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

WHITE PEARL CS.,070 ,2SF

main52159-52987-B0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

SILVER ME.,1F7

main52159-52987-C0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

BLACK MC.,209

main52159-52987-D0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

RED MC.,2PN ,3T3

main52159-52987-E0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

BEIGE,2SG ,4V6

main52159-52987-E1iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NHP170,NSP170..FNGCR202006-202207

main52159-52987-E4supersedes 52159-52770-E3iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main52159-52987-F0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

AIR YELLOW,2SH ,5B6

main52159-52987-G0supersedes 52159-52770-G2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202106

RADIANT GREEN ME.,2SK ,6W9

main52159-52987-J0supersedes 52159-52770-J0iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..GCERO201809-202006

main52159-52987-J3supersedes 52159-52770-J2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main52159-52770-G1iNCP175,NHP170,NSP170201506-201809

main52159-52987-J1iNCP175,NHP170,NSP170..FNBSG,G201910-202006

52161EEXTENSION, REAR BUMPER SIDE, RH

main52161-52170iNCP175,NHP170,NSP17#201506-201809

main52161-52180-E1iNCP175,NHP170,NSP170201506-201809

main52161-52180-J1iNCP175,NHP170,NSP170201506-201809

52162BPLATE, REAR BUMPER, NO.1

main52162-52180iNCP175,NHP170,NSP170201506-201809

main52162-52190-E1iNCP175,NHP170,NSP170201506-201809

main52162-52190-J1iNCP175,NHP170,NSP170201506-201809

52162DPIECE, REAR BUMPER

main52161-16010×16iNCP175,NHP170,NSP170; NSP172201506-201809

52162FEXTENSION, REAR BUMPER SIDE, LH

main52162-52150iNCP175,NHP170,NSP17#201506-201809

main52162-52170-E1iNCP175,NHP170,NSP170201506-201809

main52162-52170-J1iNCP175,NHP170,NSP170201506-201809

52461DCUSHION, REAR BUMPER

main52461-52020×4iNCP175,NHP170,NSP17#201809-202207

52575RETAINER, REAR BUMPER SIDE, RH

main52575-52200iNCP175,NHP170,NSP17#201506-201809

52576RETAINER, REAR BUMPER SIDE, LH

main52576-52180iNCP175,NHP170,NSP17#201506-201809

52591SEAL, REAR BUMPER SIDE, RH

main52591-52360iNCP175,NHP170,NSP17#201506-201809

52592SEAL, REAR BUMPER SIDE, LH

main52592-52350iNCP175,NHP170,NSP17#201506-201809

52615ABSORBER, REAR BUMPER ENERGY

main52615-52080iNCP175,NHP170,NSP170201506-201611

75392RETAINER, OUTSIDE MOULDING

main75392-35200×2iNCP175,NHP170,NSP170; NSP172201506-201809

8115REFLEX REFLECTOR

→ Go to FIG 81-15

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-42110-A1×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

WHITE PEARL CS.,070 ,2SF

main89348-42110-B2×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

SILVER ME.,1F7

main89348-42110-C1×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

BLACK MC.,209

main89348-42110-D0×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

RED MC.,2PN ,3T3

main89348-42110-E1×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

BEIGE,2SG ,4V6

main89348-42110-E2×2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NHP170,NSP170..FNGCR202006-202207

main89348-42110-E5×2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main89348-42110-F0×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

AIR YELLOW,2SH ,5B6

main89348-42110-G2×2iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202106

RADIANT GREEN ME.,2SK ,6W9

main89348-42110-J2×2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..GCERO201809-202006

main89348-42110-J4×2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main89348-42110-J3×2iNCP175,NHP170,NSP170..FNBSG,G201910-202006

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-52050-A0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52050-B0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52050-C0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52050-D0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52050-E0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52050-E1iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NHP170,NSP170..FNGCR202006-202207

main89348-52050-E2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main89348-52050-F0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52050-G0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202106

main89348-52050-J0iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..GCERO201809-202006

main89348-52050-J2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main89348-52060-A0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52060-B0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52060-C0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52060-D0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52060-E0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52060-E1iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NHP170,NSP170..FNGCR202006-202207

main89348-52060-E2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main89348-52060-F0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202207

main89348-52060-G0iNCP175,NHP170,NSP170..FNGCR,GCERO201809-202106

main89348-52060-J0iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..GCERO201809-202006

main89348-52060-J2iNCP175,NHP170,NSP170..FNBSG,FNBSX,G,X; NCP175,NHP170,NSP170..FNGCR,GCERO202006-202207

main89348-52050-J1iNCP175,NHP170,NSP170..FNBSG,G201910-202006

main89348-52060-J1iNCP175,NHP170,NSP170..FNBSG,G202006-202207

9010906375

main90109-06375

9015960498

main90159-60498

9016750063

main90167-50063

9018906242

main90189-06242

22 parts on this diagram · 2 diagrams in section
