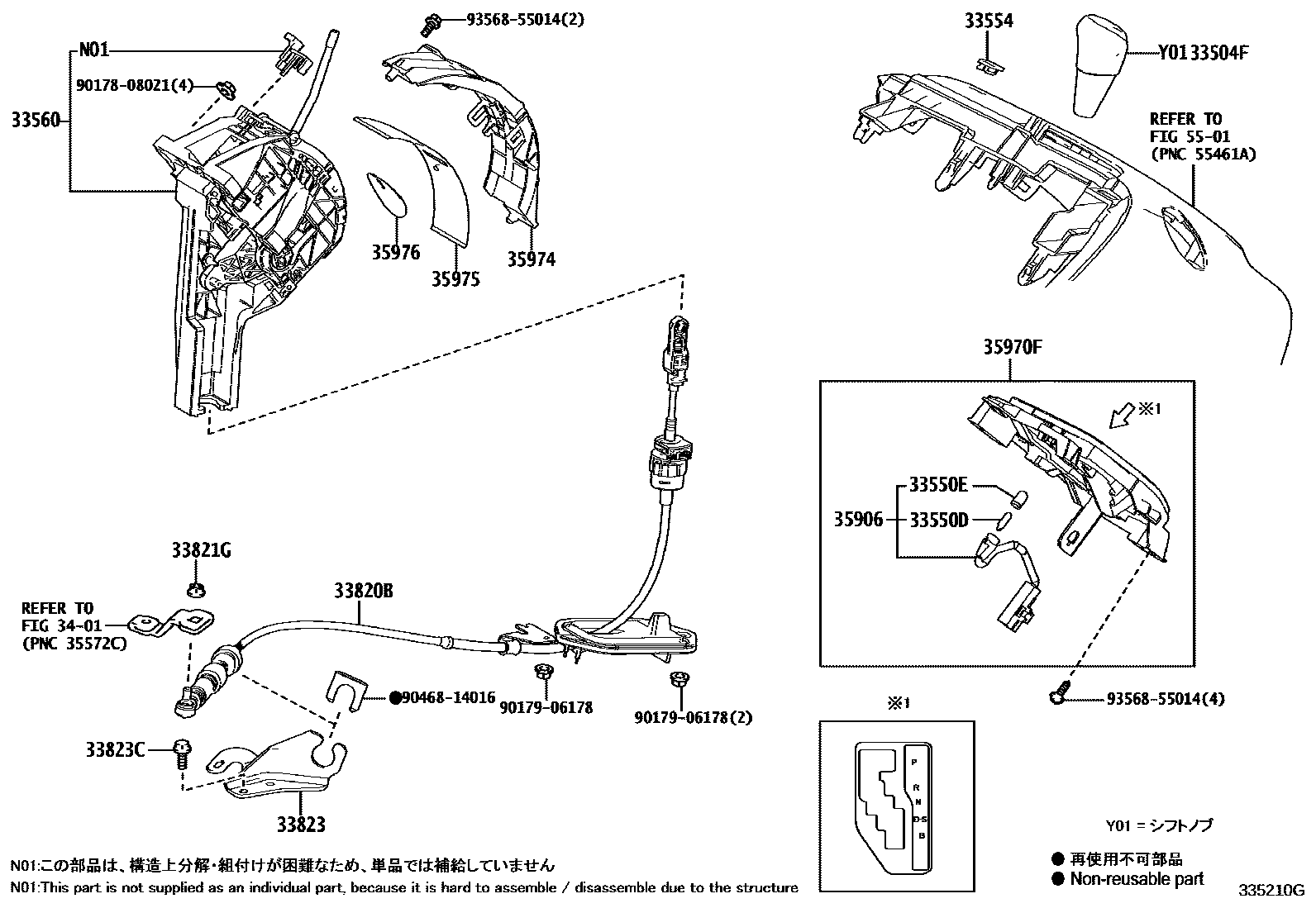

SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK & STITCH NO.201,TRIM2#
BLACK & STITCH NO.201,TRIM0#,2#,4#
BLACK & STITCH NO.201,TRIM0#,2#
BLACK & STITCH NO.201,TRIM2#,4#
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33554CAP, SHIFT LEVER
FROMAGE,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#,4#
33560UNIT ASSY, SHIFT LOCK CONTROL
33820BCABLE ASSY, TRANSMISSION CONTROL
33821GNUT (FOR TRANSMISSION CONTROL CABLE)
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
3401
35906WIRE SUB-ASSY, INDICATOR LAMP
35970FHOUSING ASSY, POSITION INDICATOR
BLACK,TRIM0#,2#
BLACK,TRIM2#
BLACK,TRIM0#,2#
BLACK,TRIM2#
SATIN CHROME,TRIM0#,2#
SATIN CHROME,TRIM2#,4#
SATIN CHROME,TRIM0#,2#,4#
SATIN CHROME,TRIM2#
SATIN CHROME,TRIM2#
SATIN CHROME,TRIM0#,2#,4#
SATIN CHROME,TRIM2#,4#
SATIN CHROME,TRIM0#,2#
35974HOUSING, POSITION INDICATOR, LOWER
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
5501
9017808021
main90178-08021
9017906178
main90179-06178
9046814016
main90468-14016
9356855014
main93568-55014
20 parts on this diagram · 3 diagrams in section
