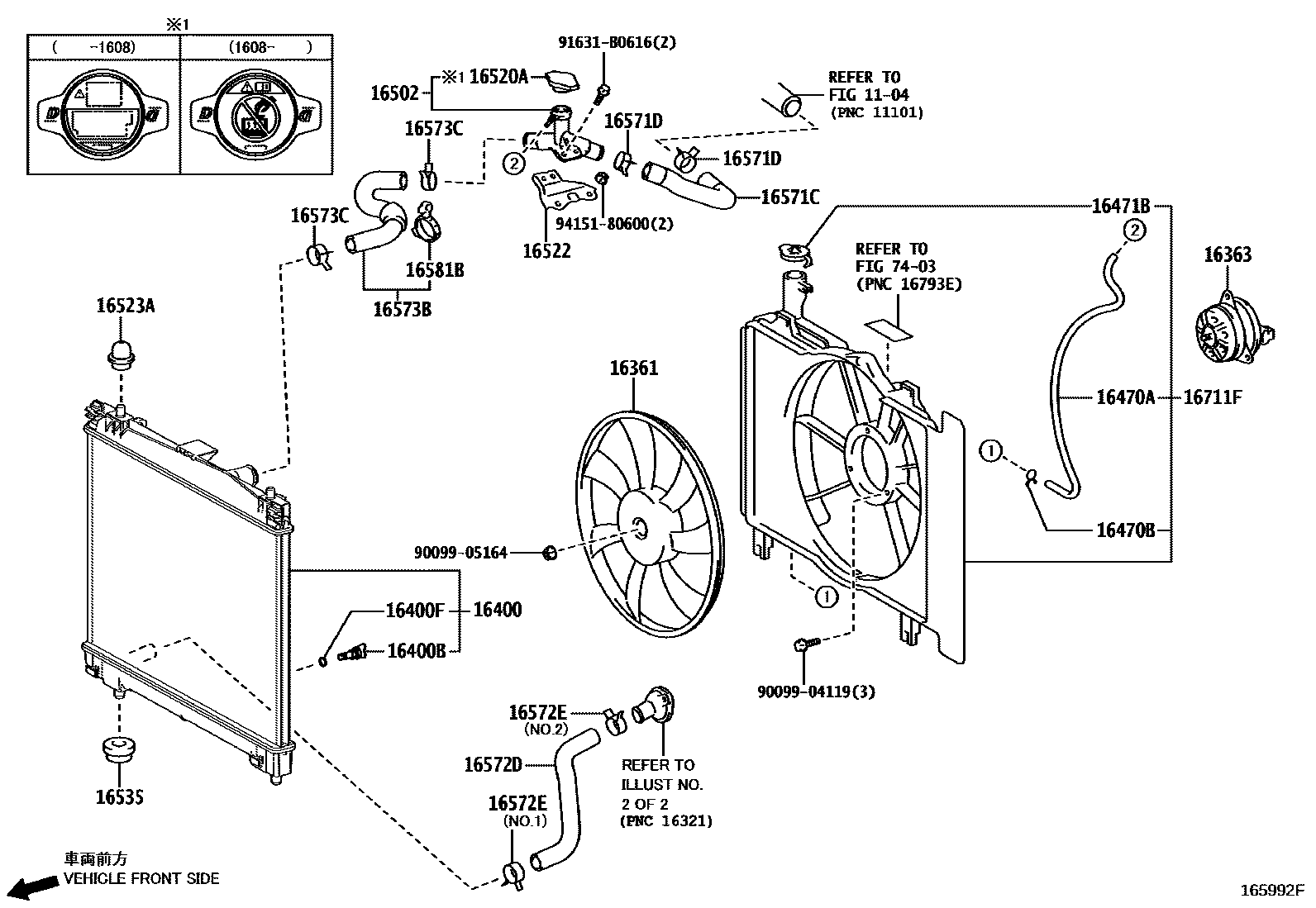

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104CYLINDER HEAD

→ Go to FIG 11-04

16361FAN

main16361-21090i1NZFE..NCP175201506-201809

main16361-21130i1NZFXE..NHP170201507-201809

main16361-47040i2NRFKE..NSP17#201506-201809

16363MOTOR, COOLING FAN

main16363-21070i1NZFXE..NHP170201507-201809

main16363-21100i1NZFE..NCP175201506-201809

main16363-47020i2NRFKE..NSP17#201506-201809

16400RADIATOR ASSY

main16400-21270i1NZFE..NCP175201506-201801

main16400-21350i1NZFXE..NHP170201809-202207

main16400-21381i1NZFE..NCP175201802-201809

main16400-47110i2NRFKE..NSP17#201506-201809

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21190i1NZFXE..NHP170201809-202207

main16377-21220i1NZFE..NCP175201809-202207

main16378-47090i2NRFKE..NSP17#201506-201809

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16471BCAP, RESERVE TANK

main16471-23030i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16502FILLER SUB-ASSY, WATER

main16502-21080i1NZFE..NCP175201506-201809

16520ACAP SUB-ASSY, WATER FILLER

main16401-31520i1NZFE..NCP175201506-201608

main16401-36020i1NZFE..NCP175201608-201809

16522BRACKET, WATER FILLER

main16522-21010i1NZFE..NCP175201506-201809

16523ACUSHION, RADIATOR SUPPORT

main16523-21030×2i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16535SUPPORT, RADIATOR, LOWER

main90480-22025×2i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16571CHOSE, RADIATOR, NO.1

main16571-21120i1NZFE..NCP175201506-201809

main16571-21180i1NZFXE..NHP170201809-202207

main16571-47080i2NRFKE..NSP17#201506-201801

main16571-47120i2NRFKE..NSP17#201809-202207

16571DCLIP, RADIATOR HOSE, NO.1

main96136-43901×2i1NZ#,2NRFKE..NCP175,NHP170,NSP17#201506-201809

16572DHOSE, RADIATOR, NO.2

main16572-21090i1NZFE..NCP175201809-202207

main16572-21130i1NZFXE..NHP170201507-201711

main16572-21131i1NZFXE..NHP170201712-201809

main16572-47101i2NRFKE..NSP17#201506-201801

main16572-47102i2NRFKE..NSP17#201809-202207

16572ECLIP, RADIATOR HOSE, NO.2

main90467-33006i1NZFE,2NRFKE..NCP175,NSP17#201506-201809

main96136-43901i1NZFE,2NRFKE..NCP175,NSP17#201506-201809

16573BHOSE, RADIATOR, NO.3

main16573-21110i1NZFE..NCP175201809-202207

main16573-21130i1NZFXE..NHP170201507-201807

main16573-21131i1NZFXE..NHP170201808-201809

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006i1NZFXE..NHP170201507-201809

main96136-43601i1NZFXE..NHP170201809-202207

main96136-43901×2i1NZFE..NCP175201506-201809

16581CLAMP, HOSE(FOR WATER HOSE)

main16581-21020i1NZFE..NCP175201506-201809

main16581-21030i1NZFE..NCP175201506-201809

main16581-21070i1NZFE..NCP175201506-201809

16581BCLAMP, HOSE(FOR RADIATOR HOSE)

main16581-21140i1NZFE..NCP175201809-202207

16711FSHROUD, FAN(W/RADIATOR RESERVE TANK)

main16711-21170i1NZFE..NCP175201506-201809

main16711-21180i1NZFXE..NHP170201507-201809

main16711-47100i2NRFKE..NSP17#201506-201809

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9009904119

main90099-04119

9009905164

main90099-05164

91631B0616

main91631-B0616

9415180600

main94151-80600

28 parts on this diagram · 6 diagrams in section
