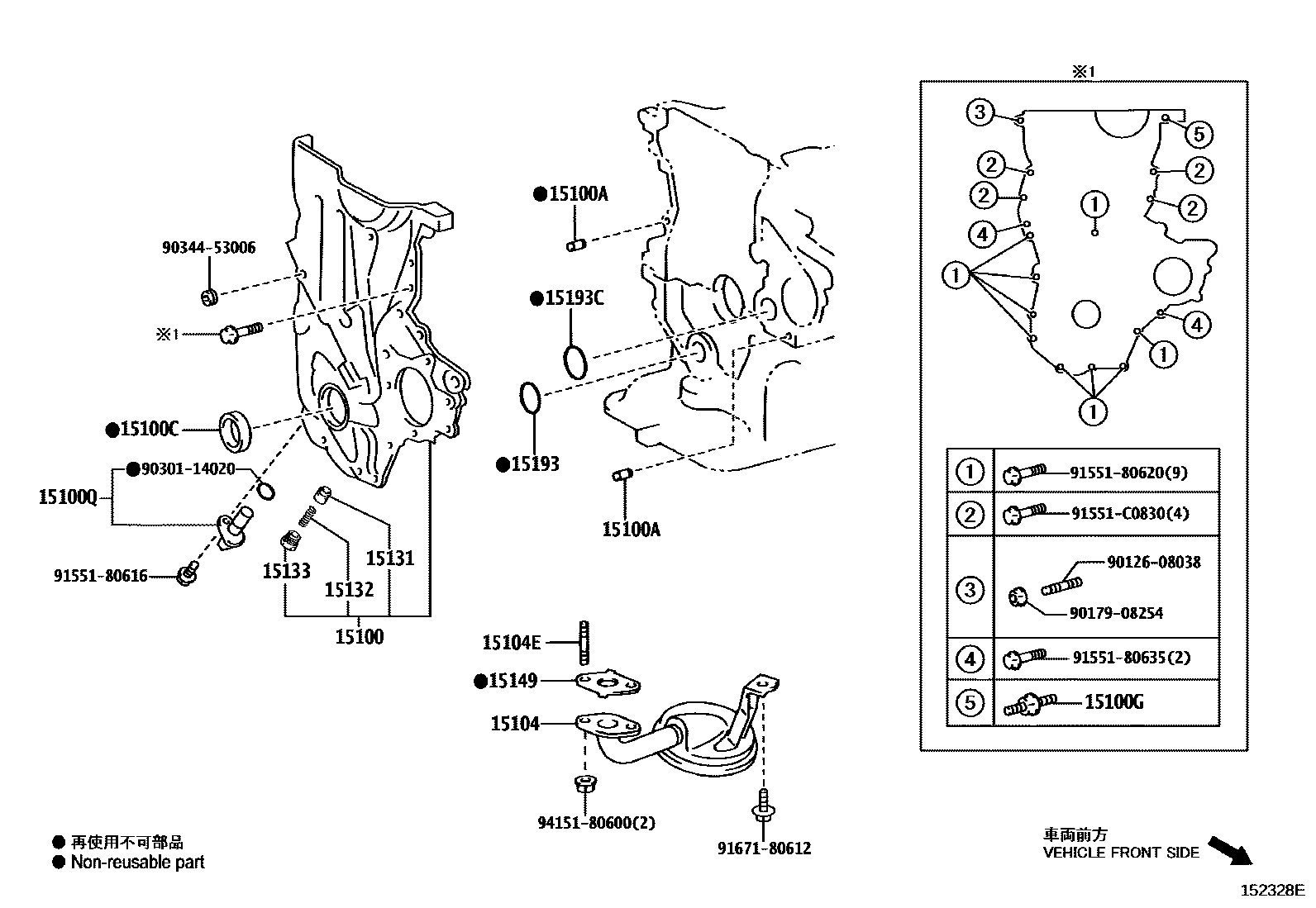

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15100PUMP ASSY, OIL

main15100-21062i1NZFE..NCP175201506-202207

main15100-21072i1NZFXE..NHP170201507-202207

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NCP175201506-202207

15100CSEAL(FOR OIL PUMP)

main90311-25033i1NZ#..NCP175,NHP170201506-202207

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NCP175201506-202207

15100QSENSOR, CRANK POSITION

main90919-05087i1NZ#..NCP175,NHP170201506-202207

15104STRAINER SUB-ASSY, OIL

main15104-21022i1NZ#..NCP175,NHP170201506-202207

main15104-47060i2NRFKE..NSP17#201506-202207

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZ#..NCP175,NHP170201506-202207

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZ#..NCP175,NHP170201506-202207

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21050i1NZFXE..NHP170201507-202207

main15132-21060i1NZFE..NCP175201506-202207

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21030i1NZ#..NCP175,NHP170201506-202207

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZ#..NCP175,NHP170201506-202207

15193GASKET, OIL PUMP

main12151-21010i1NZ#..NCP175,NHP170201506-202207

15193CGASKET, OIL PUMP NO.2

main11497-21010i1NZ#..NCP175,NHP170201506-202207

9012608038

main90126-08038

9017908254

main90179-08254

9030114020

main90301-14020

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

23 parts on this diagram · 3 diagrams in section
