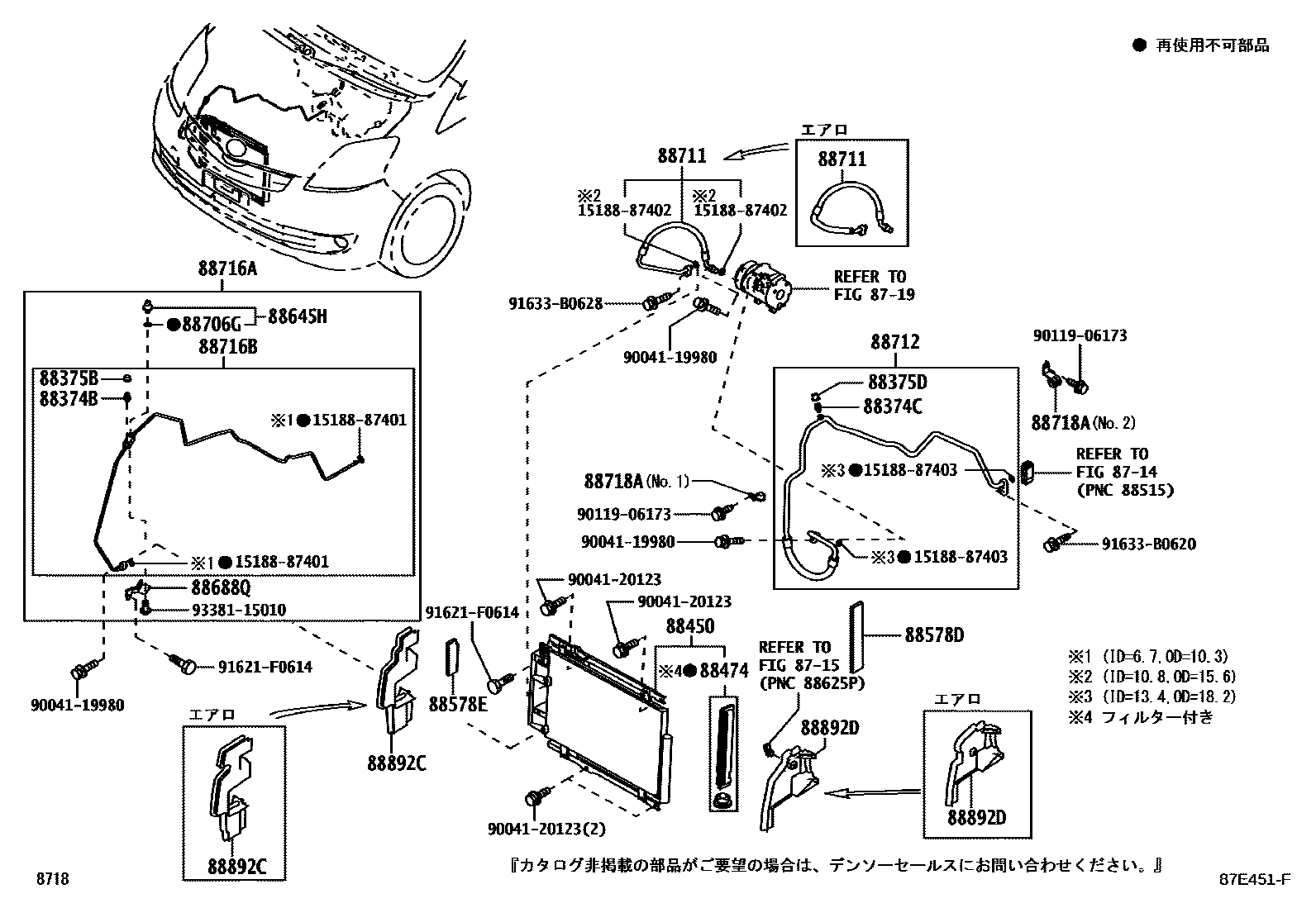

HEATING & AIR CONDITIONING - COOLER PIPING

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-87601iM502,512200812

88374CVALVE, SERVICE, NO.2

main88374-87601iM502,512200812

88375BCAP, SERVICE VALVE, NO.1

main88375-87603iM502,512200812

88375DCAP, SERVICE VALVE, NO.2

main88375-87601iM502,512200812

88450CONDENSER ASSY, W/RECEIVER

main88450-B1060iM502,512200812

88474DRYER, COOLER

main88474-17010iM502,512200812-201203

88578DPACKING, COOLER PIPE, NO.1

main88578-B1340iM502,512200812

88578EPACKING, COOLER PIPE, NO.2

main88578-B1350iM502,512200812

88645HSWITCH, PRESSURE NO.1

main88645-20050iM502,512200812

88688QBRACKET (FOR MAGNET VALVE)

main88688-B1060iM502,512200812

88706GRING, O(FOR LIQUID TUBE)

main15188-B5090iM502,512200812-201203

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-B1100iM502,512..G,X200812

main88711-B1170iM502,512..S,SC200812

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-B1150iM502,512200812

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-B1160iM502,512200812

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-B1220iM502,512200812

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-B1050iM502,512200812

main88718-B1060iM502,512200812

88892CPLATE, CONDENSER, NO.1

main88892-B1140iM502,512..G,X200812

main88892-B1200iM502,512..S,SC200812

88892DPLATE, CONDENSER, NO.2

main88892-B1150iM502,512..G,X200812

main88892-B1210iM502,512..S,SC200812

1518887401GASKET, OIL PUMP

main15188-87401

1518887402GASKET, OIL PUMP

main15188-87402

1518887403GASKET, OIL PUMP

main15188-87403

9004119980

main90041-19980

9004120123

main90041-20123

9011906173

main90119-06173

91621F0614

main91621-F0614

91633B0620

main91633-B0620

91633B0628

main91633-B0628

9338115010

main93381-15010

31 parts on this diagram · 1 diagram in section
