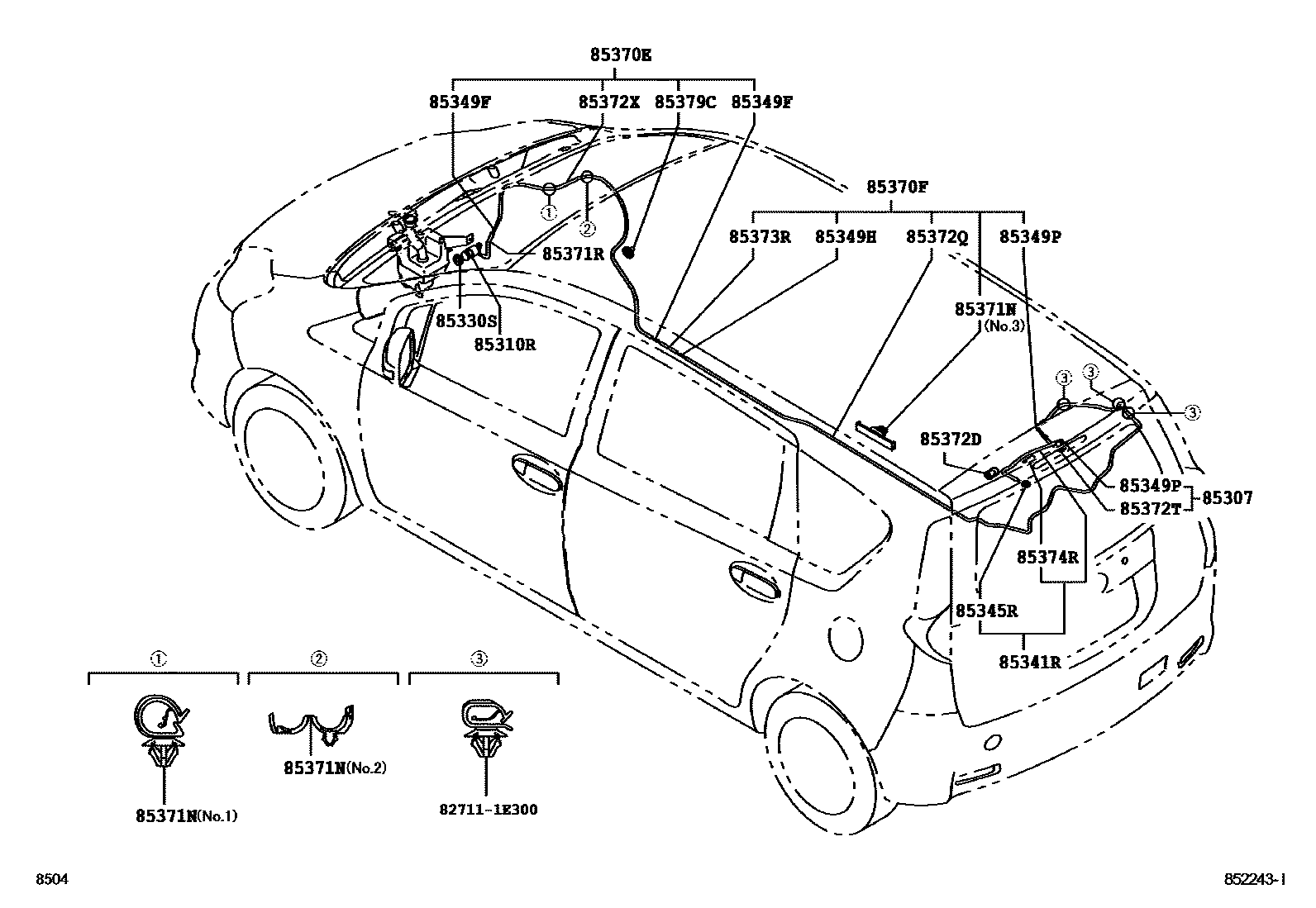

REAR WASHER
85307GROMMET SUB-ASSY, WASHER
85310RMOTOR ASSY, REAR WASHER
85330SBUSH, REAR WASHER JAR
85341RNOZZLE ASSY, WASHER
85345RNOZZLE, REAR WASHER
85349FJOINT, REAR WASHER HOSE, NO.1
85349HJOINT, REAR WASHER HOSE, NO.3
85349PJOINT, REAR WASHER ELBOW, NO.3
85370EHOSE ASSY, REAR WASHER, NO.2
85370FHOSE ASSY, REAR WASHER, NO.3
85371NCLAMP, REAR WASHER HOSE
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
85372DGROMMET, REAR WASHER HOSE
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85372TGROMMET, WASHER
85372XHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85374RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
85379CGROMMET, REAR WASHER HOSE NO.1
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
20 parts on this diagram · 1 diagram in section
