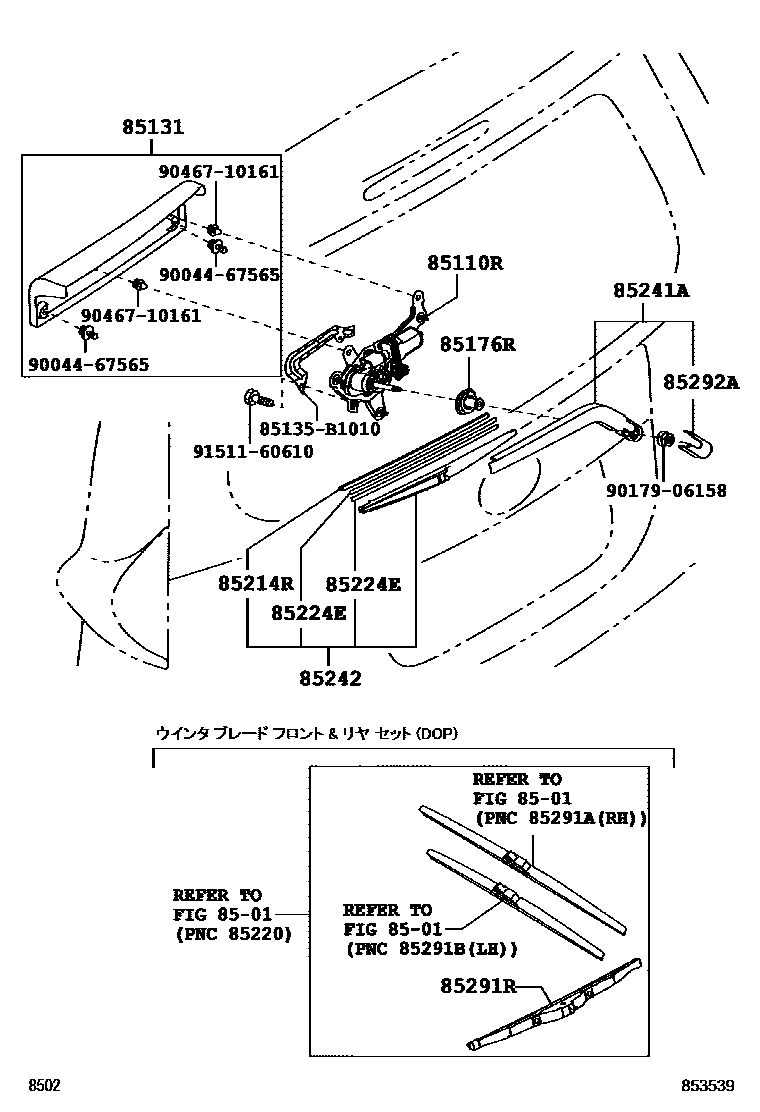

REAR WIPER

8501WINDSHIELD WIPER

→ Go to FIG 85-01

85110RMOTOR ASSY, REAR WIPER

main85130-B1050iM502,512200812-201203

85131COVER, REAR WIPER MOTOR

main85131-B1020-E0iM502,512200812

GREGE,TRIM4#

85176RCAP, REAR WIPER LINK

main85176-B1010iM502,512200812

85214RRUBBER, REAR WIPER

main85243-87401iM502,512201012

main85243-97401iM502,512200812-201012

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-42040×2iM502,512200812

85241AARM, REAR WIPER

main85241-13090iM502,512200812

85242BLADE, RR WIPER

main85242-B1020iM502,512200812

85291RBLADE,REAR WIPER, WINTER

main85291-42020iM502,512200812

85292ACAP, REAR WIPER ARM HEAD

main85292-42010iM502,512200812

85135B1010COVER, TERMINAL

main85135-B1010

9004467565

main90044-67565

9017906158

main90179-06158

9046710161

main90467-10161

9151160610

main91511-60610

15 parts on this diagram · 1 diagram in section
