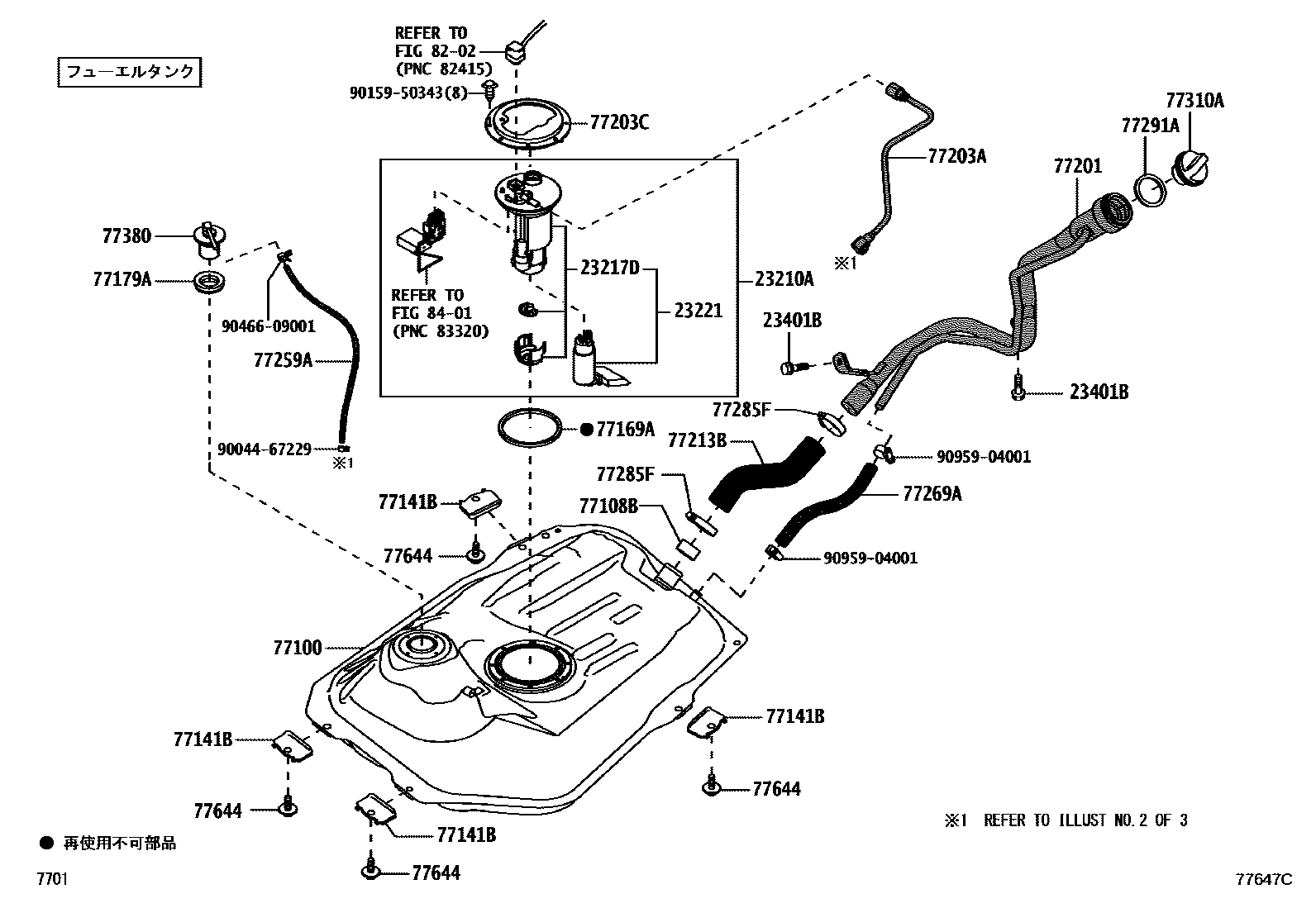

FUEL TANK & TUBE

0001 1�������� 0002 1���������� 0003 1��������������

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-B1080i3SZVE..M502,512200812

23217DFILTER, FUEL PUMP

main23908-B1030i3SZVE..M502,512200812-201203

23221PUMP, FUEL

main23100-B1050i3SZVE..M502,512200812

23401BBOLT

main91551-A0816×2i3SZVE..M502,512200812-201203

77100TANK ASSY, FUEL

main77001-B1030iM502,512200812

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iM502,512200812

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-B1020×4iM502,512200812

77169AGASKET, FUEL SUCTION TUBE SET

main23232-87401iM502,512200812

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-33010iM502,512200812

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-B1090iM502,512200812

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-B1030iM502,512200812

77203CBRACKET, FUEL PUMP

main23265-B2010iM502,512200812

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B1040iM502,512200812

77259AHOSE, FUEL(FOR BREATHER TUBE)

main77259-B1020iM502,512200812

77269AHOSE, FUEL TANK BREATHER

main77269-B1030iM502,512200812

77285FCLAMP, FUEL TUBE, NO.1

main90460-46003×2iM502,512200812-201012

main90460-46005×2iM502,512201012-201203

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-B2020iM502,512200812

77310ACAP ASSY, FUEL TANK

main77300-52030iM502,512200812

77380VALVE ASSY, FUEL CUT OFF

main77380-B2010iM502,512200812

77644BOLT, FUEL TANK

main90041-20155×4iM502,512200812-201203

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004467229

main90044-67229

9015950343

main90159-50343

9046609001

main90466-09001

9095904001

main90959-04001

26 parts on this diagram · 3 diagrams in section
