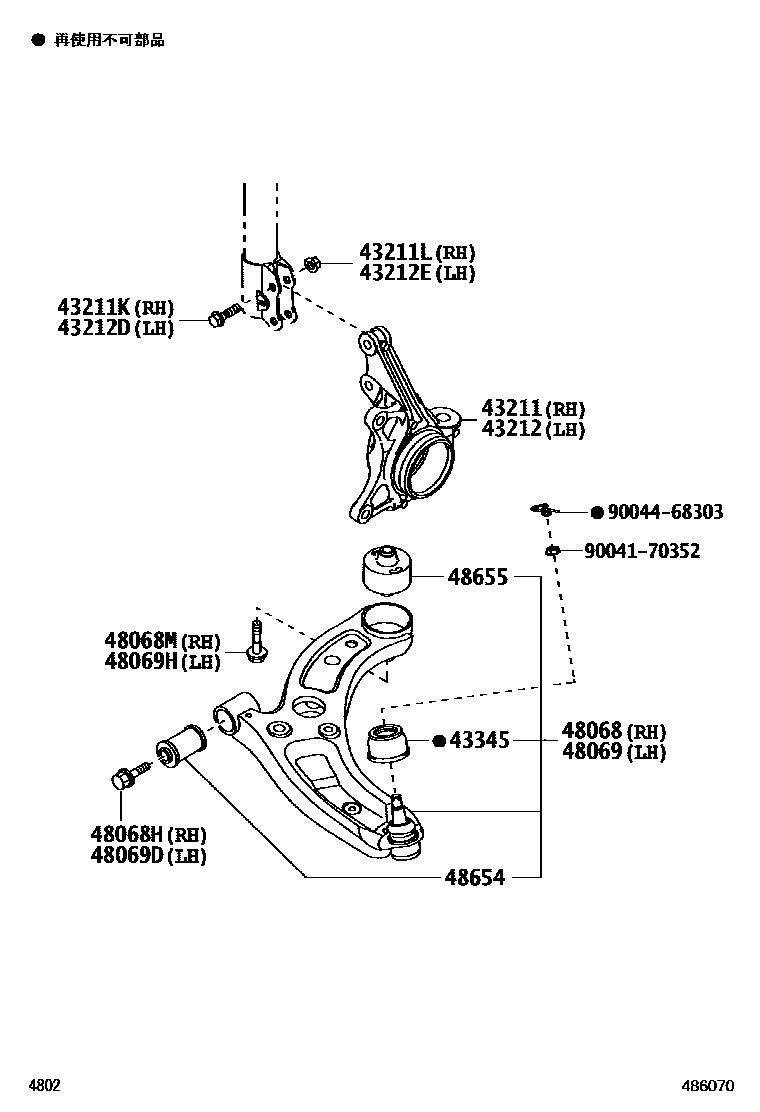

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-B1030iM502,512200812

43211KBOLT (FOR STEERING KNUCKLE RH)

main90041-01652×2iM502,512200812

43211LNUT (FOR STEERING KNUCKLE RH)

main90041-70362×2iM502,512200812

43212KNUCKLE, STEERING, LH

main43212-B1030iM502,512200812

43212DBOLT (FOR STEERING KNUCKLE LH)

main90041-01652×2iM502,512200812

43212ENUT (FOR STEERING KNUCKLE LH)

main90041-70362×2iM502,512200812

43345COVER, LOWER BALL JOINT DUST

main43345-B2010×2iM502,512200812

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-B1050iM502,512200812-200904

main48068-B1051iM502,512200905-201003

main48068-B1052iM502,512201003

48068HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90041-05441iM502,512200812

48068MBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH)

main90041-05442iM502,512200812

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-B1050iM502,512200812-200904

main48069-B1051iM502,512200905-201003

main48069-B1052iM502,512201003

48069DBOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90041-05441iM502,512200812

48069HBOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH)

main90041-05442iM502,512200812

48654BUSH, LOWER ARM

main48654-B1010×2iM502,512200812

48655BUSH, LOWER ARM, NO.2

main48655-B1030×2iM502,512200812-201003

main48655-B1040×2iM502,512201003

9004170352

main90041-70352

9004468303

main90044-68303

17 parts on this diagram · 1 diagram in section
