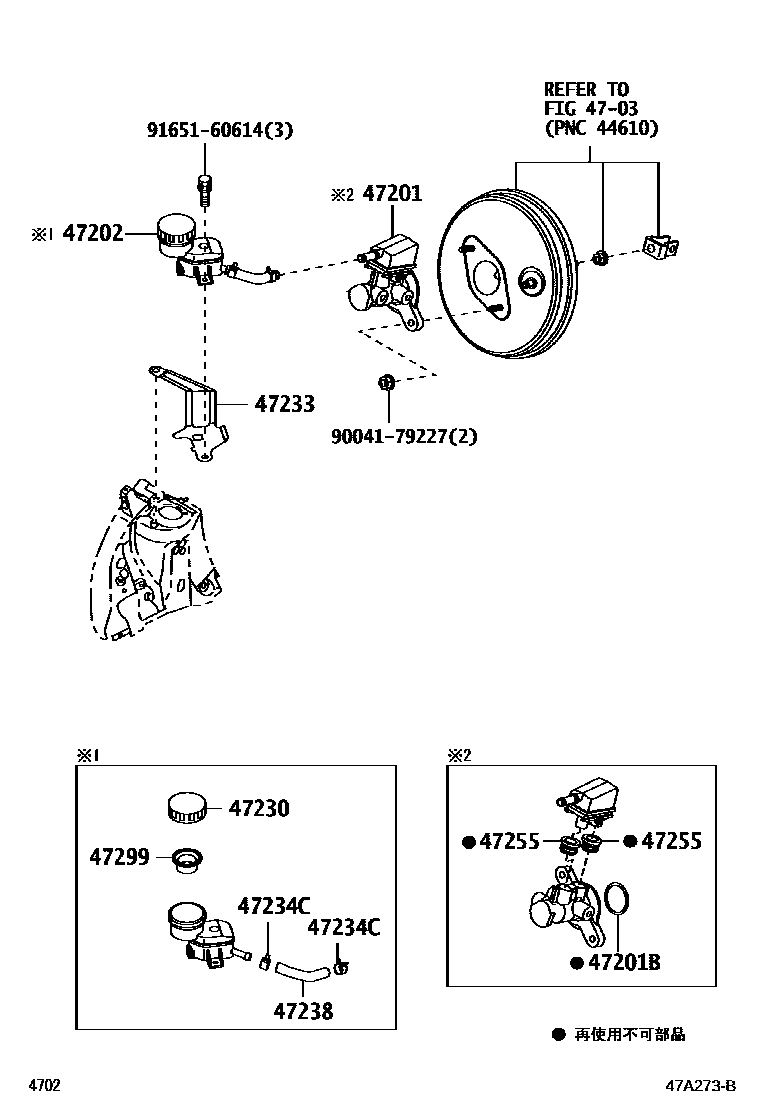

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-B1140iM502,512200812

main47201-B1130iM502200812

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90043-01343iM502,512200812-201203

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-B1010iM502,512200812

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-B2030iM502,512200812

47233BRACKET, RESERVOIR

main47233-B1030iM502,512200812

47234CCLIP(FOR RESERVOIR TUBE NO.1)

main90044-67161×2iM502,512200812

47238HOSE, MASTER CYLINDER BRIDGE

main47234-B1010iM502,512200812

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-B1010×2iM502,512200812

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-87401iM502,512200812

9004179227

main90041-79227

9165160614

main91651-60614

12 parts on this diagram · 1 diagram in section
