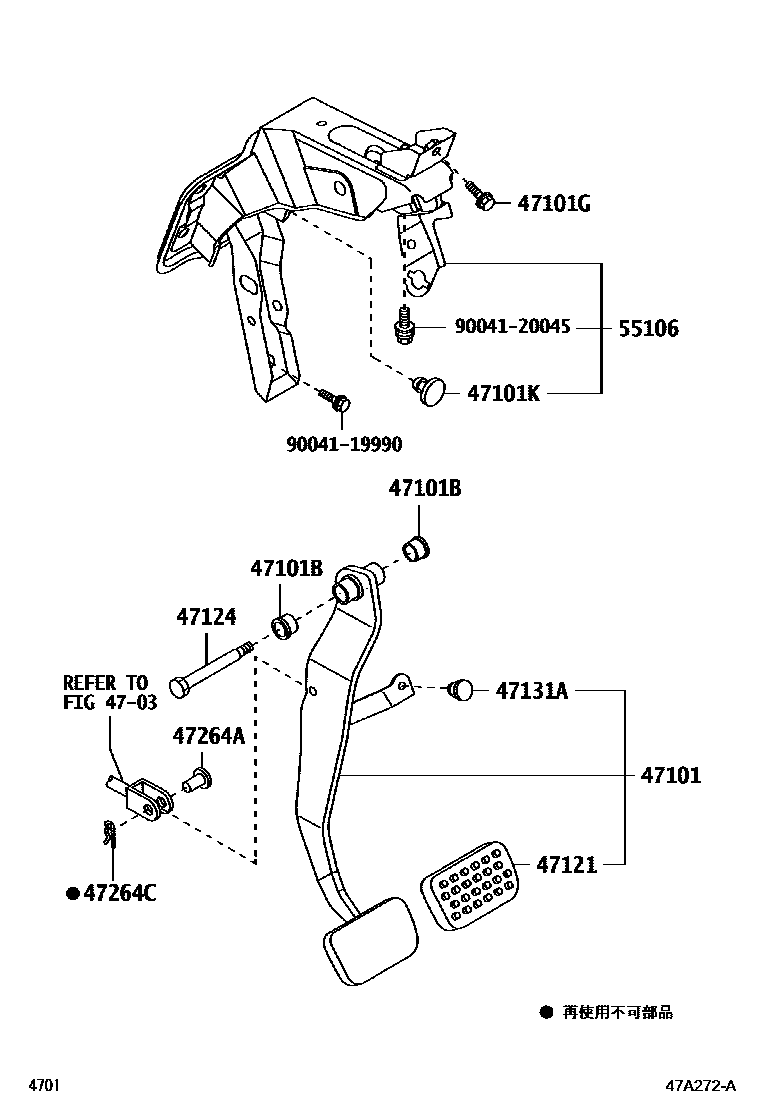

BRAKE PEDAL & BRACKET

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101PEDAL SUB-ASSY, BRAKE

main47110-B1020iM502,512200812

47101BBUSH(FOR BRAKE PEDAL)

main90043-86121×2iM502,512200812

47101GBOLT, BRAKE PEDAL STOP, NO.1

main45898-B2010iM502,512200812

47101KCUSHION(FOR PARKING LOCK CABLE)

main90045-40158iM502,512200812

47121PAD, BRAKE PEDAL

main47121-87202iM502,512200812

47124SHAFT, BRAKE PEDAL

main31324-B2020iM502,512200812

47131ACUSHION(FOR BRAKE PADAL STOPPER)

main90045-40158iM502,512200812

47264APIN(FOR PUSH ROD)

main90042-40151iM502,512200812

47264CCLIP(FOR PUSH ROD CLEVIS PIN)

main90044-68076iM502,512200812

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-B1101iM502,512200812-201203

9004119990

main90041-19990

9004120045

main90041-20045

13 parts on this diagram · 1 diagram in section
