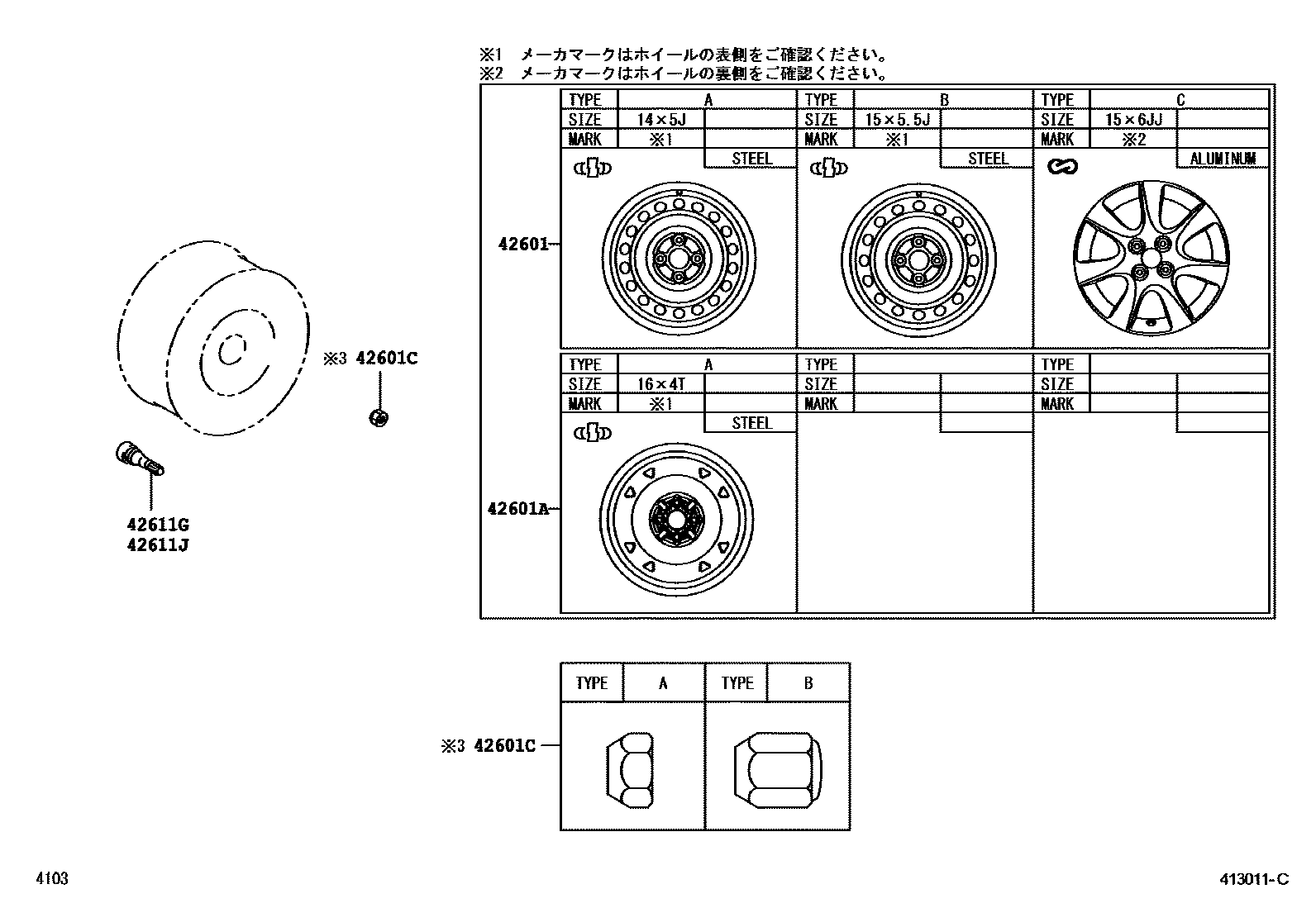

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1

42601WHEEL, DISC

main42611-B1140×4supersedes 42611-B1130iM502,512..G,S; M502..SC,X; M512..SC,X200812

main42611-B1100×4iM502..G; M502..SC,X200812

main42611-B1130×4iM502..G; M502..SC,X; M512..G; M512..SC,X200812

42601AWHEEL, DISC (FOR SPARE)

main42611-B1150iM502200812

42601CNUT, HUB (FOR AXLE)

main90049-11047×16supersedes 90049-11036iM502,512..G,S; M502,512..SC,X200812

main90049-11036×16iM502,512..SC,X; M502..G; M512..G200812

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iM502,512200812

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iM502200812

5 parts on this diagram · 3 diagrams in section
