MUDGUARD & SPOILER

61681FEXTENSION, REAR WHEEL OPENING, RH

main61681-52010iNCP8#..X200605-201008

61682FEXTENSION, REAR WHEEL OPENING, LH

main61682-52010iNCP8#..X200605-201008

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-52070iNCP8#..G200309-200605

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-52060iNCP8#..G201106

76085SPOILER SUB-ASSY, REAR

main76085-52090-A0iNCP8#200605-201008

main76085-52090-A1iNCP8#200309-200605

main76085-52090-B0iNCP8#201106-201506

main76085-52090-B1iNCP8#..DICE,G,X201106-201506

main76085-52090-C1iNCP8#200309-200605

main76085-52090-D0iNCP8#200605-201008

main76085-52090-D1iNCP8#..DICE,DICEG,X201106-201506

main76085-52090-D2iNCP8#..G,X201106-201506

main76085-52090-F0iNCP8#200605-201008

main76085-52090-G0iNCP8#..G,X201106-201506

main76085-52090-H0iNCP8#200605-201008

main76085-52090-J0iNCP8#200605-201008

main76085-52090-J1iNCP8#201106-201506

main76085-52090-K0iNCP8#200309-200605

76087SPOILER SUB-ASSY, REAR NO.1

main76085-52140-A0iNCP8#..X200605-201008

main76085-52140-B0iNCP8#..X200605-201008

main76085-52140-B1iNCP8#..X200605-201008

main76085-52140-D0iNCP8#..X200605-201008

76603MUDGUARD SUB-ASSY, FRONT FENDER, RH

main76621-52080-A0iNCP8#200309-200605

main76621-52080-A1iNCP8#200309-200605

main76621-52080-B0iNCP8#200605-201008

main76621-52080-B1iNCP8#..DICE,G,X201106-201506

main76621-52080-C1iNCP8#..DICE,DICEG201204-201506

main76621-52080-D0iNCP8#200605-201008

main76621-52080-D1iNCP8#..DICE,DICEG,X201106-201506

main76621-52080-D2iNCP8#..G,X201106-201506

main76621-52080-F0iNCP8#200605-201008

main76621-52080-G0iNCP8#200605-201008

main76621-52080-H0iNCP8#200605-201008

main76621-52080-J0iNCP8#200605-201008

main76621-52080-J1iNCP8#201106-201506

main76621-52080-K0iNCP8#200309-200605

76604MUDGUARD SUB-ASSY, FRONT FENDER, LH

main76622-52080-A0iNCP8#200309-200605

main76622-52080-A1iNCP8#200309-200605

main76622-52080-B0iNCP8#200605-201008

main76622-52080-B1iNCP8#..DICE,G,X201106-201506

main76622-52080-C1iNCP8#200309-200605

main76622-52080-D0iNCP8#201106-201506

main76622-52080-D1iNCP8#..DICE,DICEG,X201106-201506

main76622-52080-D2iNCP8#..G,X201106-201506

main76622-52080-F0iNCP8#200309-200605

main76622-52080-G0iNCP8#200605-201008

main76622-52080-H0iNCP8#200309-200605

main76622-52080-J0iNCP8#200309-200605

main76622-52080-J1iNCP8#201106-201506

main76622-52080-K0iNCP8#200309-200605

76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH

main76625-52120-A0iNCP8#201106-201506

main76625-52120-A1iNCP8#200309-200605

main76625-52120-B0iNCP8#201106-201506

main76625-52120-B1iNCP8#200605-201008

main76625-52120-C1iNCP8#200309-200605

main76625-52120-D0iNCP8#200309-200605

main76625-52120-D1iNCP8#..DICE,DICEG,X201106-201506

main76625-52120-D2iNCP8#..G,X201106-201506

main76625-52120-F0iNCP8#200309-200605

main76625-52120-G0iNCP8#200605-201008

main76625-52120-H0iNCP8#200309-200605

main76625-52120-J0iNCP8#200309-200605

main76625-52120-J1iNCP8#201106-201506

main76625-52120-K0iNCP8#200309-200605

76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH

main76626-52120-A0iNCP8#200605-201008

main76626-52120-A1iNCP8#200309-200605

main76626-52120-B0iNCP8#201106-201506

main76626-52120-B1iNCP8#..DICE,G,X201106-201506

main76626-52120-C1iNCP8#200309-200605

main76626-52120-D0iNCP8#200605-201008

main76626-52120-D1iNCP8#..DICE,DICEG,X201106-201506

main76626-52120-D2iNCP8#..G,X201106-201506

main76626-52120-F0iNCP8#200309-200605

main76626-52120-G0iNCP8#200605-201008

main76626-52120-H0iNCP8#200605-201008

main76626-52120-J0iNCP8#200309-200605

main76626-52120-J1iNCP8#201106-201506

main76626-52120-K0iNCP8#200309-200605

76853ERETAINER, REAR SPOILER, NO.1

main76854-52010×11iNCP8#..X200605-201008

76868RETAINER, REAR SPOILER SIDE, LH

main76868-52020-A0iNCP8#..X200605-201008

main76868-52020-B0iNCP8#..X200605-201008

main76868-52020-B1iNCP8#..X200605-201008

main76868-52020-D0iNCP8#..X200605-201008

76872PROTECTOR, REAR SPOILER, NO.1

main76872-52080-B0iNCP8#..X200605-201008

main76872-52080-C0iNCP8#..X200605-201008

76874PROTECTOR, REAR SPOILER, NO.3

main76874-52070-B0iNCP8#..X200605-201008

main76874-52070-C0iNCP8#..X200605-201008

76891SPOILER, REAR NO.1

main76891-52020-A0iNCP8#200309-200605

main76891-52020-A1iNCP8#200309-200605

main76891-52020-B0iNCP8#200605-201008

main76891-52020-B1iNCP8#200605-201008

main76891-52020-C1iNCP8#200309-200605

main76891-52020-D0iNCP8#200309-200605

main76891-52020-D1iNCP8#..DICE,DICEG,X201106-201506

main76891-52020-D2iNCP8#..G,X201106-201506

main76891-52020-F0iNCP8#200605-201008

main76891-52020-G0iNCP8#..G,X201106-201506

main76891-52020-H0iNCP8#200605-201008

main76891-52020-J0iNCP8#200309-200605

main76891-52020-J1iNCP8#201106-201506

main76891-52020-K0iNCP8#200309-200605

76892SPOILER, REAR NO.2

main76892-52020-A0iNCP8#201106-201506

main76892-52020-A1iNCP8#200309-200605

main76892-52020-B0iNCP8#200605-201008

main76892-52020-B1iNCP8#..DICE,G,X201106-201506

main76892-52020-C1iNCP8#..DICE,DICEG201204-201506

main76892-52020-D0iNCP8#200605-201008

main76892-52020-D1iNCP8#..DICE,DICEG,X201106-201506

main76892-52020-D2iNCP8#..G,X201106-201506

main76892-52020-F0iNCP8#200309-200605

main76892-52020-G0iNCP8#200605-201008

main76892-52020-H0iNCP8#200605-201008

main76892-52020-J0iNCP8#200605-201008

main76892-52020-J1iNCP8#201106-201506

main76892-52020-K0iNCP8#200309-200605

7689952010PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-52010

7689952030PROTECTOR, REAR SPOILER, SIDE NO.6

main76899-52030

9015940083

main90159-40083

9015960008

main90159-60008

9015960413

main90159-60413

9015960444

main90159-60444

9017606041

main90176-06041

9017906127

main90179-06127

9018306029

main90183-06029

9018906013

main90189-06013

9018906233

main90189-06233

9046708180

main90467-08180

9356056016

main93560-56016

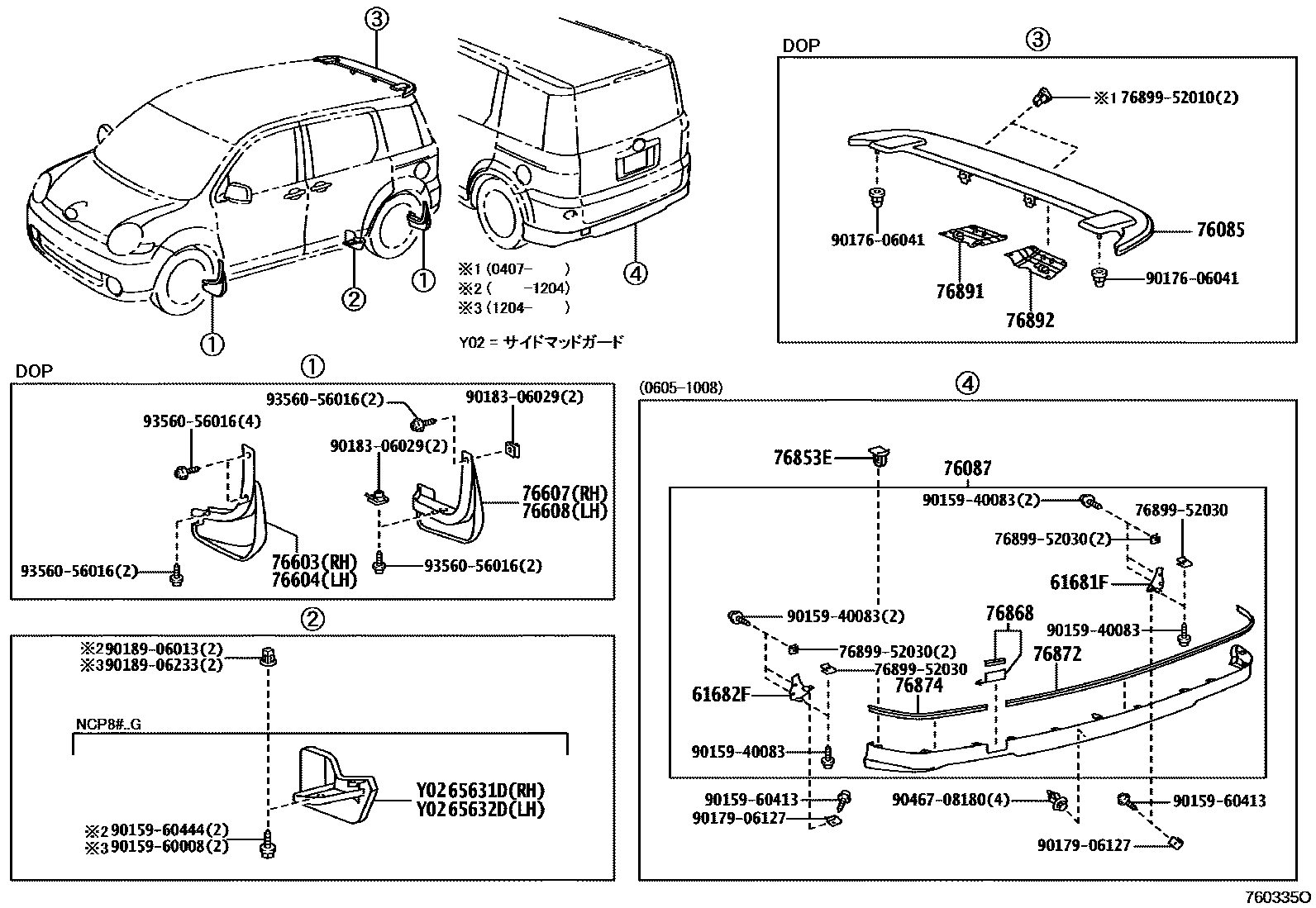

29 parts on this diagram · 1 diagram in section
