7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71308ELEG SUB-ASSY, REAR SEAT, RH

main71308-52010i200605-201008

main71308-52010i200309-200605

main71308-52011i201106

71334ASTOPPER, REAR SEAT LEG

main71334-52010i200309-200605

main71334-52010i200605-201008

71601APAD SUB-ASSY, REAR SEAT CUSHION W/COVER

main71601-52F10-F0i200605-201008

LT.YELLOW,TRIM0#

main71601-52F10-F0i200605-201008

main71601-52F11-B0i201106-201506

DK.GRAY,TRIM1#

main71601-52F11-B0i201106-201506

main71601-52F21-E0i201106-201506

APRICOT,TRIM0#

main71601-5D030-F2i200309-200407

LT.YELLOW,TRIM0#

main71601-5D031-F3i200408-200605

LT.YELLOW,TRIM0#

main71601-5D031-F3i200408-200605

71603CPAD SUB-ASSY, REAR SEATBACK W/COVER

main71603-52A30-F1i200309-200407

LT.YELLOW,TRIM0#

main71603-52A30-F1i200309-200407

main71603-52A31-F2i200408-200605

LT.YELLOW,TRIM0#

main71603-52G91-B0i201106-201401

DK.GRAY,TRIM1#

main71603-52G91-B0i201106-201401

main71603-52G91-B1i201401-201506

DK.GRAY,TRIM1#

main71603-52J01-E0i201106-201401

APRICOT,TRIM0#

main71603-52J01-E1i201401-201506

APRICOT,TRIM0#

main71603-52J01-E1i201401-201506

main71603-52J10-F0i200605-201008

LT.YELLOW,TRIM0#

main71603-52J10-F0i200605-201008

71739CUSHION, SEAT SUPPORT

main71739-52020i200605-201008

main71739-52020i200309-200605

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-52020-A0i200309-201506

IVORY,TRIM0#

main71833-52020-A0i200605-201506

main71833-52020-A0i200605-201008

main71833-52020-B0i200605-201008

GRAY,TRIM1#,9#

main71833-52020-B0i200605-201008

main71833-52020-B0i200309-200605

GRAY,TRIM9#

main71833-52020-B1i201106-201506

MD.GRAY,TRIM1#

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-52020-A0i200605-201008

main71848-52020-A0i200309-201506

IVORY,TRIM0#

main71848-52020-A0i200605-201506

main71848-52020-B0i200605-201008

GRAY,TRIM1#,9#

main71848-52020-B0i200605-201008

main71848-52020-B0i200309-200605

GRAY,TRIM9#

main71848-52020-B1i201106-201506

MD.GRAY,TRIM1#

main71848-52020-B1i201106-201506

71878ACOVER, REAR SEAT RECLINING, INNER RH

main71878-52020-A0i200309-201506

main71878-52020-A0i200605-201008

main71878-52020-A0i200605-201506

main71878-52020-A0i200605-201008

main71878-52020-B0i200605-201008

main71878-52020-B0i200309-200605

main71878-52020-B0i200605-201008

main71878-52020-B1i201106-201506

main71878-52060-A0i200309-201506

main71878-52060-A0i200309-200605

main71878-52060-B0i200605-201008

main71878-52060-B0i200309-200605

main71878-52060-B1i201106-201506

72047COVER SUB-ASSY, RR SEAT TRACK, INNER RH

main72047-52010-B0i201106-201506

DK.GRAY,TRIM0#,1#

main72047-52010-B0i201106-201506

DK.GRAY,TRIM1#

main72047-52010-B0i200605-201506

DK.GRAY,TRIM0#

main72047-52010-B0i200309-200605

DK.GRAY,TRIM0#,9#

main72047-52010-B0i200605-201008

DK.GRAY,TRIM0#,1#,9#

main72047-52020-B0i200605-201409

DK.GRAY,TRIM0#

main72047-52020-B0i200309-200605

DK.GRAY,TRIM0#,9#

main72047-52020-B0i200605-201008

DK.GRAY,TRIM0#,1#,9#

main72047-52020-B0i201106-201409

DK.GRAY,TRIM0#,1#

main72047-52020-B0i201106-201409

DK.GRAY,TRIM1#

72048COVER SUB-ASSY, RR SEAT TRACK, INNER LH

main72048-52010-B0i200605-201506

DK.GRAY,TRIM0#

main72048-52010-B0i200605-201008

DK.GRAY,TRIM0#,1#,9#

main72048-52010-B0i200309-200605

DK.GRAY,TRIM0#,9#

main72048-52010-B0i201106-201506

DK.GRAY,TRIM0#,1#

main72048-52010-B0i201106-201506

DK.GRAY,TRIM1#

main72048-52020-B0i201106-201409

DK.GRAY,TRIM1#

main72048-52020-B0i200309-200605

DK.GRAY,TRIM0#,9#

main72048-52020-B0i200605-201008

DK.GRAY,TRIM0#,1#,9#

main72048-52020-B0i200605-201409

DK.GRAY,TRIM0#

main72048-52020-B0i201106-201409

DK.GRAY,TRIM0#,1#

72152ACOVER, REAR SEAT TRACK BRACKET, INNER

main72152-52030-A0i200605-201506

main72152-52030-A0i200309-201506

main72152-52030-A0i200605-201008

main72152-52030-B0i200605-201008

main72152-52030-B0i200309-200605

main72152-52030-B0i200605-201008

main72152-52030-B1i201106-201506

main72152-52070-A0i200309-201506

main72152-52070-B0i200605-201008

main72152-52070-B0i200309-200605

main72152-52070-B1i201106-201506

72152BCOVER, REAR SEAT TRACK BRACKET, INNER

main72152-52040-A0i200309-201506

main72152-52040-A0i200605-201506

main72152-52040-A0i200605-201008

main72152-52040-B0i200605-201008

main72152-52040-B0i200309-200605

main72152-52040-B1i201106-201506

main72152-52080-A0i200309-201506

main72152-52080-B0i200309-200605

main72152-52080-B0i200605-201008

main72152-52080-B1i201106-201506

72159BCOVER, REAR SEAT TRACK BRACKET, OUTER

main72159-52010-A0i200605-201008

main72159-52010-A0i200309-201506

main72159-52010-A0i200605-201506

main72159-52010-B0i200605-201008

main72159-52010-B0i200309-200605

main72159-52010-B1i201106-201506

main72159-52030-A0i200309-201506

main72159-52030-B0i200309-200605

main72159-52030-B0i200605-201008

main72159-52030-B1i201106-201506

72159FCOVER, REAR SEAT TRACK BRACKET, RH

main72159-52020-A0i200605-201008

main72159-52020-A0i200309-201506

IVORY,TRIM0#

main72159-52020-A0i200605-201506

main72159-52020-A0i200605-201008

main72159-52020-B0i200605-201008

main72159-52020-B0i200309-200605

GRAY,TRIM9#

main72159-52020-B0i200605-201008

GRAY,TRIM1#,9#

main72159-52020-B0i200605-201008

main72159-52020-B1i201106-201506

MD.GRAY,TRIM1#

main72159-52020-B1i201106-201506

72160TRACK ASSY, REAR SEAT, OUTER RH

main72160-52010i200309-201008

72180CTRACK ASSY, REAR SEAT, INNER RH

main72180-52010i200309-201008

main72180-52020i200309-201008

main72180-52021i201106-201409

72213AKNOB, SEAT TRACK ADJUSTING HANDLE

main72213-52010-A0i200605-201506

main72213-52010-A0i200309-201506

main72213-52010-A0i200605-201008

main72213-52010-B0i200605-201008

main72213-52010-B0i200309-200605

main72213-52010-B1i201106-201506

main72213-52020-A0i200309-201506

main72213-52020-B0i200309-200605

main72213-52020-B0i200605-201008

main72213-52020-B1i201106-201506

72249GUIDE, SEAT TRACK LOCKING

main72249-52010i200309-201008

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-52020-A0i200605-201008

main72679-52020-A0i200309-201506

IVORY,TRIM0#

main72679-52020-A0i200605-201506

main72679-52020-A0i200605-201008

main72679-52020-B0i200706-201008

GRAY,TRIM1#

main72679-52020-B0i200706-201008

main72679-52020-B0i200309-200605

GRAY,TRIM9#

main72679-52020-B0i200605-200706

GRAY,TRIM1#,9#

main72679-52020-B0i200605-200706

main72679-52020-B1i201106-201506

MD.GRAY,TRIM1#

main72679-52020-B1i201106-201506

72695ACABLE, REAR SEAT LOCK CONTROL

main72695-52010i200605-201008

main72695-52010i200309-200605

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-52010i200605-201008

main72704-52010i200309-200605

72727BKNOB, REAR SEAT RECLINING CONTROL LEVER, RH

main72727-52030-A0i200605-201008

main72727-52030-A0i200309-201506

IVORY,TRIM0#

main72727-52030-A0i200605-201506

main72727-52030-A0i200605-201008

main72727-52030-B0i200706-201008

GRAY,TRIM1#

main72727-52030-B0i200706-201008

main72727-52030-B0i200309-200605

GRAY,TRIM9#

main72727-52030-B0i200605-200706

GRAY,TRIM1#,9#

main72727-52030-B0i200605-200706

main72727-52030-B1i201106-201506

MD.GRAY,TRIM1#

main72727-52030-B1i201106-201506

73653COVER, REAR SEAT BELT INNER ANCHOR, RH

main73653-52010-A0i200605-201506

main73653-52010-A0i200605-201008

main73653-52010-A0i200309-201506

IVORY,TRIM0#

main73653-52010-B0i200309-200605

GRAY,TRIM9#

main73653-52010-B0i200605-201008

GRAY,TRIM1#,9#

main73653-52010-B0i200605-201008

main73653-52010-B1i201106-201506

MD.GRAY,TRIM1#

main73653-52010-B1i201106-201506

74650ESTRAP ASSY, ASSIST, RH

main74650-52050i200309-200605

main74650-52050i200605-201008

79101FRAME SUB-ASSY, NO.1 SEAT CUSHION

main79101-52010i200605-201008

main79101-52010i200309-200605

main79101-52010i200605-201008

79103AFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-52012i201106

main79103-52030i200605-200706

main79103-52030i200309-200605

main79103-52030i200605-200706

main79103-52031i200706-201008

79124STOPPER, SEAT CUSHION LEG

main79124-52010i200605-201008

main79124-52010i200309-200605

main79124-52010i200605-201008

79236ACOVER, NO.2 SEAT LEG

main79236-52010-A0i200605-201506

main79236-52010-A0i200309-201506

IVORY,TRIM0#

main79236-52010-B0i200605-201008

main79236-52010-B0i200309-200605

GRAY,TRIM9#

main79236-52010-B0i200605-201008

GRAY,TRIM1#,9#

main79236-52010-B1i201106-201506

MD.GRAY,TRIM1#

79246ACOVER, NO.2 SEAT LEG, NO.2

main79236-52010-A0i200309-201506

IVORY,TRIM0#

main79236-52010-A0i200605-201506

main79236-52010-B0i200605-201008

main79236-52010-B0i200309-200605

GRAY,TRIM9#

main79236-52010-B0i200605-201008

GRAY,TRIM1#,9#

main79236-52010-B1i201106-201506

MD.GRAY,TRIM1#

main79236-52010-B1i201106-201506

7270252060BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52060

7270252070BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52070

7270252080BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52080

7928752010

main79287-52010

7997752010FELT, SEATBACK

main79977-52010

9011910921

main90119-10921

9011910945

main90119-10945

9016740044

main90167-40044

9046705017C0

main90467-05017C0

9046707173B3

main90467-07173B3

9046707190B2

main90467-07190B2

9151581020

main91515-81020

9324056025

main93240-56025

9356054014

main93560-54014

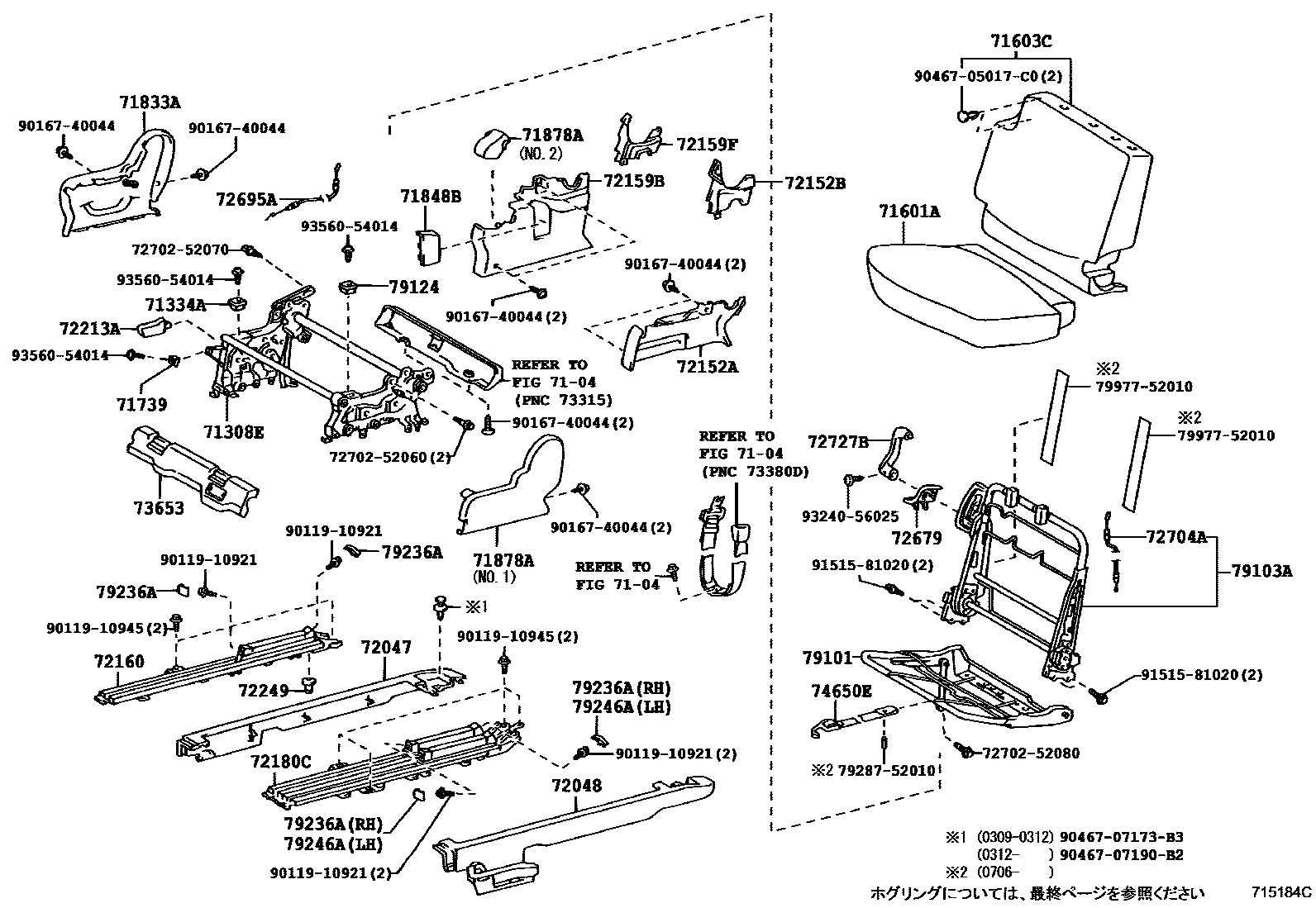

REAR SEAT & SEAT TRACK
