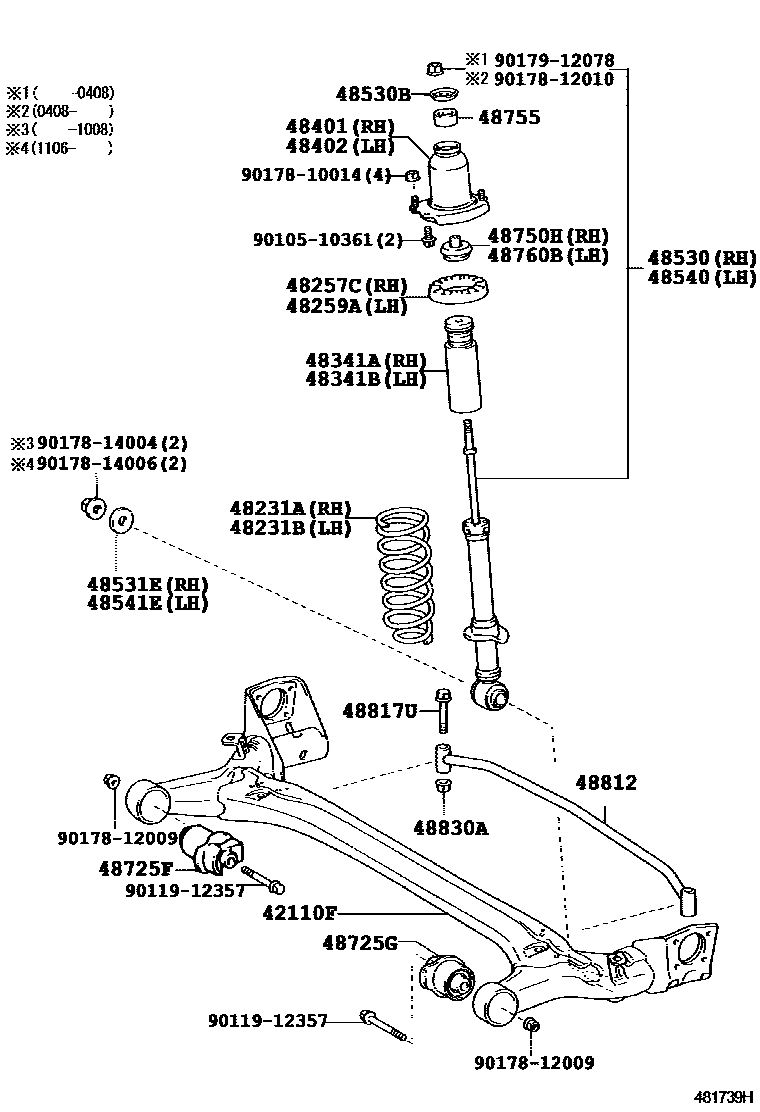

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1

42110FBEAM ASSY, REAR AXLE

main42101-12140iNCP81201106

48231ASPRING, COIL, REAR RH

main48231-52620iNCP81; NCP81..X201106

main48231-52630iNCP85200309-200605

main48231-52810supersedes 48231-52620iNCP81200309-200605

48231BSPRING, COIL, REAR LH

main48231-52620iNCP81; NCP81..X201106

main48231-52630iNCP85200605-201008

main48231-52810iNCP81..DICE,DICEG,G201106

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-12030iNCP85200309-200605

main48257-32090iNCP81200309-200605

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-12030iNCP85200605-201008

main48257-32090iNCP81; NCP81..X201106

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-32100iNCP85200605-201008

main48341-47010iNCP81; NCP81..X201106

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-32100iNCP85200309-200605

main48341-47010iNCP81200605-201008

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-32010iNCP85201106-201409

main48401-32020iNCP81; NCP81..X201106

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48401-32010iNCP85201106-201409

main48403-32010iNCP81200309-200605

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-59865iNCP81200309-200408

main48530-59875iNCP85200309-200408

main48530-80262iNCP81200408-200605

main48530-80264iNCP85200408-200605

main48530-80622iNCP81; NCP81..X201106

main48530-80121iNCP81200309-200408

main48530-80263supersedes 48530-80262iNCP81200605-201008

main48530-80623iNCP81..DICE,DICEG,G201106

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iNCP8#200309-200605

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90201-14010iNCP81201106

main90560-14028iNCP81200309-200605

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-59865iNCP81200309-200408

main48530-59875iNCP85200309-200408

main48530-80262iNCP81200408-200605

main48530-80264iNCP85200408-200605

main48530-80622iNCP81; NCP81..X201106

main48530-80121iNCP81200309-200408

main48530-80263supersedes 48530-80262iNCP81200605-201008

main48530-80623iNCP81..DICE,DICEG,G201106

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90201-14010iNCP81201106

main90560-14028iNCP81200309-200605

48725BUSH, LOWER CONTROL ARM

main48725-32250×2iNCP85200309-200605

48725FBUSH, REAR AXLE CARRIER, RH

main48725-52080iNCP81200309-200605

48725GBUSH, REAR AXLE CARRIER, LH

main48725-52080iNCP81200309-200605

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-32170iNCP85200309-200605

main48750-47010iNCP81; NCP81..X201106

48755SUPPORT, REAR SUSPENSION

main48755-20010×2iNCP85200309-200605

main48755-63010×2iNCP81; NCP81..X201106

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-32170iNCP85200605-201008

main48750-47010iNCP81200309-200605

48812BAR, STABILIZER, REAR

main48812-12340iNCP85201106-201409

main48812-32480iNCP81200605-201008

48817UBOLT(FOR REAR STABILIZER)

main90105-14138×2iNCP81200309-200605

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10183×4iNCP85200605-201008

main90179-14062×2iNCP81200309-200605

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814004

main90178-14004

9017814006

main90178-14006

9017912078

main90179-12078

31 parts on this diagram · 2 diagrams in section
