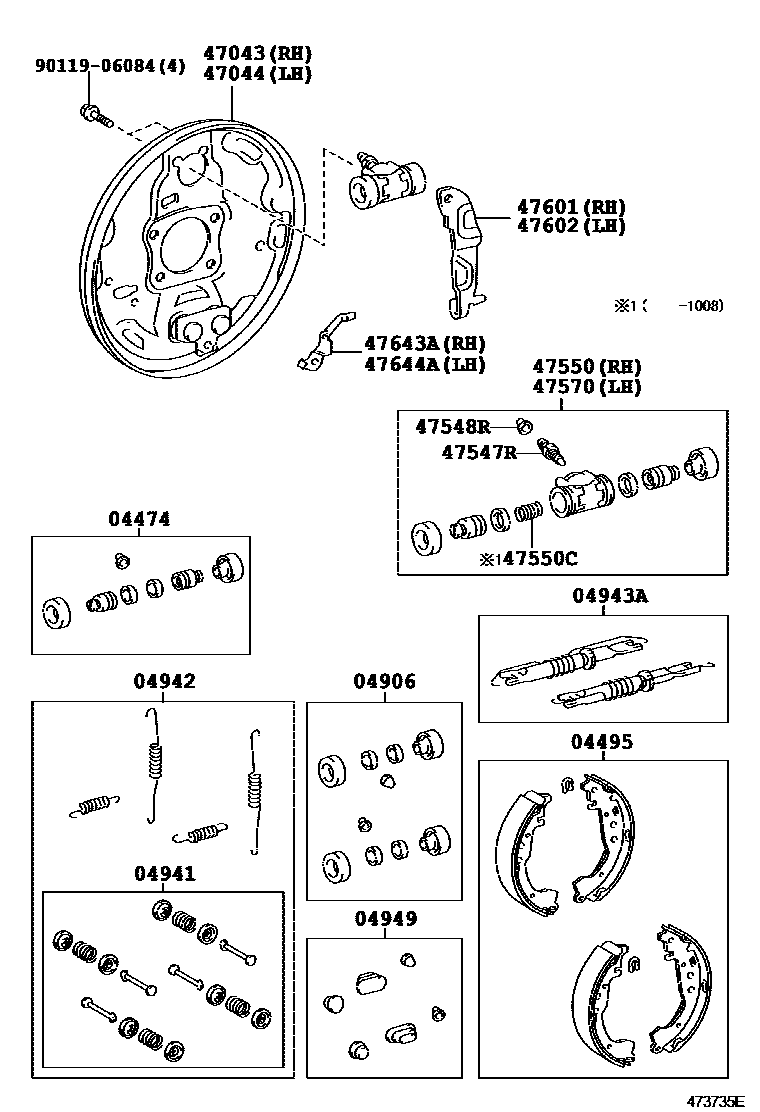

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-52140×2i200309-200605

04495SHOE KIT, REAR BRAKE

main04495-52030i200309-200605

04906CUP KIT, REAR WHEEL CYLINDER

main04906-28040i200309-200605

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010i200309-200605

04942SPRING KIT, REAR BRAKE

main04942-13020i200309-200403

main04942-13030i200403-200605

04943ASTRUT KIT, REAR BRAKE

main04943-13010i200309-200605

04949PLUG KIT, REAR BRAKE

main04949-13010i200309-200605

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-63010i200309-200605

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-63010i200309-200605

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-27030×2i200309-200605

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010×2i200309-200605

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-28060i200309-200605

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90501-09079×2i200309-200605

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060i200309-200605

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47612-33010i200309-200605

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47611-33010i200309-200605

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-42010i200309-200605

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-42010i200309-200605

9011906084

19 parts on this diagram · 1 diagram in section
