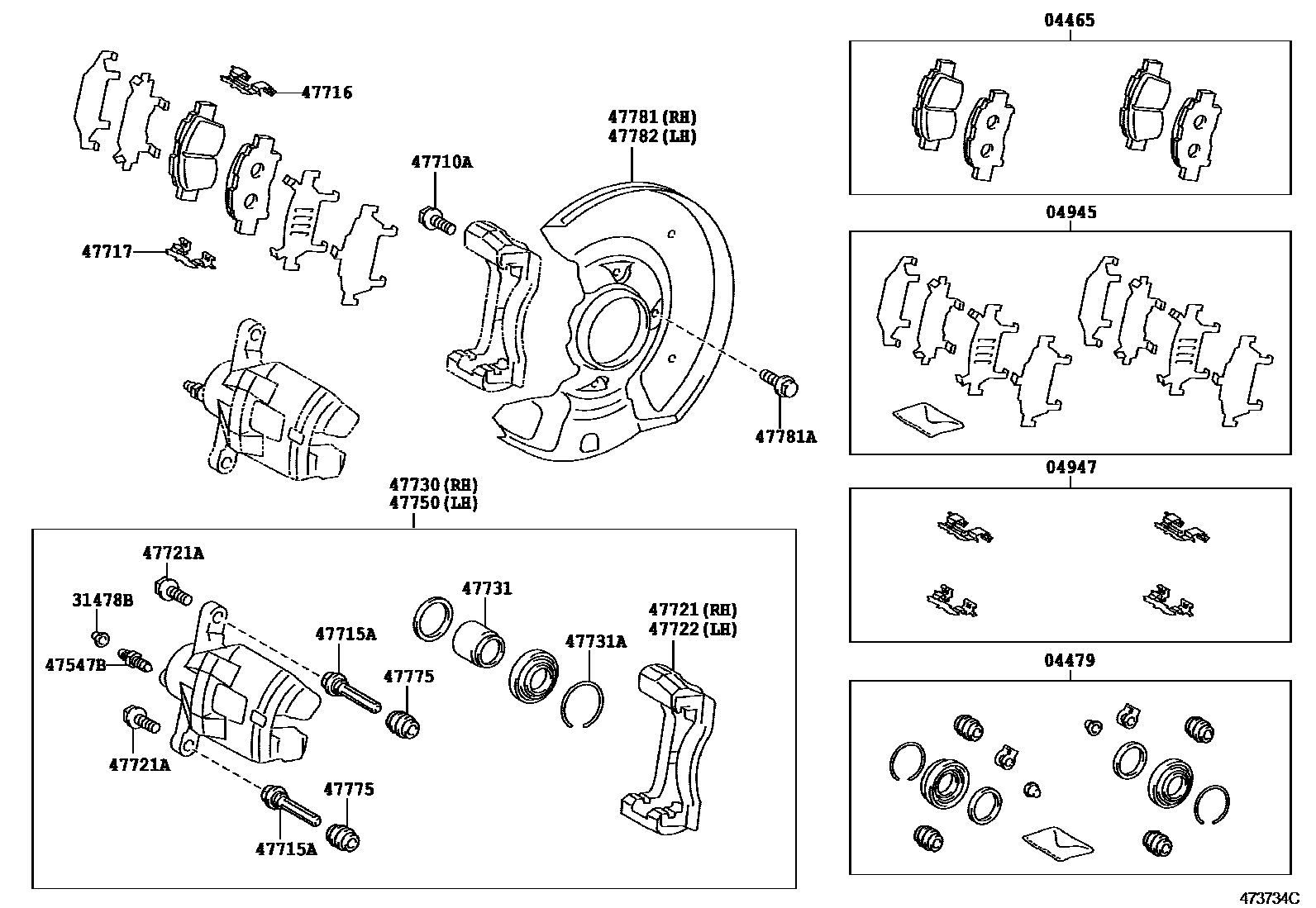

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-52110iNCP8#200309-200410

main04465-52220iNCP8#200410-200605

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-47060iNCP8#201304

main04479-20320iNCP8#200605-201008

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-20210iNCP8#200309-200410

main04945-52060iNCP8#200410-200605

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iNCP8#200309-200605

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iNCP8#200605-201008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iNCP8#200309-200605

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12314×4iNCP8#200309-200605

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52010×4iNCP8#200309-200605

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200×2iNCP8#200309-200605

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100×2iNCP8#200309-200605

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-52160iNCP8#200309-200605

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iNCP8#200309-200605

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-52160iNCP8#200309-200605

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-52160iNCP8#200309-200605

47731PISTON, FRONT DISC BRAKE

main47731-20260×2iNCP8#200309-200605

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iNCP8#200309-200605

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-52160iNCP8#200309-200605

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-02130×4iNCP8#201304

main47775-52010×4iNCP8#200605-201008

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-52020iNCP8#201106-201506

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227×6iNCP8#200309-200605

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-52020iNCP8#200309-200605

21 parts on this diagram · 2 diagrams in section
