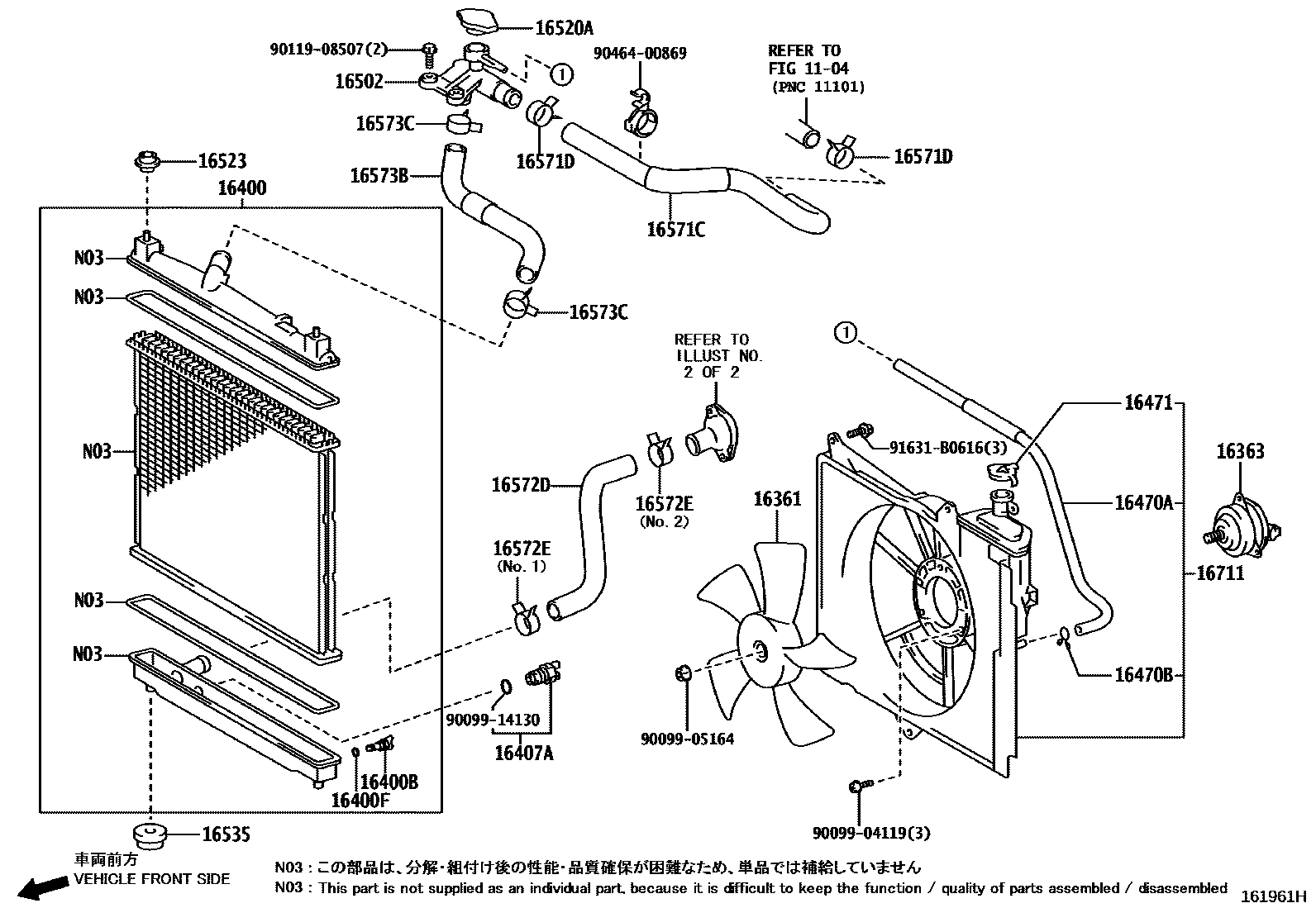

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1104

16361FAN

main16361-21050i1NZFE..NCP85200311-201409

main16361-21080i1NZFE..NCP81200309-201008

main16361-23050i1NZFE..NCP85200309-200311

16363MOTOR, COOLING FAN

main16363-23030i1NZFE..NCP85200309-200906

sub16363-28160

main16363-28150i1NZFE..NCP81200309-201008

main16363-28160i1NZFE..NCP85200907-201409

16400RADIATOR ASSY

main16400-21220i1NZFE..NCP81200309-201506

main16400-21290i1NZFE..NCP85200309-201409

16400BPLUG, RADIATOR DRAIN COCK

main23322-54010i1NZFE..NCP8#200309-201008

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1NZFE..NCP8#200309-201008

16407ACOCK SUB-ASSY, RADIATOR DRAIN

main16407-7A130i1NZFE..NCP8#200309-201008

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-21020i1NZFE..NCP85200512-201409

main16377-21090i1NZFE..NCP81200309-200512

main16378-21090i1NZFE..NCP81200512-201008

main90445-12078i1NZFE..NCP85200309-200512

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1NZFE..NCP8#200309-201008

16471CAP SUB-ASSY, RESERVE TANK

main16471-23010i1NZFE..NCP8#200309-200512

main16471-23030i1NZFE..NCP8#200512-201008

16502FILLER SUB-ASSY, WATER

main16502-21010i1NZFE..NCP85200309-201409

main16502-21040i1NZFE..NCP81200309-201008

16520ACAP SUB-ASSY, WATER FILLER

main16401-31480i1NZFE..NCP8#200903-201008

main16401-62100i1NZFE..NCP8#200309-200902

sub16401-31520

16523CUSHION, SUB-RADIATOR SUPPORT

main16523-23010i1NZFE..NCP8#200309-201008

16535SUPPORT, RADIATOR, LOWER

main90480-40016i1NZFE..NCP8#200309-201008

16571CHOSE, RADIATOR, NO.1

main16571-21020i1NZFE..NCP85200309-201409

main16571-21050i1NZFE..NCP81200309-201008

16571DCLIP, RADIATOR HOSE, NO.1

main90467-33006i1NZFE..NCP8#200309-201008

16572DHOSE, RADIATOR, NO.2

main16572-21020i1NZFE..NCP8#200309-201008

16572ECLIP, RADIATOR HOSE, NO.2

main90467-33006i1NZFE..NCP8#200309-201008

main90467-34004i1NZFE..NCP8#200309-201008

16573BHOSE, RADIATOR, NO.3

main16573-21010i1NZFE..NCP85200309-201409

main16573-21050i1NZFE..NCP81200309-201008

16573CCLAMP OR CLIP, RADIATOR HOSE, NO.3

main90467-33006i1NZFE..NCP8#200309-201008

16711SHROUD, FAN

main16711-21030i1NZFE..NCP85200309-200512

main16711-21070i1NZFE..NCP81200309-200512

main16711-21120i1NZFE..NCP85200512-200803

sub16711-21121

main16711-21121i1NZFE..NCP85200804-201409

main16711-21130i1NZFE..NCP81200512-200803

sub16711-21131

main16711-21131i1NZFE..NCP81200804-201008

9009904119

main90099-04119

9009905164

main90099-05164

9009914130

main90099-14130

9011908507

main90119-08507

9046400869

main90464-00869

91631B0616

main91631-B0616

27 parts on this diagram · 6 diagrams in section
