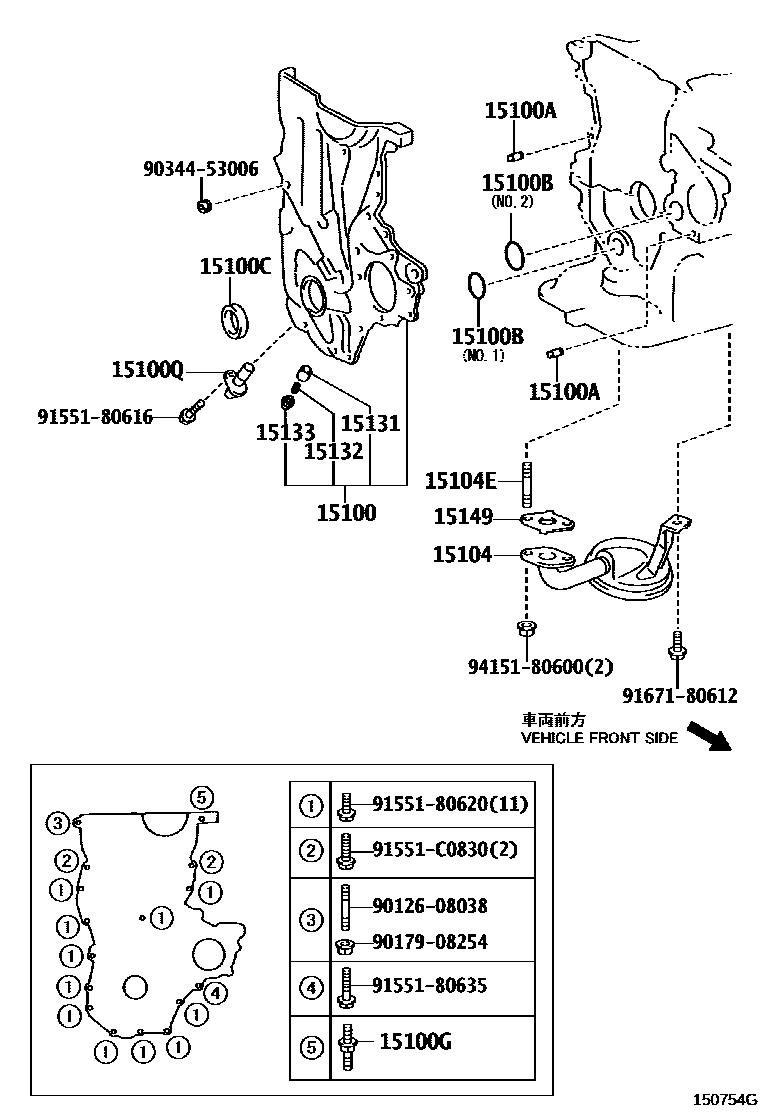

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-21040i1NZFE..NCP85200309-201111

sub15100-21042

main15100-21042i1NZFE..NCP85201111-201204

main15100-21043i1NZFE..NCP85201204-201409

main15100-21060i1NZFE..NCP81200309-201204

main15100-21062i1NZFE..NCP81201204

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003i1NZFE..NCP8#200309-201008

15100BRING, O(FOR OIL PUMP)

main11497-21010i1NZFE..NCP8#201111

main12151-21010i1NZFE..NCP8#201111

main90301-31012i1NZFE..NCP8#200309-201111

sub12151-21010

main90301-42006i1NZFE..NCP8#200309-201111

sub11497-21010

15100CSEAL(FOR OIL PUMP)

main90311-25021i1NZFE..NCP8#200309-201204

sub90311-25032

main90311-25032i1NZFE..NCP8#201204-201310

main90311-25033i1NZFE..NCP8#201311

15100GBOLT,STUD(FOR OIL PUMP)

main90109-08283i1NZFE..NCP8#200309-201506

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFE..NCP8#200309-201008

sub90919-05081

main90919-05081i1NZFE..NCP8#201106-201305

sub90919-05087

main90919-05087i1NZFE..NCP8#201305

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFE..NCP8#200309-200612

sub15104-21022

main15104-21022i1NZFE..NCP8#200612-201008

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021i1NZFE..NCP8#200309-201008

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFE..NCP8#200309-201008

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21020i1NZFE..NCP85200309-201409

main15132-21060i1NZFE..NCP81200309-201008

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFE..NCP8#200309-200405

main15133-21030i1NZFE..NCP8#200405-201008

15149GASKET, OIL STRAINER FLANGE

main16258-21030i1NZFE..NCP8#200309-201008

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9155180616

main91551-80616

9155180620

main91551-80620

9155180635

main91551-80635

91551C0830

main91551-C0830

9167180612

main91671-80612

9415180600

main94151-80600

21 parts on this diagram · 2 diagrams in section
