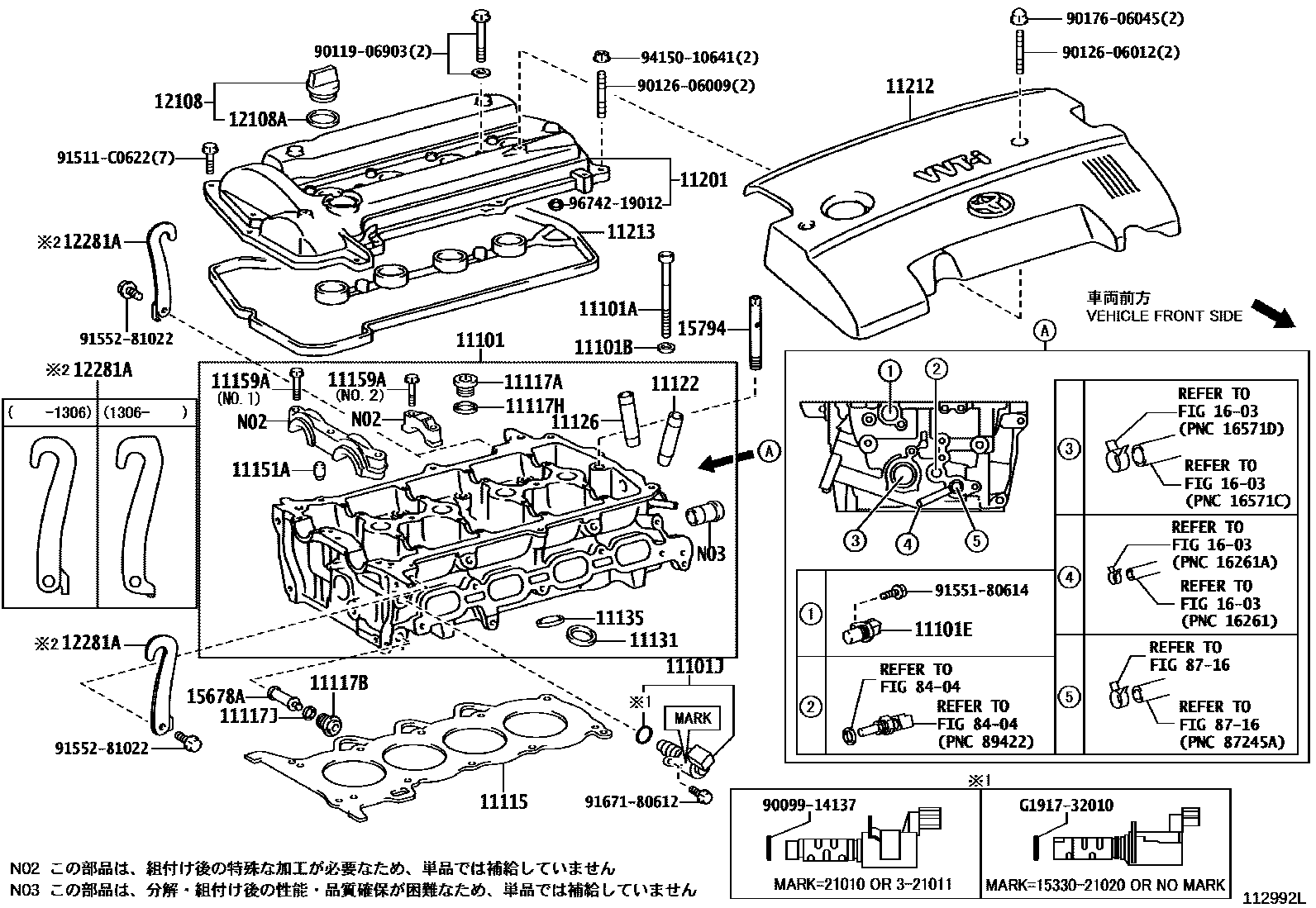

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-21033i1NZFE..NCP85201106-201110

main11101-21034i1NZFE..NCP85201110-201409

main11101-21050i1NZFE..NCP81200309-200605

main11101-21051i1NZFE..NCP81201110-201506

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02126×10i1NZFE..NCP8#200309-200605

main90910-02170×10i1NZFE..NCP8#200701-201008

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-09024×10i1NZFE..NCP8#200605-201008

11101ESENSOR, CAM POSITION

main90919-05024i1NZFE..NCP8#200309-200605

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-21011i1NZFE..NCP8#200309-200605

11115GASKET, CYLINDER HEAD

main11115-21050i1NZFE..NCP8#200309-200605

main11115-21080i1NZFE..NCP8#201110-201204

main11115-21090i1NZFE..NCP8#201204-201503

main11115-21091i1NZFE..NCP81201504-201506

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-20002i1NZFE..NCP85200605-201008

main90341-24011i1NZFE..NCP81201501

main90341-24013i1NZFE..NCP81201106-201412

11117BPLUG, W/HEAD TAPER SCREW, NO.2

main90341-14013i1NZFE..NCP8#200605-201008

11117HGASKET(FOR WATER HOLE)

main90430-20004i1NZFE..NCP85200309-200605

main90430-24246i1NZFE..NCP81200309-200605

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009i1NZFE..NCP8#200309-200605

11122BUSH, INTAKE VALVE GUIDE

main11122-21010×8i1NZFE..NCP85201106-201409

main11122-75020×8i1NZFE..NCP81200309-200605

main11123-21010×8i1NZFE..NCP85201106-201409

main11123-75020×8i1NZFE..NCP81200309-200605

11126BUSH, EXHAUST VALVE GUIDE

main11122-21010×8i1NZFE..NCP85201106-201409

main11122-75020×8i1NZFE..NCP81201106

main11123-21010×8i1NZFE..NCP85201106-201409

main11123-75020×8i1NZFE..NCP81201106

11131SEAT, INTAKE VALVE

main11131-21020×8i1NZFE..NCP8#200605-201008

main11132-21020×8i1NZFE..NCP8#200309-200605

11135SEAT, EXHAUST VALVE

main11135-21020×8i1NZFE..NCP81200309-200605

main11135-21040×8i1NZFE..NCP85201106-201409

main11136-21020×8i1NZFE..NCP81201106

main11136-21040×8i1NZFE..NCP85201106-201409

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90250-06001×2i1NZFE..NCP8#201106

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90109-06080×16i1NZFE..NCP8#200309-200605

main90119-08A29×3i1NZFE..NCP8#200309-200605

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-21050i1NZFE..NCP85200309-200605

main11201-21051i1NZFE..NCP85201211-201409

main11201-21070i1NZFE..NCP81200309-200605

11212COVER, CYLINDER HEAD, NO.2

main11212-21020i1NZFE..NCP81200309-200408

main11212-21021i1NZFE..NCP81200605-201008

main11212-21030i1NZFE..NCP85200309-200410

main11212-21031i1NZFE..NCP85200410-200509

main11212-21032i1NZFE..NCP85200510-200605

main11212-21040i1NZFE..NCP81201106

main11212-21050i1NZFE..NCP85201106-201409

11213GASKET, CYLINDER HEAD COVER

main11213-21011i1NZFE..NCP85200309-200605

main11213-21020i1NZFE..NCP81200309-200605

12108CAP SUB-ASSY, OIL FILLER

main12180-21010i1NZFE..NCP8#200309-200605

main12180-38010i1NZFE..NCP8#201106

12108AGASKET(FOR OIL FILLER CAP)

main90430-35001i1NZFE..NCP8#201106

main90430-37140i1NZFE..NCP8#200605-201008

12281AHANGER, ENGINE, NO.1

main12281-21010×2i1NZFE..NCP8#200309-200605

main12281-21090×2i1NZFE..NCP8#201306

15678AFILTER, OIL CONTROL VALVE

main15678-21010i1NZFE..NCP8#200309-200605

15794NOZZLE, CYLINDER HEAD OIL

main15794-21010i1NZFE..NCP81200309-200605

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9009914137

main90099-14137

9011906903

main90119-06903

9012606009

main90126-06009

9012606012

main90126-06012

9017606045

main90176-06045

91511C0622

main91511-C0622

9155180614

main91551-80614

9155281022

main91552-81022

9167180612

main91671-80612

9415010641

main94150-10641

9674219012

main96742-19012

G191732010

mainG1917-32010

39 parts on this diagram · 2 diagrams in section
