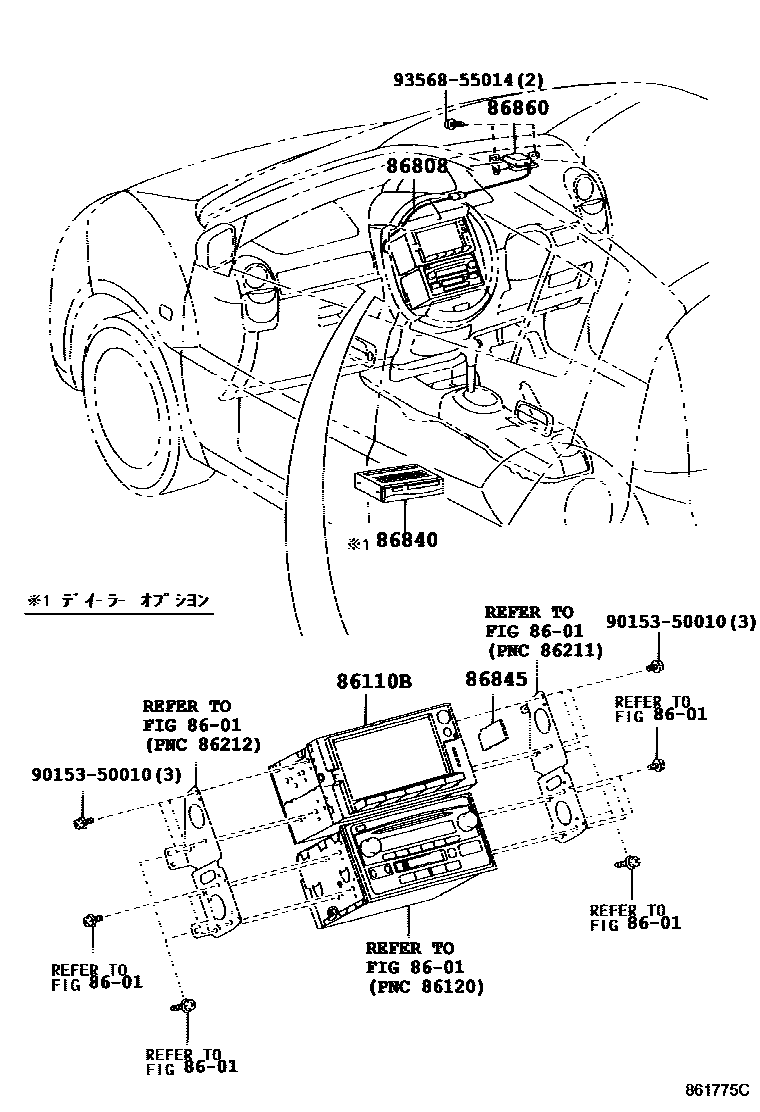

NAVIGATION & FRONT MONITOR DISPLAY

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86110BMULTI-DISPLAY ASSY

main86110-52060supersedes 86110-52090iNCP7#200209-200308

main86110-52090iNCP7#200308-200507

86808CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1

main86808-52040iNCP7#200209

86840CABLE, BOND (FOR NAVIGATION COMPUTER)

main86840-52020iNCP7#200209

86845CARD, NAVIGATION

main86845-52010iNCP7#200209-200308

main86845-52020iNCP7#200308-200507

86860ANTENNA ASSY, NAVIGATION

main86860-52070iNCP7#200209

9015350010

main90153-50010

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
