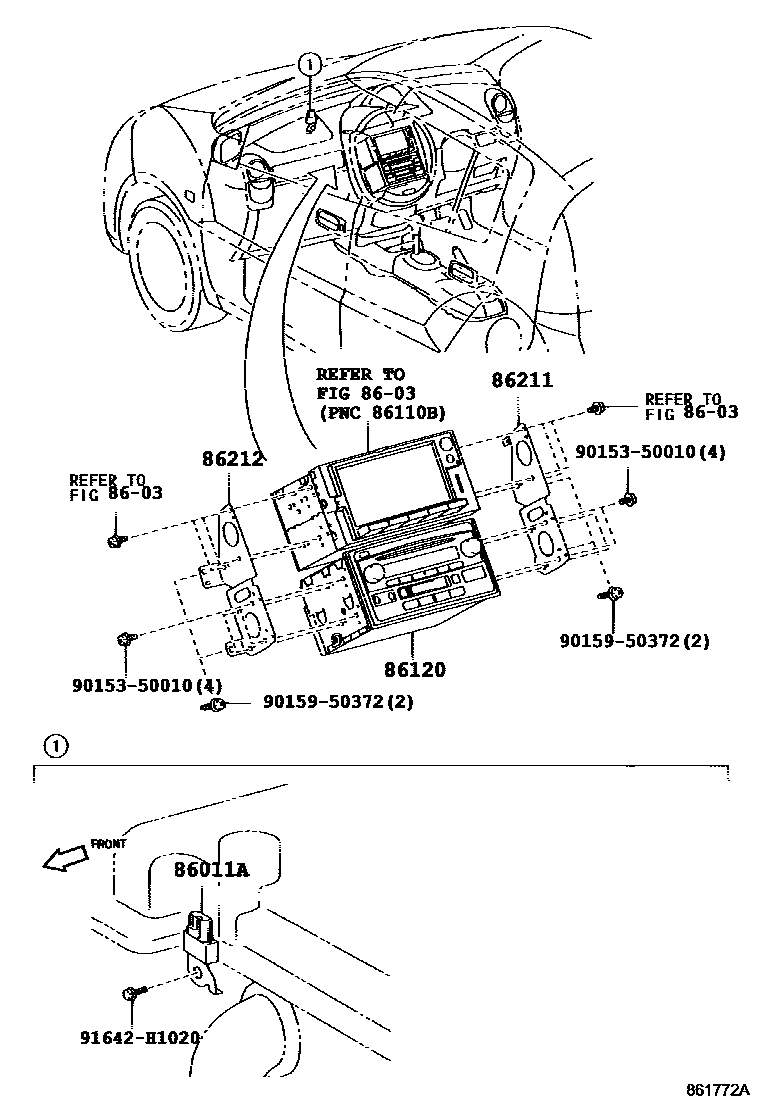

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011ACONDENSER, RADIO SETTING

main90980-04141iNCP7#200209

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-52250supersedes 86120-52251iNCP7#200209-200303

main86120-52251iNCP7#200303-200507

86211BRACKET, RADIO, NO.1

main86211-52100iNCP7#200209-200507

86212BRACKET, RADIO, NO.2

main86212-52100iNCP7#200209-200507

9015350010

main90153-50010

9015950372

main90159-50372

91642H1020

main91642-H1020

8 parts on this diagram · 2 diagrams in section
