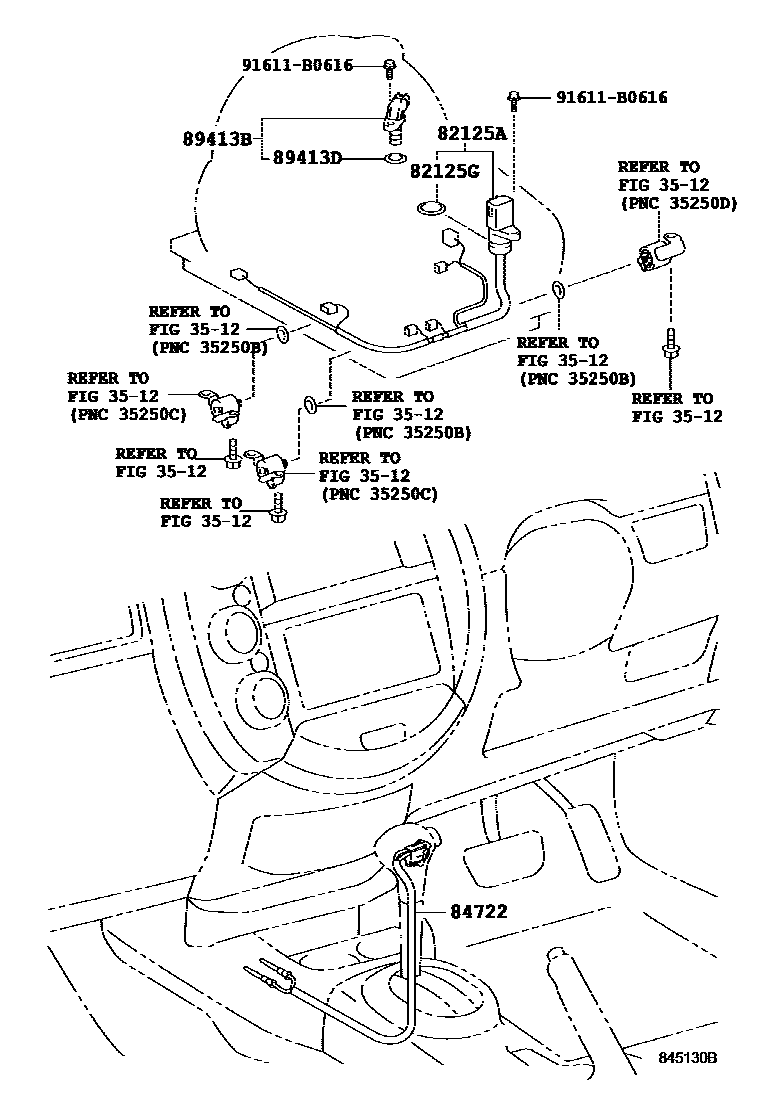

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

3512VALVE BODY & OIL STRAINER (ATM)

→ Go to FIG 35-12

82125AWIRE, TRANSMISSION

main82125-20260iNCP75200209-200507

main82125-52010iNCP70200209-200507

82125GRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNCP7#200209-200507

84722SWITCH, TRANSMISSION CONTROL

main84722-52070-C0iNCP7#200209-200507

BLACK,TRIM2#

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-32010iNCP7#200209-200507

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNCP7#200209-200507

91611B0616

main91611-B0616

7 parts on this diagram · 2 diagrams in section
