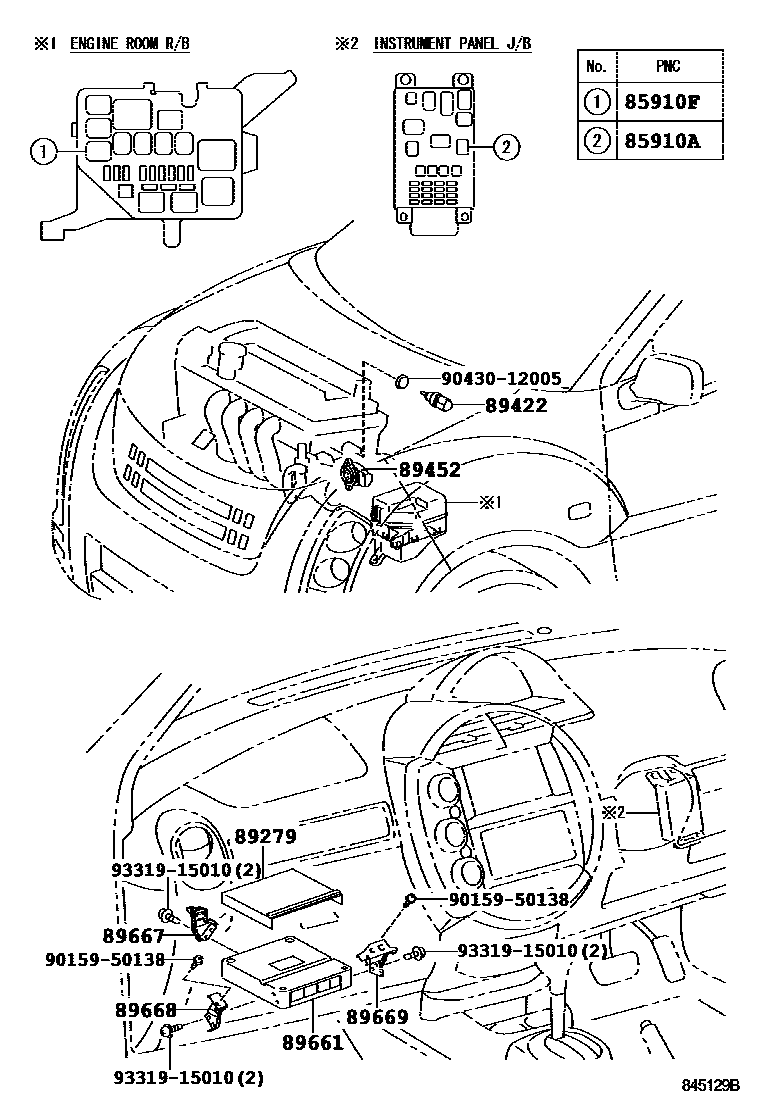

ELECTRONIC FUEL INJECTION SYSTEM

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iNCP7#200209-200507

85910FRELAY, COMPUTER (FOR EFI)

main90987-02022iNCP7#200209-200507

89279COVER, ENGINE CONTROL COMPUTER

main89279-52100iNCP7#200209

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-16010iNCP7#200209-200507

main89422-22030iNCP7#200209-200507

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-20130iNCP7#200209-200507

89661COMPUTER, ENGINE CONTROL

main89661-5C080iNCP70200209

main89661-5C090iNCP75200209

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-52130iNCP7#200209

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-52140iNCP7#200209

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-52090iNCP7#200209

9015950138

main90159-50138

9043012005

main90430-12005

9331915010

main93319-15010

12 parts on this diagram · 1 diagram in section
