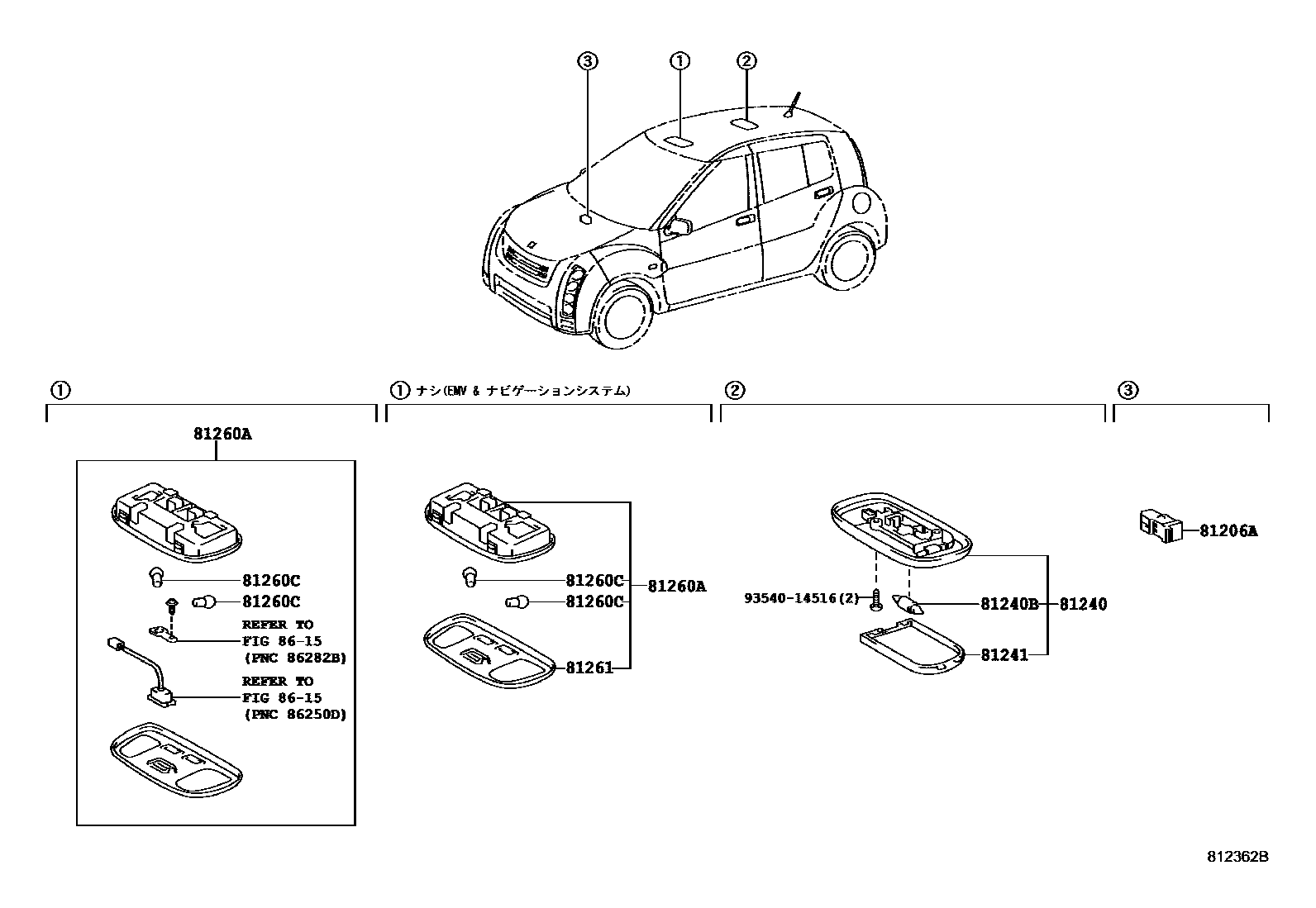

INTERIOR LAMP

81206ALAMP SUB-ASSY, CONSOLE BOX

main81206-52010iNCP7#200209-200507

81240LAMP ASSY, ROOM, NO.1

main81240-12060-P0iNCP7#200209-200507

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNCP7#200209

81241LENS, ROOM LAMP, NO.1

main81241-12020iNCP7#200209

81260ALAMP ASSY, MAP

main81260-22180-B3supersedes 81260-52010-B0iNCP7#200209-200507

81260CBULB(FOR MAP LAMP)

main90981-12020×2iNCP7#200209

81261LENS AND COVER, MAP LAMP

main81261-32081-B3iNCP7#200209

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9354014516

main93540-14516

9 parts on this diagram · 1 diagram in section
