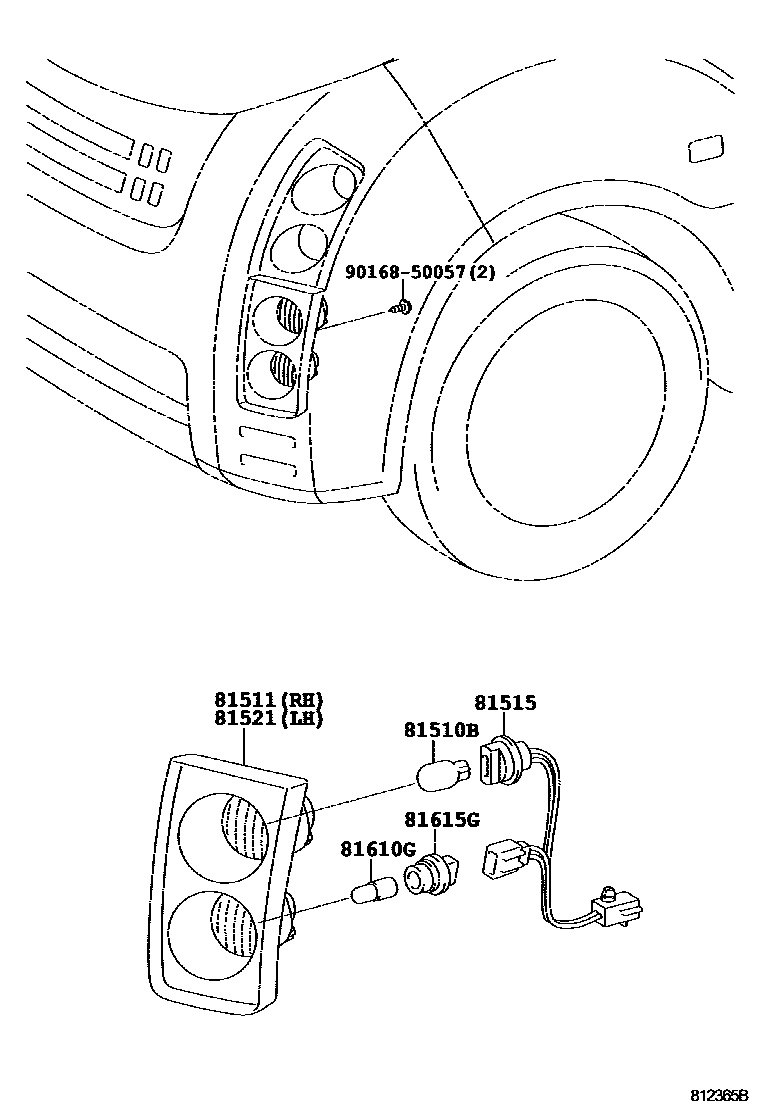

FRONT TURN SIGNAL LAMP

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15013×2iNCP7#200209

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-52020iNCP7#200209

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81515-52020×2iNCP7#200209

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-52020iNCP7#200209

81610GBULB(FOR CLEARANCE LAMP)

main99132-12050×2iNCP7#200209

81615GSOCKET & WIRE, CLEARANCE LAMP

main81615-12590×2iNCP7#200209

9016850057

main90168-50057

7 parts on this diagram · 1 diagram in section
